Product description

• Lectrosonics SRc Dual-Channel Slot-Mount ENG Receiver (A1: 470.100 to 537.575 MHz) The SRc Dual-Channel Slot-Mount ENG Receiver from Lectrosonics consist of two separate receivers built into a single, ultra-compact housing with adapters for video-camera-receiver slots and for stand-alone use. They can be used when paired with a transmitter & microphone (sold separately) in various environments for ENG (Electronic News Gathering), EFP (Electronic Field Productions) and other audio applications. Each receiver features Digital Hybrid Wireless technology that provides compandor-free audio quality and compatibility with other wireless systems. The RF performance is stable over a wide temperature range, making the receiver perfectly suited in rough environmental conditions. The front panel has a menu-driven LCD interface and four membrane switches which are used to view and alter settings. In addition, the LCD window displays the pilot-tone indicator, diversity activity, RF level, audio level, and transmitter battery status for both receivers. Furthermore, a built-in spectrum analyzer scans across the tuning range of the receiver and displays a histogram of RF activity across the band. Areas of RF activity are easily recognizable. The two internal receivers can be operated separately and both have switching, antenna-combining diversity, or in tandem with ratio-diversity reception. Finally, a variety of output adapters and mounting options are available for camera-slot operation. The receivers are powered from an external 7 to 18 VDC source.
  • Fits camera "slots," Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
  • Dual-receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
  • Digital Hybrid Wireless with compatibility modes for use with other transmitters
  • Tracking front-end filters for high performance in tough RF environments
  • LCD with RF spectrum scanning
  • SmartSquelch DSP-controlled, noise-based filtering and squelch
  • DSP-based pilot tone for squelch control
  • IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
  • SmartTune operation for quick and confident frequency selection
• 2 x Lectrosonics SSM Digital Hybrid Wireless Miniature Transmitter (A1: 470.100 to 537.575 MHz) The SSM from Lectrosonics is a miniature Digital Hybrid Wireless Transmitter with selectable frequencies across a maximum tuning range of 76.7 MHz and has selectable 25 or 50 mW RF output power. It can be used in applications where concealment in costuming is required or any other production such as for live stage, theater, houses of worship, reality TV, and more. The SSM features selectable frequencies in 100 kHz or 25 kHz steps yielding a total of 3,072 available frequencies across three standard frequency blocks. Its lithium-ion battery provides power and sits in a stainless-steel battery door that latches closed and cannot be jarred open accidentally. The servo bias input that is built into the transmitter accepts mic or line level signals and uses gain adjustments in 1 dB steps. The LED indicators on the membrane keypad allow you to monitor precise gain adjustments and settings. A built-in limiter in the preamp, handles signal peaks over 30 dB. This provides you with the maximum signal to noise ratio and minimum distortion for input, but still provides protection against input overloads. The SSM is compatible with earlier analog Lectrosonics receivers IFB, and some other receivers, from manufacturers that utilize the DSP emulation mode, which is selectable in the LCD menu. The SSM transmitter housing is constructed of machined aluminum and has a hard, black electroless nickel finish called ebENi.
  • The SSM transmitter tunes across a range of over 76 MHz. This tuning range covers three standard Lectrosonics frequency blocks
  • The transmitter operates from a 3.7V rechargeable battery that will provide about four hours of operation per charge
  • The factory-supplied battery charger provides a folding NEMA 2-prong plug, and will operate from 100-240 VAC sources. The LED glows red during charging and turns green when the battery is fully charged
  • The LCD is a numeric-type Liquid Crystal Display with screens for adjusting output power, frequency, audio level, low frequency audio roll-off, and various modes and options
  • The antenna is a flexible whip made of galvanized steel, permanently attached to the transmitter to prevent damage from heavy use. The IR port is capped with a translucent dome material to broaden the reception angle. The input jack is a rugged 3-pin LEMO connector with a threaded locking sleeve
  • An infrared sync port on the SSM allows for quick setup with compatible receiver systems. A micro-B USB port makes it possible for firmware updates in the field as advanced features are added in the future
  • The SSM responds to remote commands for frequency, audio level, sleep modes, and other settings from the RM remote unit or 3rd party smartphone apps
• Lectrosonics SRSUPER Bottom-Plate Adapter The SRSUPER from Lectrosonics is a bottom-plate adapter for SR receivers used in SuperSlot docks. It includes the end plate adapter, blue bezel, gasket, and hardware set. It can be used in cameras with a SuperSlot Docking System and makes internal connections with a unislot connector.
• 2 x Sanken COS-11D Omni Lav Mic, Normal Sens, Hardwired LEMO for Lectrosonics Transmitter (Black) The black COS-11D Omni Lavalier Mic, Normal Sens, with Hardwired LEMO 3-pin Connector for Lectrosonics Wireless Transmitter, by Sanken, is for capturing audio. It is designed to be used for various applications such as broadcast TV, theater, film, and more.Delivering an audio performance that meets the standards of modern digital wireless microphone systems, the COS-11D addresses the noise issues associated with digital to ensure a pristine audio signal. Plus, the wide frequency response ensures accurate, transparent audio reproduction; and its omnidirectional polar pattern provides a generous pickup area while minimizing feedback and off-axis noise.Furthermore, an improved water-resistant mesh screen protects against humidity, perspiration, makeup, bad weather, etc. This COS-11D terminates in a LEMO 3-pin connector and is wired for use with Lectrosonics SSM transmitters. A metal windscreen, holder clip, rubber mount, and plastic case are included.
  • Overcomes digital transmitter RFI
  • Water-resistant
  • Durable design
  • Clear and rich sound
  • Improved moisture resistance
  • Original vertical diaphragm design
  • Optimized for the human voice

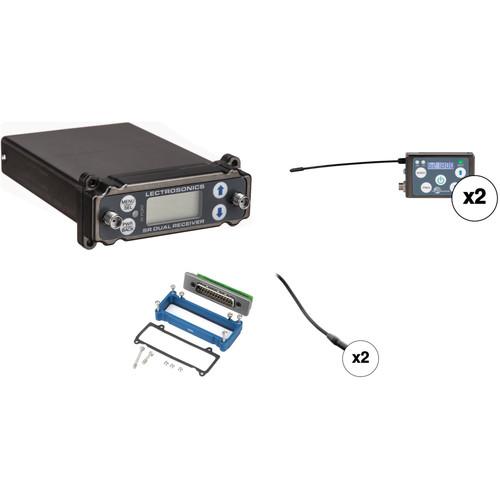

• SRc Dual-Channel Slot-Mount ENG Receiver (A1: 470.100 to 537.575 MHz) rqdatbcftwwctqvvxqefdvsvqxa
• Adjustment Tool
• 2 x Antennas
• Limited 1-Year Warranty

• 2 x SSM Digital Hybrid Wireless Miniature Transmitter (A1: 470.100 to 537.575 MHz)

• SRSUPER Bottom-Plate Adapter

• 2 x Sanken - COS-11D Omni Lav Mic, Normal Sens, Hardwired LEMO for Lectrosonics Transmitter (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Lectrosonics SRc Dual-Channel Slot-Mount ENG Receiver (A1: 470.100 to 537.575 MHz)

  Operating Frequencies	A1: 470.100 to 537.575 MHz
  Frequency Selection Steps	Selectable; 100 or 25 kHz
  Type of Receiver	Dual conversion, superheterodyne
  IF Frequency	Ch.1: 248.450 MHz and 350.000 kHz Ch.2: 243.950 MHz and 250.000 kHz
  Frequency Stability	±0.001 %
  Front End Bandwidth	20 MHz @ -3 dB
  Sensitivity	20 dB SINAD: 1.0 uV (-107 dBm), A weighted 60 dB Quieting: 2.2 uV (-100 dBm), A weighted
  Squelch Quieting	Greater than 100 dB typical
  AM Rejection	Greater than 60 dB, 4 uV to 1 V
  Modulation Acceptance	85 kHz
  Image and Spurious Rejection	85 dB
  Third Order Intercept	0 dBm
  Diversity Method	SmartDiversity phased antenna combining or Ratio Diversity using both receivers for a single audio channel
  FM Detector	Digital Pulse Counting Detector operating at 250 and 350 kHz
  RF Spectrum Analyzer	Coarse and fine scanning modes for RF spectrum site survey
  Antenna Inputs	50 Ohms SMA female connectors
  Audio Output Connectors	Interchangeable D connector adapters for camera slot interfaces Dual TA3 male (mini XLR) balanced output adapter Balanced output adapter with fixed cables Front-panel TA5M with two balanced outputs (5P version)
  Audio Output Level	Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output is 6 dB lower
  Audio Channel Crosstalk	-80 dB or better
  Front Panel Controls and Indicators	Sealed panel with membrane switches LCD monitors pilot tone; antenna phase, receiver battery level; transmitter battery status; audio level, RF level
  Audio Test Tone	1 kHz, -50 dBu to +5 dBu output (bal); 1% THD
  Transmitter Battery Type Selection	9 V alkaline, 9 V lithium, AA alkaline, AA lithium, NiMH
  Phase Invert	Audio-output phase normal or inverted
  Compatibility Modes	HYB native Digital Hybrid mode M.3 non-Lectrosonics (call factory) 200 Lectrosonics 200 Series 100 Lectrosonics 100 Series HYB/TB Digital Hybrid w/ Talkback M.7 non-Lectrosonics (call factory) M.6 non-Lectrosonics (call factory) IFB Lectrosonics IFB
  SmartNR (Noise Reduction)	Off, Norman, Full modes (available in Digital Hybrid mode only)

  Frequency Response	32 Hz to 20 kHz (+/- 1 dB)
  THD	0.15% (system) typical in Digital Hybrid mode
  Input Dynamic Range	125 dB (with full Tx limiting)
  Rear Panel Controls	Audio-output connectors External DC input
  Powering and Current Consumption	Min. 7 V to max. 18 VDC; 2.2 W 125 mA at 18 VDC 180 mA at 12 VDC 295 mA at 7 VDC
  Runtime with SRBATTSLED Adapter	7.2 V, 2200 mAh "L" style battery will typically provide about 11 hours of operation
  Transmitter Battery	Level Tracking: LCD display with battery icon or timer readout
  Operating Temperature	-4 to 122°F / -20 to +50°C
  Dimensions (W x H x D)	2.92 x 1.22 x 4.93" / 74 x 31 x 125 mm
  Weight	7.9 oz / 225 g with SREXT adapter

  Box Dimensions (LxWxH)	9.9 x 7.85 x 2.95"

• 2 x Lectrosonics SSM Digital Hybrid Wireless Miniature Transmitter (A1: 470.100 to 537.575 MHz)

  Operating Frequency	A1: 470.100 to 537.575 MHz
  Frequency Selection Steps	Selectable; 100 kHz steps or 25 kHz
  RF Power Output	Switchable; 25 or 50 mW
  Pilot Tone	25 to 32 kHz; 5 kHz deviation (Digital Hybrid mode)
  Frequency Stability	± 0.002%
  Deviation	± 75 kHz max. (Digital Hybrid mode)
  Spurious Radiation	60 dB below carrier
  Equivalent Input Noise	-120 dBV, A-weighted
  Input Level	Nominal 2 to 300 mV, before limiting Greater than 1 V maximum, with limiting
  Input Impedance	Mic: 300 or 4.5 kOhms; selectable Line: Greater than 100 kOhms
  Input Limiter	DSP controlled, dual envelope "soft" limiter with greater than 30 dB range
  Gain Control Range	44 dB; digital control
  Modulation Indicators	Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation

  Frequency Response	35 Hz to 20 kHz (+/-1 dB)
  Low Frequency Roll-Off	-12 dB/octave; 70 Hz
  Total Harmonic Distortion (THD)	0.2% (typical)
  Signal to Noise Ratio	At Receiver Output: SmartNR Off: No limiting 103.5, w/limiting 108.0 SmartNR Normal: No limiting 107.0, w/limiting 111.5 SmartNR Full: No limiting 108.5, w/limiting 113.0 Note: The dual envelope "soft" limiter provides the handling of transients using variable attack and release time constants. Once activated, the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver output range, thus reducing the measured figure for SNR without limiting by 4.5 dB
  Controls	Side-panel membrane switches with LCD interface for power on/off and all setup and configuration controls Responds to remote commands from smartphones with 3rd party app.
  Audio Input Jack	LEMO 00 series 3-pin
  Antenna	Galvanized steel, flexible wire
  Batteries	Lithium-ion 3.7 V 1000 mAH NP50 battery pack
  Battery Life	6 hours per charge
  Emission Standard	180KF3E
  Dimensions (L x W x H)	2.3 x 1.5 x 0.56" (58.4 x 38 x 14.2 mm)
  Weight	2.3 oz (65.2 g) including lithium battery pack

  Box Dimensions (LxWxH)	9.9 x 7.9 x 3.0"

• Lectrosonics SRSUPER Bottom-Plate Adapter

  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	4.3 x 1.0 x 0.4"

• 2 x Sanken COS-11D Omni Lav Mic, Normal Sens, Hardwired LEMO for Lectrosonics Transmitter (Black)

  Directivity	Omnidirectional
  Transducer	Self-polarized condenser
  Frequency Response	50 Hz to 20 kHz
  Sensitivity	17.8 mV / Pa (-35 dB, 0 dB = 1 V / Pa)
  Equivalent Noise Level	28 dBA, A-weighted
  Output Impedance	700 Ohms
  Maximum Sound Pressure Level (SPL)	123 dB
  Power Requirements	+3 to +10 V
  Current Consumption	Less than 0.5 mAh
  Output Connectors	LEMO 3-pin
  Cable Length	5.9' (1.8 m)
  Dimensions (LxDiameter)	0.63 x 0.15" (16.1 x 4.0 mm)
  Weight	0.84 oz (24.0 g)

  Box Dimensions (LxWxH)	4.8 x 3.1 x 1.3"
