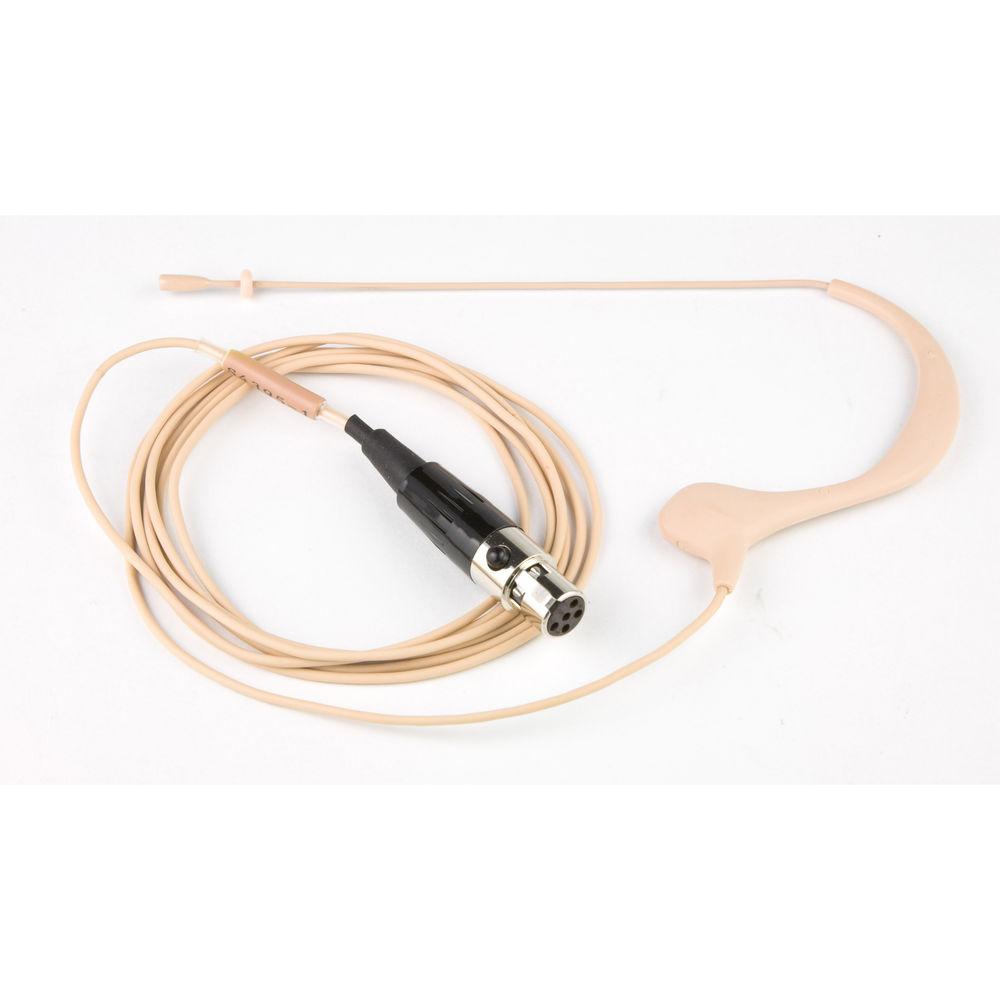

Product description Designed to mount comfortably to your ear, the HM172 from Lectrosonics is an omnidirectional microphone with a 5-pin TA5F connector suitable for use with Lectrosonics transmitters. Its neutral profile and comfortable, out-of-the-way design renders the microphone useful for many applications, such as lectures, theatrical presentations, and broadcast studio operations.
With a frequency response of 50 Hz to 20 kHz and the ability to withstand sound pressure levels of 125 dB, the microphone is aptly suited for the human voice. It operates at a bias voltage of 2 to 9V.
Its cable is designed to run behind your neck for better concealment, while a perspiration ring on its boom helps keep the capsule dry in many situations. Both the earpiece and the boom are flexible, allowing you to comfortably position the microphone to garner the maximum amount of gain while simultaneously minimizing breath noise.
Included with the microphone are two windscreens and a cable retention clip. Also provided is a replaceable HF peak cap to curtail energy at the highest points of the frequency range, thus helping with excessive sibilant information and other vocal mishaps. - Key Features
-
- Lightweight at 0.3 oz
- Adjustable boom arm
- Low-visibility design
- Wide frequency range
- High SPL
- Replaceable HF peak cap
- Adjustable "drip ring"
- 5-pin connector for Lectrosonics wireless transmitters

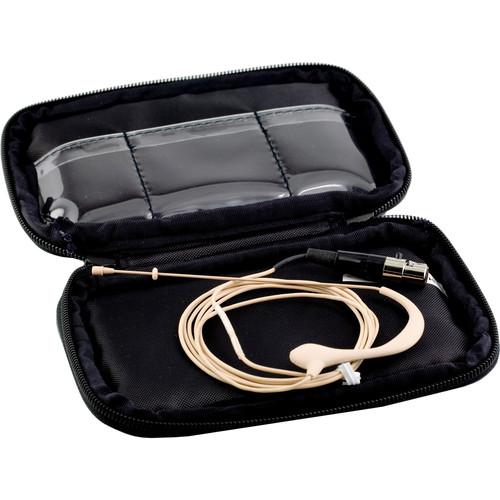

In the Box Lectrosonics HM172 Omnidirectional Earset Microphone with 5-Pin Connector 2 x Foam Windscreens Cable Clip HF Peak Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics HM172 Omnidirectional Earset Microphone with 5-Pin Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics HM1725P Specs | Color | Beige | | Type | Electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz to 20 kHz | | Sensitivity | 7 mV/Pascal | | Maximum SPL | 125 dB | | Signal-to-Noise Ratio | 64 dB @ 94 dB SPL | | Power Requirements | 2 to 9 V | | Output Connector | 1 x TA5F 5-pin female | | Wiring | Red: Bias
Yellow: Audio
Green: Ground (shield) | | Cable Length | 54.0" / 137.2 cm | | Weight | 0.3 oz / 9.0 g (without connector) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.8 x 4.3 x 1.4" |
