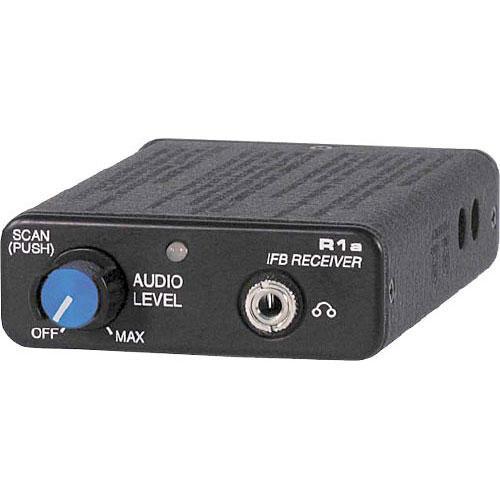

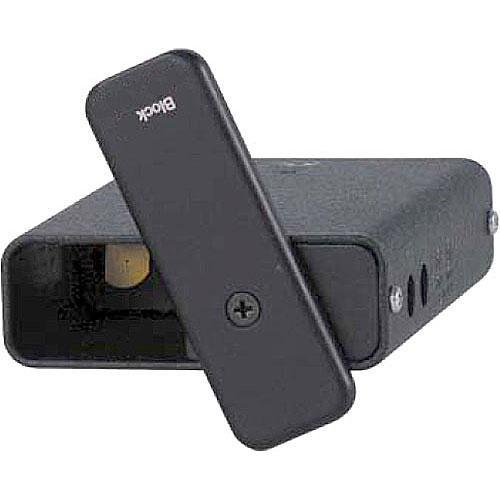

Product description The Lectrosonics IFB-R1a is a frequency-agile UHF wireless IFB beltpack monitoring receiver, housed in a durable slim-profile case, and capable of accessing 256 frequencies available from a selection of factory-programmed frequency blocks. The IFB-R1a is equipped with an internal microprocessor, allowing for very reliable reception and a set of 5 programmable setup memories, a multi-function control button, and a tricolor LED indicator. The IFB-R1a is designed for professional use in broadcast, motion picture, theater, and stage applications where extended operating range and audio clarity are essential. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency. - Frequency-agile UHF wireless beltpack receiver with 5-frequency programmable memory and dual high and low level frequency scan
- Frequency coverage in the 537.6 to 793.5MHz range (608 - 614MHz not included)
- Dual high and low level frequency scan with inverse low and high sensitivity search, prevents intermodulation and distortion
- 9 factory-available frequency blocks with 256 selectable frequencies per block and 0.1MHz channel spacing
- Crystal-controlled phase locked loop frequency control for reliable reception
- Microprocessor-controlled design of frequency selection, programming and audio level via multi-function control knob
- Tricolor LED indicator with power on, channel number, scan and low battery indication

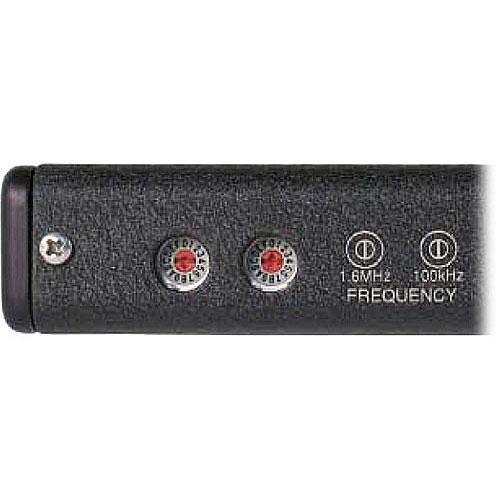

- Two easy-access rotary hex switches for manual operating frequency setting
- Auto-sensing and control of mono headphone plug, accepts multiple headphone impedances
- Durable all-metal housing

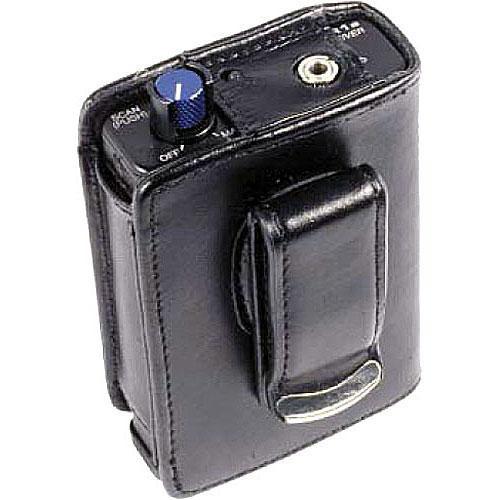

In the Box Lectrosonics IFB-R1a UHF Belt-Pack Receiver Leather Carrying Pouch 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics IFB-R1a UHF Belt-Pack Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics IFBR1A-19 Specs | Transmitter Type | Not Applicable | | Receiver Type | FM Modulation with Crystal-Controlled Phase Locked Loop | | RF Frequency Range | 537.6 - 608MHz
614 - 793.5MHz In 9 factory-ready blocks with 256 frequencies per block and 26MHz wide band. | | Transmit Power | Not Applicable | | Microphone Input | No | | Antenna Type | Headphone Cable | | Signal-to-Noise Ratio | 95dB, A-weighted | | Local Headset Output | 1Vrms into 50 Ohms, min. | | Frequency Response | 100Hz - 10kHz, +/-1dB | | Power Requirements | 9V alkaline battery lasts about 8 hours
9V lithium battery lasts about 20 hours | | Power Consumption | 60 mA | | Battery Life | 8 hrs. | | Dimensions | 3.6 x 2.4 x 0.8" (91.4 x 61 x 20.3mm) | | Weight | 7.3 oz (207g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.7 x 8.0 x 3.0" |
