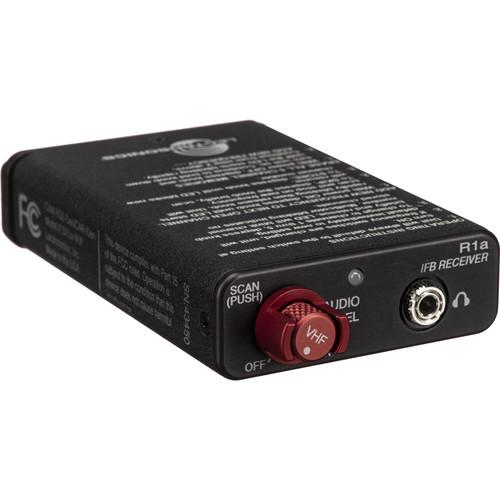

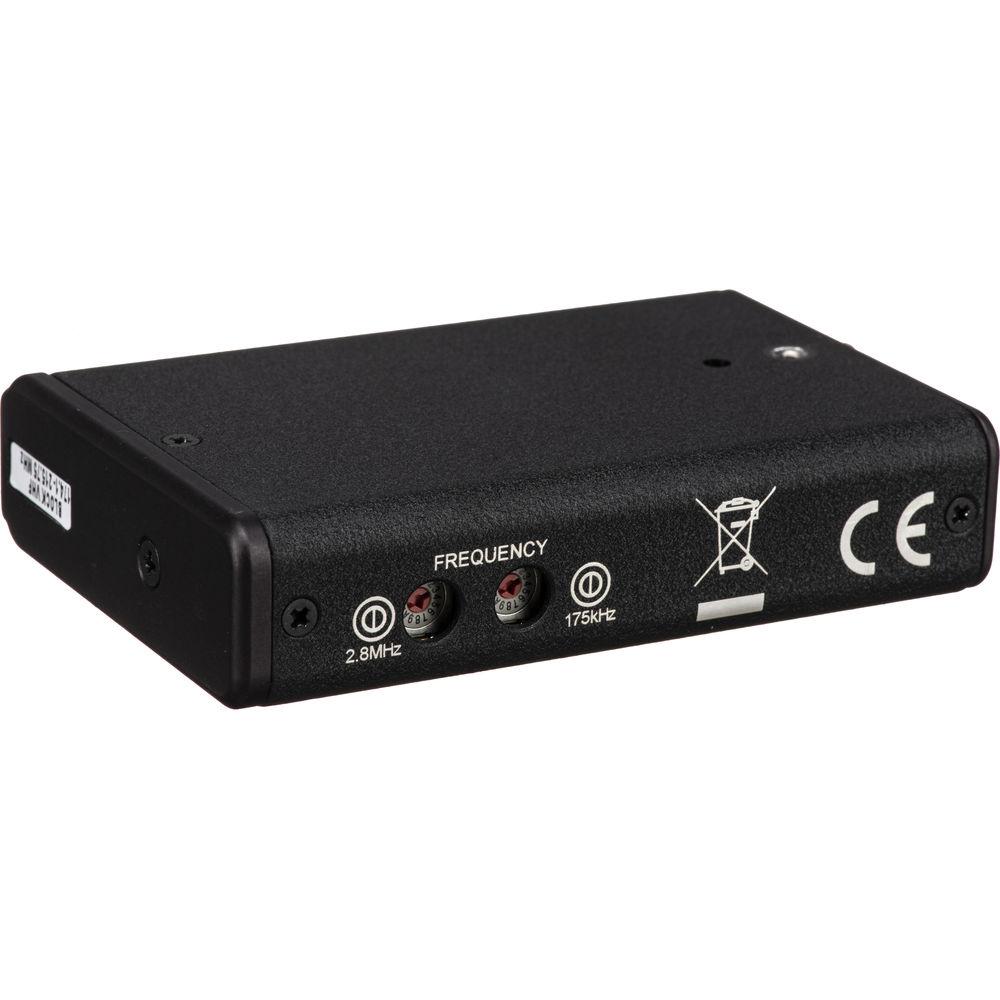

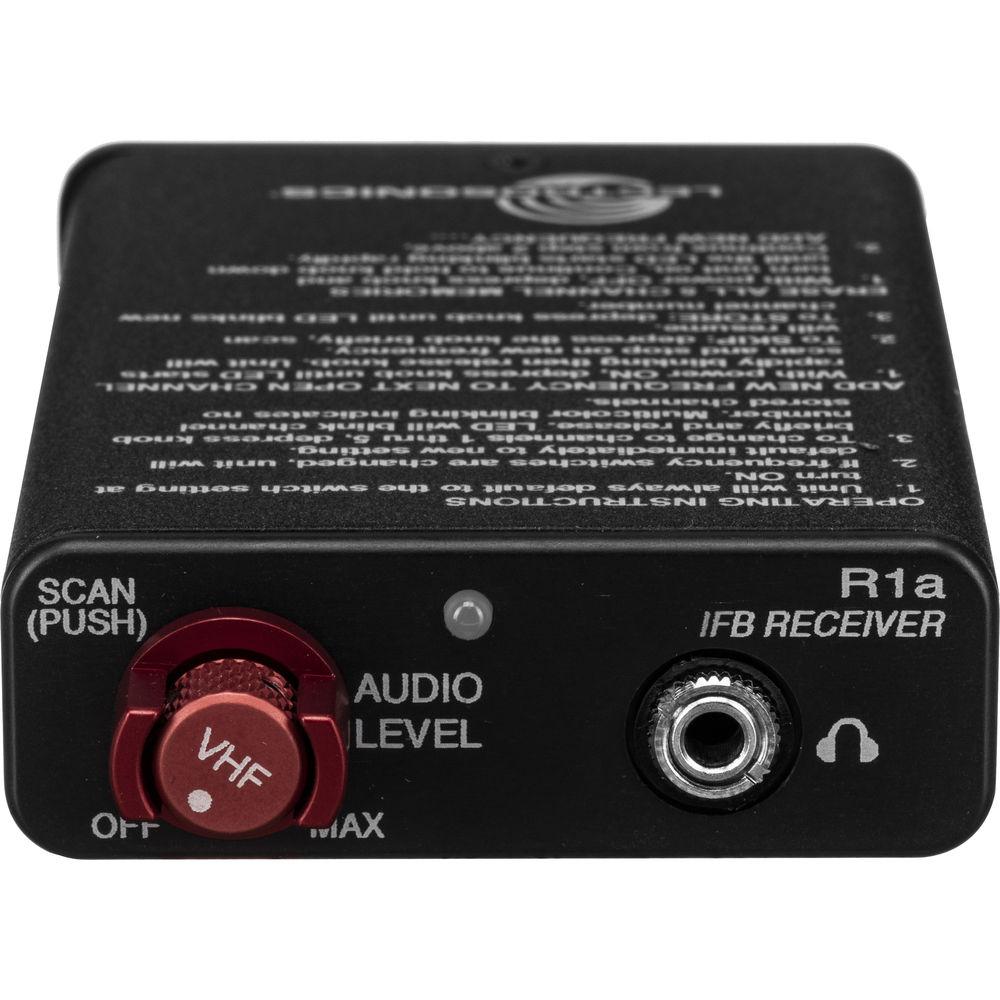

Product description The IFBR1a-VHF from Lectrosonics is a multi-frequency wireless beltpack IFB (Interruptible Fold Back) receiver that can be used for talent cueing and crew communication in broadcast and motion picture production. In addition, the IFB receiver provides simplicity and flexibility in a package that is intuitive for untrained users to operate. Featuring two rotary-control switches on the side panel, the IFBR1a-VHF receiver can be programmed with up to five additional frequencies, and stored in the memory using the scan mode. If more than one frequency is stored in the receiver, the operator can scroll through all stored frequencies by simply pressing the volume knob. Furthermore, it is built durable in a machined aluminum housing, and has a battery door that stays permanently attached when opened. It is powered by a single 9V alkaline battery, and will run for 8 hours, or up to 20 hours using a 9V lithium battery. Finally, the receiver will drive a wide variety of earbuds, headphones and induction neck loops at substantial levels with loads from 16 to 600 ohms. An Allen wrench is included to adjust the frequencies manually, and a leather carrying case is also included. In the Box Lectrosonics IFBR1a-VHF Multi-Frequency Beltpack IFB Receiver (174.100 to 215.750 MHz) Allen Wrench Leather Pouch with Integral Belt Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics IFBR1a-VHF Multi-Frequency Beltpack IFB Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics IFBR1A-VHF Specs | Operating Frequency | 174.100 to 215.750 MHz | | Channel Frequencies | 239 | | Channel Spacing | 175 kHz | | Frequency Control | Crystal controlled phase locked loop | | Sensitivity | 1 uv (20 dB SINAD) | | Signal to Noise | 95 dB A-weighted | | Squelch Quieting | 90 dB | | AM Rejection | 50 dB, 10 uv to 100 mv | | Modulation Acceptance | ±20 kHz | | Spurious Rejection | Greater than 70 dB | | Third Order Intercept | 0 dBm | | Frequency Response | 100 Hz to 10 kHz, (±1 dB) | | Pilot Tone | 29.997 kHz, 4.5 kHz deviation (fixed crystal controlled) | | Headphone Out | Audio: 1 Vrms into 50 ohms minimum | | Antenna | Headphone cable | | Programmable Memory | 5 frequencies | | Front Controls | Single knob controls Audio Output Level, Power On, Programming, and Scan Frequency selection | | LED Indicators | Tricolor LED for power on, blinks indicating channel number, blinks fast during scan, and turns yellow or red for low battery | | Power Requirements | Single 9 V alkaline battery for approximately 8 hours operation
Single 9 V lithium battery for approximately 20 hours operation | | Power Consumption | 60 mA | | Dimensions (L x W x H) | 3.6 x 2.4 x 0.8" (9.1 x 6.1 x 2.0) | | Weight | 7.3 oz (207 g) with battery | | | | Package Weight | 1.02 lb | | Box Dimensions (LxWxH) | 9.9 x 7.9 x 2.95" |
