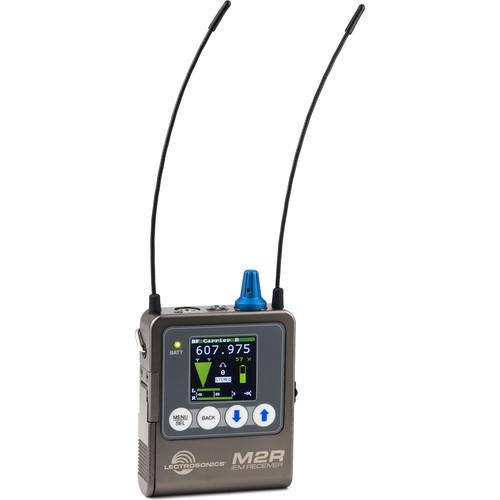

User Manual for Lectrosonics M2R Digital IEM IFB Receiver Click to enlarge the picture
Contents of the user manual for the Lectrosonics M2R Digital IEM IFB Receiver
- Product category: Receivers Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Receivers
|
User manual for the Lectrosonics M2R Digital IEM IFB Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|
Product description The M2R Digital IEM/IFB Receiver from Lectrosonics is a wireless receiver that employs antenna diversity and covers the UHF frequencies of 470.1 to 607.975 MHz. The receiver's headphone jack is fed from a high-quality stereo amplifier and can be used when paired with an M2T wireless transmitter (sold separately) for driving headphones or earphones in live stage, theater, and performance applications. The receiver can select from stereo, mono from left channel only, or mono from right channel only, giving the unit flexibility depending on its intended application. An intuitive mixing interface and high-resolution, color LCD on the beltpack receiver provide performing artists and monitor engineers with a comfortable and confident user experience. Furthermore, the receiver's built-in, antenna-diversity switching provides seamless audio during operation, and the 24-bit digital audio stream delivers high-resolution sound quality with a wide dynamic range, a low-noise floor, and solid stereo imaging. In addition, the M2R runs on two AA batteries for an operating time of over 4 hours (with alkaline batteries) and 7 hours (with lithium batteries). In the Box Lectrosonics M2R Digital IEM/IFB Receiver (470.1 to 607.975 MHz) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics M2R Digital IEM IFB Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics M2R Digital IEM Specs | Frequency | 470.1 to 607.975 MHz | | Modulation Type | 8 PSK with forward error correction, spread spectrum | | Occupied Bandwidth | 200 kHz | | Latency | Digital Source: 1.0 ms
Analog Source: <1.4 ms | | Audio Inputs | Selectable: 4 x analog audio ins or Dante | | | | Frequency Response | 20 Hz to 15 kHz, -3 dB | | Total Harmonic Distortion (THD) + N | 0.15% (1 kHz @ -10 dBFS) | | Dynamic Range | >95 dB weighted | | Adjacent Channel Isolation | >85 dB | | Diversity | Type: Switched antenna | | | | Earphone | 250 mW at 32 Ohms | | Power Requirements | 2 x AA batteries (3.0 V) | | Battery Life | 2 x alkaline AA (4 hours)
2 x lithium AA (7 hours) | | Power Consumption | 1 W | | Dimensions (H x W x D) | 3.0 x 2.4 x 0.625" (76.2 x 60.3 x 15.9 mm)
Height is 4.7" (120 mm) with knob | | Weight | 9.14 oz (259 g) with batteries | | | | Package Weight | 0.975 lb | | Box Dimensions (LxWxH) | 13.4 x 5.45 x 3.45" |
