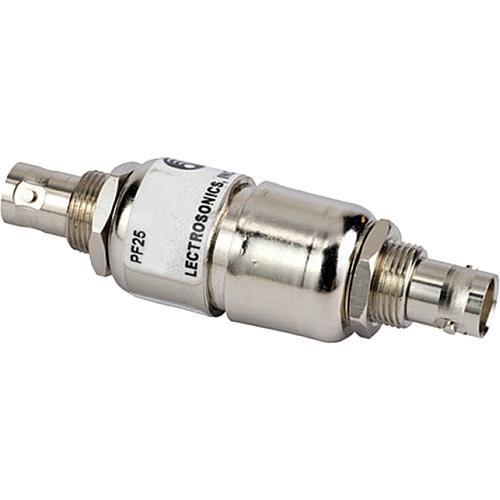

Product description The Lectrosonics PF25 is a passive filter that's compatible with Venue series receivers and UMC16B multicouplers operating in frequency block 26. It's a simple BNC adapter that you insert into a coaxial line between the antenna and the receiver or multicoupler. Just like the front-end filters in your system, the PF25 will add an extra layer of protection helping to reduce interference and intermodulation. If you're using a remote antenna amplifier, the PF25 is designed to bidirectionally pass phantom power to operate the device.Whether you're using just a single receiver or multicoupler, or a more complex set up with an antenna distribution system, you can benefit from using a PF25 passive filter. - Surface Acoustic Wave (SAW) Filter
- Helps to suppress unwanted noise and reduce interference
- Bidirectional Circuitry
- Passes DC phantom power to operate remote antenna amplifiers, while continuing to pass the RF signal in the opposite direction
- Made in the USA
- Built with a rugged metal housing in Rio Rancho, New Mexico
In the Box Lectrosonics PF25 Passive Filter for Receiving Antennas (Block 26) Note: 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics PF25 Passive Filter for Receiving Antennas in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics PF25-26 Specs | Filter Type | SAW (surface acoustic wave) | | Frequency | Block 26 | | Power Capacity | 350 mA max. | | Input Impedance | 50 Ohm BNC | | Output Impedance | 50 Ohm BNC | | Weight | 2.7 oz (76 grams) | | Dimensions | 2.97 x 0.84" (Length x Diameter)75 x 21 mm (Length x Diameter) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 1.9 x 1.1 x 0.1" |
