Product description Hands-on Review: Lectrosonics Portable Digital Recorder Read More - Lectrosonics Portable Digital Recorder

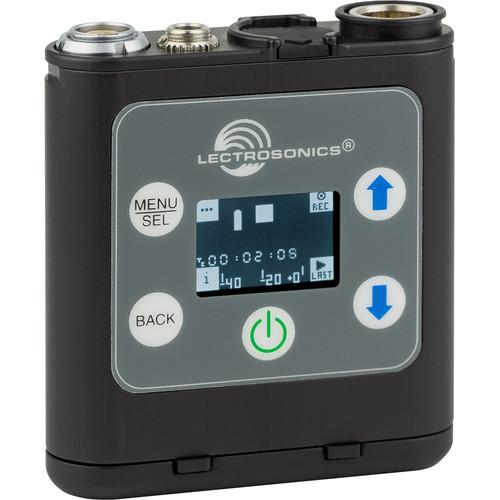

Designed for capturing high-quality digital audio that can synchronize with timecode, the PDR from Lectrosonics is a digital recorder which captures industry-standard 24-bit/48 kHz audio in WAV (BWF) formats. It is particularly useful in situations when using a wireless microphone is impractical, such as when distance to a wireless receiver is too far, or when the quality of wireless recording simply won't cut it.

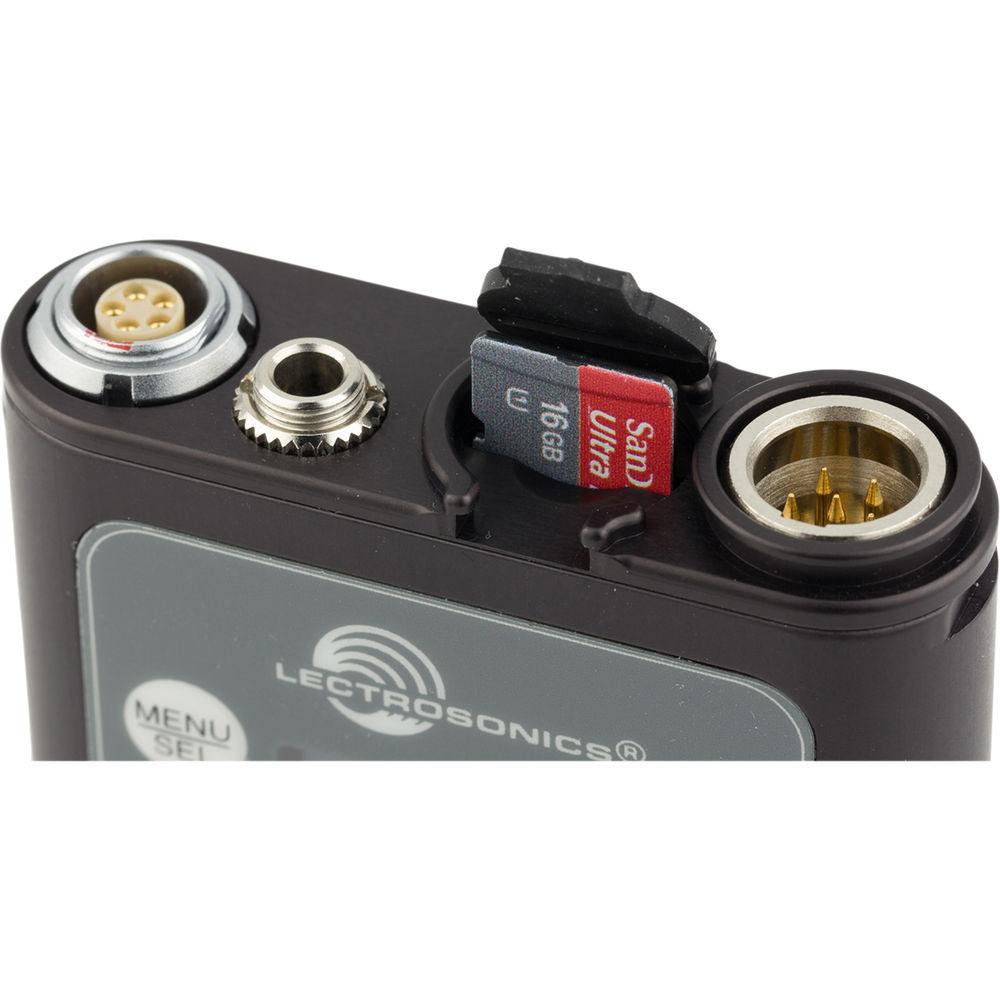

The PDR stores its recordings on microSDHC cards, and accepts audio via its TA5M 5-pin male connection point. An LCD and on-board keypad allow for quick and intuitive operation of the unit's controls. Via simple controls, the PDR's input can be adjusted to record at both mic- and line-level sources, utilizing a Lectrosonics' servo-bias preamp for both 2 and 4V lavalier microphones. You can also monitor directly from the unit through headphones or any compatible line-level device, so long as it boasts a 3.5mm connection point.
To synchronize time code with video and film production, a 5-pin LEMO jack is provided. This ensures that you can easily align its audio in the video timeline of any editing software, and gives you the ability to tether to a camera for the purpose of capturing a high-quality backup recording to boot. At 2.4 x 2.1 x 0.7", the PDR is easy to conceal in costumes, and can easily be left out of sight on a set to capture ambiance, as well as environmental and location sound. Its machined aluminum construction is durable. - Key Features at a Glance
-
- High-quality digital audio recordings in Broadcast Wave Format (BWF)
- Compact size for easy transport and concealment
- Records to microSDHC cards
- Wide-range input-gain adjustment for mic- and line-level signals
- Time code jam/sync from external source
- Standard Lectrosonics TA5M input jack
- Lectrosonics servo-bias input preamp
- Solid machined aluminum construction

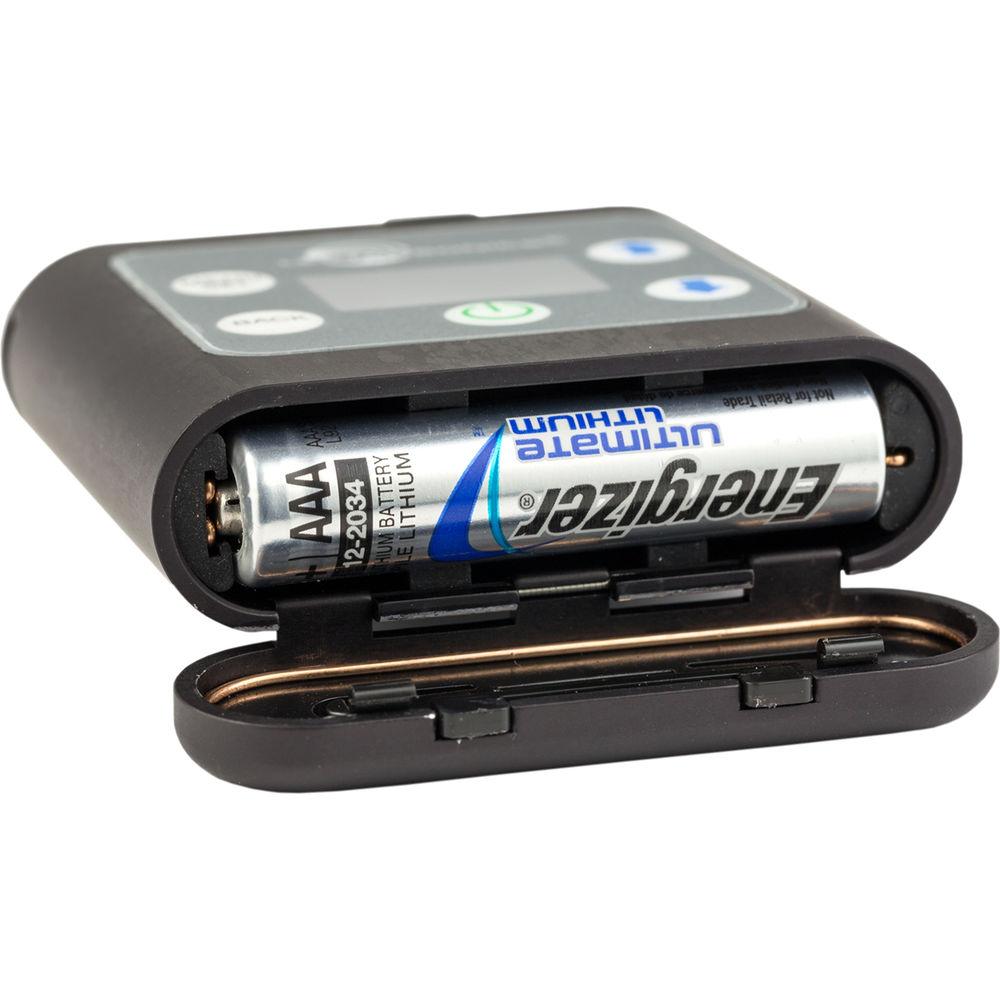

- Over six hours of operation on a single lithium AAA battery
In the Box Lectrosonics Portable Digital Recorder Limited 1-Year Warranty
Includes Free - M152/5P - Omnidirectional Lavalier Microphone
Data Sheet PDF 351.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics Portable Digital Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics PDR Specs | | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | microSD (Up to 128 GB) | | | | Audio File Formats | BWF, WAV | | Sample Rates | 48 kHz | | Bit Depth | 24-Bit (AD/DA Conversion) | | Bit Rates | 192 kb/s (HD Mono Mode)
384 kb/s (Split Gain Mode) | | Timecode | Yes | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Output
1 x TA5 Male Input | | Digital I/O | 1 x LEMO 5-Pin Timecode Input | | Plug-In Power | Yes, 2 to 4 V | | | | Frequency Response | 20 Hz to 20 kHz +0.5/-1.5 dB | | Max Output Level | -3 dBu | | Impedance | Timecode Input:
10 kOhms | | SNR | 105 dBA
80 dBA SNR Values are for HD Mono Mode and Split Gain Mode Respectively | | THD | <0.035% | | | | Battery Type | 1 x AAA | | Approximate Battery Life | 6.5 Hours (Lithium)
2.5 Hours (Alkaline) | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dimensions | 2.4 x 2.1 x 0.7" / 60.2 x 54.4 x 17.0 mm | | Weight | 2.5 oz / 70.9 g | | | | Package Weight | 0.06 lb | | Box Dimensions (LxWxH) | 6.4 x 5.65 x 2.3" |
