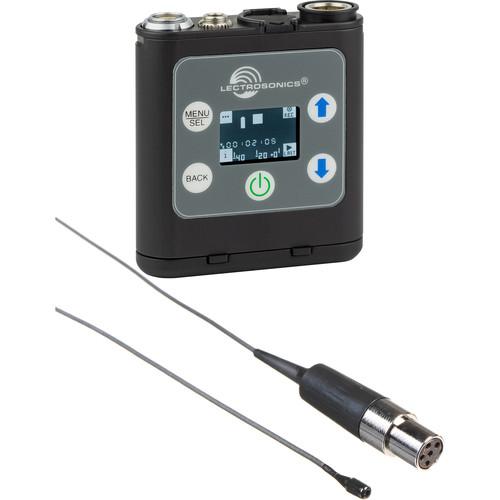

Product description Bundled together by for your convenience, the Lectrosonics Portable Digital Recorder Kit is designed to give you with everything you need to record voice-audio remotely in a high-quality, digital manner. It does this by providing you with a portable digital recorder and an omnidirectional lav microphone. The recorder captures audio on SDHC cards at the broadcast standard (24-bit/48 kHz) and outputs BWF files. Time code jamming via the 5-pin LEMO connection allows you to sync audio with video in a relatively straightforward and convenient manner; as such, this kit is suitable for actors on set, interviewers in the field, and other people/scenarios requiring free-roaming audio recording for video purposes.
The recorder offers a servo-bias preamp, especially useful for the provided Countryman B6, as it bestows the power necessary to run the Lav. Furthermore, the recorder sports a TA5M input jack, a 3.5mm output jack, a durable machined-aluminum construction, and a compact design for hiding it on an actor's body. It runs on AAA lithium batteries.
The lav, on the other hand, sports a Switchcraft TA5F connection point, making it eminently compatible with the recorder. It also provides generous headroom, allowing the user to employ his or her full range of voice. It's omnidirectional in polar pattern, black in color, unobtrusive in nature, and provides a wide frequency range of 20 Hz to 20 kHz. - Lectrosonics Portable Digital Recorder
- Hands-on Review: Lectrosonics Portable Digital Recorder
Designed for capturing high-quality digital audio that can synchronize with timecode, the PDR from Lectrosonics is a digital recorder which captures industry-standard 24-bit/48 kHz audio in WAV (BWF) formats. It is particularly useful in situations when using a wireless microphone is impractical, such as when distance to a wireless receiver is too far, or when the quality of wireless recording simply won't cut it.
The PDR stores its recordings on microSDHC cards, and accepts audio via its TA5M 5-pin male connection point. An LCD and on-board keypad allow for quick and intuitive operation of the unit's controls. Via simple controls, the PDR's input can be adjusted to record at both mic- and line-level sources, utilizing a Lectrosonics' servo-bias preamp for both 2 and 4V lavalier microphones. You can also monitor directly from the unit through headphones or any compatible line-level device, so long as it boasts a 3.5mm connection point.
To synchronize time code with video and film production, a 5-pin LEMO jack is provided. This ensures that you can easily align its audio in the video timeline of any editing software, and gives you the ability to tether to a camera for the purpose of capturing a high-quality backup recording to boot. At 2.4 x 2.1 x 0.7", the PDR is easy to conceal in costumes, and can easily be left out of sight on a set to capture ambiance, as well as environmental and location sound. Its machined aluminum construction is durable. - Key Features at a Glance
-
- High-quality digital audio recordings in Broadcast Wave Format (BWF)
- Compact size for easy transport and concealment
- Records to microSDHC cards
- Wide-range input-gain adjustment for mic- and line-level signals
- Time code jam/sync from external source
- Standard Lectrosonics TA5M input jack
- Lectrosonics servo-bias input preamp
- Solid machined aluminum construction
- Over six hours of operation on a single lithium AAA battery
- Countryman B6 Omni Lavalier Mic, Standard Sens, with Hardwired TA5F Connector for Lectrosonics Wireless Transmitters (Black)
- Hands-on Review: Lectrosonics Portable Digital Recorder
The black B6 Omnidirectional Lavalier Microphone, Standard Sensitivity, with Hardwired TA5F Connector for Lectrosonics Wireless Transmitters from Countryman is a very small lav microphone measuring one tenth of an inch in diameter with changeable protective caps, which provide moisture resistance and color options. The mic can be used to capture audio for theater, broadcast, churches, and general lavalier applications. Built with a low handling noise and rugged construction, the B6 lavalier microphone can be easily hidden in hair or on costumes, or taped to a performer's face. The aramid cable and ultra-thin diaphragm deliver a natural sound while its tiny size makes the B6 easy to position for ambient noise and feedback rejection. The B6's cable terminates to a TA5F connector for direct connection to a Lectrosonics M185 or M187 wireless bodypack transmitter. Additionally, swappable protective caps let you shape the frequency response for different situations or match other microphones. The B6 microphone is resistant to makeup, sweat, and moisture when used with the supplied protective caps. These caps can be quickly removed for cleaning or replacement. - Unobtrusive
- Looks great when you want to see it, virtually disappears when you don't. The B6 is easily hidden in hair or on costumes, with five colors to match clothing, hair, and skin tones. Use a felt tip marker to color the white caps for near-perfect concealability. Never suffer the hassle and degraded sound quality of under-clothing miking again.
- Rugged and Reliable
- The B6 is resistant to makeup, sweat, and moisture when used with the supplied protective caps, and works well in hair or on the body. The protective caps are easily removed for cleaning or replacement, and the aramid-reinforced cable gives it world-class survivability.
- Refined Sound Quality
- The B6 provides high-quality audio with low distortion at SPL up to 140 dB on 48V phantom power. The aramid cable and thin diaphragm combine to offer low handling noise. The flat frequency response accurately captures voice or instruments, and the small size makes the B6 easy to position for ambient noise and feedback rejection.
- Versatile
- Changeable protective caps let you shape the frequency response for different situations or to match other microphones. Versions are available for different speaking or singing styles, with high overload capability for recording instruments.
- Sensitivity
- Standard, for most uses.
In the Box - Portable Digital Recorder trcxcdcufyybbt
- Limited 1-Year Warranty
- Countryman - B6 Omni Lavalier Mic, Standard Sens, with Hardwired TA5F Connector for Lectrosonics Wireless Transmitters (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics Portable Digital Recorder Kit with Countryman B6 Lavalier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lectrosonics Portable Digital Recorder
| | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | microSD (Up to 128 GB) | | | | Audio File Formats | BWF, WAV | | Sample Rates | 48 kHz | | Bit Depth | 24-Bit (AD/DA Conversion) | | Bit Rates | 192 kb/s (HD Mono Mode)
384 kb/s (Split Gain Mode) | | Timecode | Yes | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Output
1 x TA5 Male Input | | Digital I/O | 1 x LEMO 5-Pin Timecode Input | | Plug-In Power | Yes, 2 to 4 V | | | | Frequency Response | 20 Hz to 20 kHz +0.5/-1.5 dB | | Max Output Level | -3 dBu | | Impedance | Timecode Input:
10 kOhms | | SNR | 105 dBA
80 dBA SNR Values are for HD Mono Mode and Split Gain Mode Respectively | | THD | <0.035% | | | | Battery Type | 1 x AAA | | Approximate Battery Life | 6.5 Hours (Lithium)
2.5 Hours (Alkaline) | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dimensions | 2.4 x 2.1 x 0.7" / 60.2 x 54.4 x 17.0 mm | | Weight | 2.5 oz / 70.9 g | | | | Box Dimensions (LxWxH) | 6.4 x 5.65 x 2.3" | - Countryman B6 Omni Lavalier Mic, Standard Sens, with Hardwired TA5F Connector for Lectrosonics Wireless Transmitters (Black)
| | | Sound Field | Mono | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Sensitivity | 16.0 mV/Pa | | | | Output Connector | TA5F/Mini XLR | | Cable Length | 5.0' / 152.40 cm | | Operating Voltage | 1 V ± 2 V | | Diameter | 0.1" / 2.54 mm | | Weight | 0.07 oz / 2.0 g | | | | Box Dimensions (LxWxH) | 9.3 x 5.1 x 1.6" |
