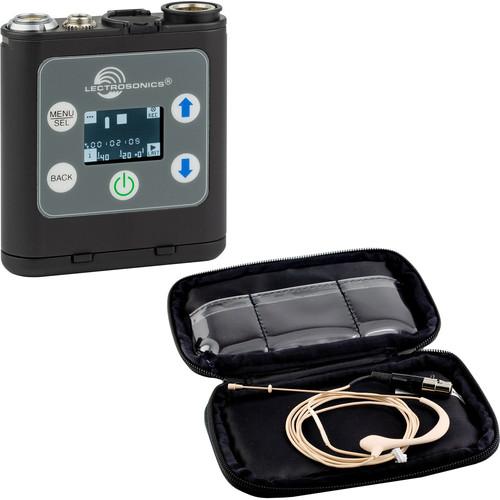

User Manual for Lectrosonics Portable Digital Recorder Kit with HM172 Omnidirectional Earset Microphone

• Product category: Portable Digital Recorders Lectrosonics
• Brand: Lectrosonics
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lectrosonics Portable Digital Recorders

Product description

• Lectrosonics Portable Digital Recorder
  • Hands-on Review: Lectrosonics Portable Digital Recorder
  Designed for capturing high-quality digital audio that can synchronize with timecode, the PDR from Lectrosonics is a digital recorder which captures industry-standard 24-bit/48 kHz audio in WAV (BWF) formats. It is particularly useful in situations when using a wireless microphone is impractical, such as when distance to a wireless receiver is too far, or when the quality of wireless recording simply won't cut it.

  The PDR stores its recordings on microSDHC cards, and accepts audio via its TA5M 5-pin male connection point. An LCD and on-board keypad allow for quick and intuitive operation of the unit's controls. Via simple controls, the PDR's input can be adjusted to record at both mic- and line-level sources, utilizing a Lectrosonics' servo-bias preamp for both 2 and 4V lavalier microphones. You can also monitor directly from the unit through headphones or any compatible line-level device, so long as it boasts a 3.5mm connection point.

  To synchronize time code with video and film production, a 5-pin LEMO jack is provided. This ensures that you can easily align its audio in the video timeline of any editing software, and gives you the ability to tether to a camera for the purpose of capturing a high-quality backup recording to boot. At 2.4 x 2.1 x 0.7", the PDR is easy to conceal in costumes, and can easily be left out of sight on a set to capture ambiance, as well as environmental and location sound. Its machined aluminum construction is durable.
  Key Features at a Glance
  • • High-quality digital audio recordings in Broadcast Wave Format (BWF)
    • Compact size for easy transport and concealment
    • Records to microSDHC cards
    • Wide-range input-gain adjustment for mic- and line-level signals
    • Time code jam/sync from external source
    • Standard Lectrosonics TA5M input jack
    • Lectrosonics servo-bias input preamp
    • Solid machined aluminum construction
    • Over six hours of operation on a single lithium AAA battery
• Lectrosonics HM172 Omnidirectional Earset Microphone with 5-Pin Connector
  • Hands-on Review: Lectrosonics Portable Digital Recorder
  Designed to mount comfortably to your ear, the HM172 from Lectrosonics is an omnidirectional microphone with a 5-pin TA5F connector suitable for use with Lectrosonics transmitters. Its neutral profile and comfortable, out-of-the-way design renders the microphone useful for many applications, such as lectures, theatrical presentations, and broadcast studio operations.

  With a frequency response of 50 Hz to 20 kHz and the ability to withstand sound pressure levels of 125 dB, the microphone is aptly suited for the human voice. It operates at a bias voltage of 2 to 9V.

  Its cable is designed to run behind your neck for better concealment, while a perspiration ring on its boom helps keep the capsule dry in many situations. Both the earpiece and the boom are flexible, allowing you to comfortably position the microphone to garner the maximum amount of gain while simultaneously minimizing breath noise.

  Included with the microphone are two windscreens and a cable retention clip. Also provided is a replaceable HF peak cap to curtail energy at the highest points of the frequency range, thus helping with excessive sibilant information and other vocal mishaps.
  Key Features
  • • Lightweight at 0.3 oz
    • Adjustable boom arm
    • Low-visibility design
    • Wide frequency range
    • High SPL
    • Replaceable HF peak cap
    • Adjustable "drip ring"
    • 5-pin connector for Lectrosonics wireless transmitters

• Portable Digital Recorder trcxcdcufyybbt
• Limited 1-Year Warranty

• HM172 Omnidirectional Earset Microphone with 5-Pin Connector

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Lectrosonics Portable Digital Recorder

  Number of Tracks	2
  Max Sample Rate/Resolution	48 kHz / 24-Bit
  Built-In Speaker	No
  Memory Card Support	microSD (Up to 128 GB)

  Audio File Formats	BWF, WAV
  Sample Rates	48 kHz
  Bit Depth	24-Bit (AD/DA Conversion)
  Bit Rates	192 kb/s (HD Mono Mode) 384 kb/s (Split Gain Mode)
  Timecode	Yes

  Analog I/O	1 x 1/8" / 3.5 mm TRS Output 1 x TA5 Male Input
  Digital I/O	1 x LEMO 5-Pin Timecode Input
  Plug-In Power	Yes, 2 to 4 V

  Frequency Response	20 Hz to 20 kHz +0.5/-1.5 dB
  Max Output Level	-3 dBu
  Impedance	Timecode Input: 10 kOhms
  SNR	105 dBA 80 dBA SNR Values are for HD Mono Mode and Split Gain Mode Respectively
  THD	<0.035%

  Battery Type	1 x AAA
  Approximate Battery Life	6.5 Hours (Lithium) 2.5 Hours (Alkaline)

  Operating Temperature	-4 to 122°F / -20 to 50°C
  Dimensions	2.4 x 2.1 x 0.7" / 60.2 x 54.4 x 17.0 mm
  Weight	2.5 oz / 70.9 g

  Box Dimensions (LxWxH)	6.4 x 5.65 x 2.3"

• Lectrosonics HM172 Omnidirectional Earset Microphone with 5-Pin Connector

  Color	Beige
  Type	Electret condenser
  Polar Pattern	Omnidirectional
  Frequency Response	50 Hz to 20 kHz
  Sensitivity	7 mV/Pascal
  Maximum SPL	125 dB
  Signal-to-Noise Ratio	64 dB @ 94 dB SPL
  Power Requirements	2 to 9 V
  Output Connector	1 x TA5F 5-pin female
  Wiring	Red: Bias Yellow: Audio Green: Ground (shield)
  Cable Length	54.0" / 137.2 cm
  Weight	0.3 oz / 9.0 g (without connector)

  Box Dimensions (LxWxH)	6.8 x 4.3 x 1.4"
