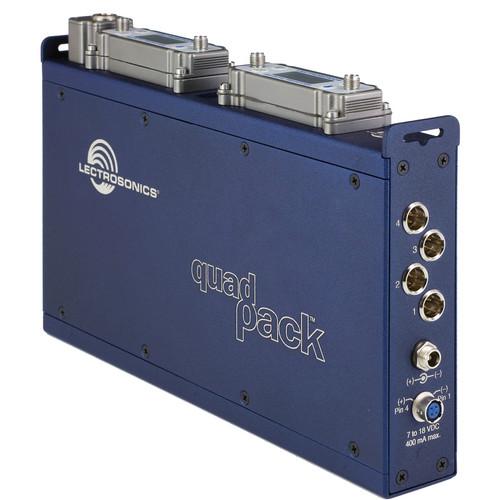

Product description The Lectrosonics Quadpack Power & Audio Interface houses up to 2 Lectrosonics SRa or SRa-5P portable wireless microphone receivers, and provides 2 discrete audio outputs for each receiver. The Quadpack also features a 4-pin Hirose power input for distributing power to each receiver from an external power supply, such as the DCR15/1A6U (not included).The audio outputs feature 4 balanced XLR, and 4 TA3-male connections that allow for simultaneous connection to external mixers, recorders, professional cameras, etc. The Quadpack is built tough, with an all-metal construction and reversible connection panels. The Lectrosonics Quadpack is well suited for use in portable "bag" systems containing a mixer, recorder and wireless transmitters. - Accepts two SRa or SRa5P receivers
- Uses 25-pin Unislot adapter
- Balanced XLR audio outputs
- Balanced TA3M audio outputs
- Output jack panels can be reversed
- Locking coaxial DC power connector
- 4-pin Hirose DC power connector
- Powder coated aluminum housing
In the Box Lectrosonics Quadpack Power & Audio Interface 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics Quadpack Power & Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics QUADPACK Specs | Power | Power: Hirose 4-Pin Coaxial (LZR)
Power Requirements: 7 to 18VDC, 400 mA max Power Interface Connector: dB-25 (Unislot) | | Audio Outputs | 4 Balanced XLR-Male
4 Balanced TA3-Male | | Dimensions (HxWxD) | 4.95 x 9.40 x 1.40" (125.73 x 239 x 35mm) | | Weight | Assembly only: 1 lbs., 5 oz. (0.69 kg)
With 2-SRa5P receivers: 2 lbs., 4 oz. (1.088 kg) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 14.0 x 10.5 x 4.0" |
