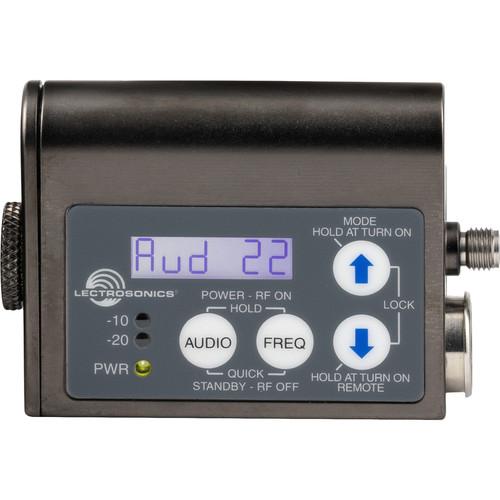

User Manual for Lectrosonics SMV Super Miniature Wireless Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the Lectrosonics SMV Super Miniature Wireless Microphone
- Product category: Wireless Transmitters Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Wireless Transmitters
|
User manual for the Lectrosonics SMV Super Miniature Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|
Product description The Lectrosonics SMV Super Miniature Wireless Microphone Transmitter incorporates Lectrosonics patented Digital Hybrid Wireless technology, in a package no bigger than a pager. The SMV transmitter is miniature in size yet rugged enough to withstand rigorous daily use in the field or in studios.
To meet the demand for both extended operating range and extended battery life, the SMV transmitters offer selectable output power of 50, 100 mW. A third selection at 50 mW is provided for some theatrical applications, where the system design specifies lower transmitter power. The SMV transmitter offers 695 user-selectable UHF frequencies. The Switchcraft TA5M audio input has user-calibrated 44 dB gain range, and accepts electret lavaliere mics, dynamic mics, or line level signals. A DSP-controlled analog audio limiter is employed before the A-D converter. The limiter has a range of more than 30 dB and a dual-release envelope, making the limiter transparent while maintaining low distortion.
Lectrosonics patented Digital Hybrid technology revolutionizes wireless microphone transmission. Digital audio signal is converted and encoded for analog transmission, then decoded and converted back to digital audio at the receiver. The result is an exceptionally low noise floor as the compandor circuit is eliminated and clear audio reception is retained at greater distances.
The non-corrosive, machined aluminum casing is splash proof and features an LCD display with membrane switch control panel. The transmitter is powered by one AA lithium, NiMH or alkaline battery for up to 7.25 hours (lithium). The SMV transmitter is completely compatible with all Lectrosonics Digital Hybrid wireless receivers, as well as older Lectrosonics analog receivers. - Variable, Selectable Output Power
- The SMV features selectable 50, 100 mW output power.
- Miniature Design
- The miniature design allows for a variety of mounting possibilities in film, video, theater, performances, etc.
- Digital Hybrid Wireless Architecture
- Lectrosonics incorporates digital and analog audio technology to enhance range and eliminate the noise associated with compandor circuits.
- Locking TA5-Male Connection
- A locking TA5M input is compatible with Lectrosonics and third-party microphones and cables. The input accepts line and microphone level signal.
- Backwards Compatibility
- The SMV transmitter is completely compatible with all current Lectrosonics Digital Hybrid receivers and older Lectrosonics analog receiver models as well.
- Splash-Proof Enclosure
- The polished aluminum enclosure is moisture proof and ideal for use in rain.
- Extended Battery Life
- The SMV transmitter is powered by one AA alkaline, NiMH or lithium rechargeable battery. With Lithium power, the unit is capable of up to 7.25 hours of use.
In the Box Lectrosonics SMV Super Miniature Wireless Microphone Transmitter (Freq Block 941) Antenna Mic Connector Kit 2 x Foam Insulating Pads Belt Clip Carrying Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics SMV Super Miniature Wireless Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics SMV Specs | Operating Frequency | 941.525 - 959.825 MHz | | Frequency Range | 695 frequencies in 25 kHz steps | | Channel Spacing | Either 100 or 25 kHz | | Frequency Selection | Control panel mounted membrane switches | | RF Power Output | Switchable; 50, 100 mW | | Compatibility Modes | Digital Hybrid Wireless® (400 Series), 200 Series, 100 Series, Mode 3 , Mode 6, IFB | | Pilot Tone | 25 to 32 kHz; 5 kHz deviation (in 400 Series Mode) | | Frequency Stability | ± 0.002% | | Deviation | ± 75 kHz max. (in 400 Series Mode) | | Spurious Emission | 60 dB below carrier | | Equivalent Input Noise | -125 dBV, A-weighted | | Input Level | - If set for dynamic mic: 0.5 mV to 50 mV before limiting; greater than 1 V with limiting
- If set for electret lavaliere mic: 1.7 uA to 170 uA before limiting; greater than 5000 uA (5 mA) with limiting
- Line level input: 17 mV to 1.7 V before limiting; greater than 50 V with limiting
| | Input Impedance | - Dynamic mic: 300 Ohms
- Electret lavaliere: input is virtual ground with servo adjusted constant current bias
- Line level: 2.7 k Ohms
| | Limiter | DSP Controlled Soft limiter, 30 dB range | | Bias Voltage(s) | Fixed 5 V at up to 5 mA; selectable 2 V or 4 V servo bias for any electret lavaliere | | Gain Range | 44 dB; panel mounted membrane switches | | Modulation | Dual bicolor LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation | | Controls | Control panel with LCD and four membrane switches | | Low Frequency Roll-Off | Adjustable from 35 to 150 Hz | | Audio Frequency Response | 35 Hz to 20 kHz, +/-1 dB | | Signal to Noise Ratio | SmartNR Off: - No Limiting: 103.5 dB
- Limiting: 108 dB
SmartNR Normal: - No Limiting: 107 dB
- Limiting: 111.5 dB
SmartNR Full: | | Total Harmonic Distortion | 0.2% typical (400 Series mode) | | Audio Input Jack | Switchcraft 5-pin locking (TA5F) | | Antenna | Flexible, unbreakable steel cable | | Batteries | One 1.5 Volt AA lithium or rechargeable; NiMH recommended | | Battery Life | 50 mW:- Alkaline: 2 hrs
- Lithium: 7.25 hrs
- 2500 MA NiMH: 5 hrs
100 mW- Alkaline: 1.5 hrs
- Lithium: 5.5 hrs
- 2500 MA NiMH: 4 hrs
| | Emission Standard | 180KF3E | | Dimensions | 2.3 x 1.8 x 0.64" / 58 x 46 x 16 mm not including microphone/lanyard | | Weight | 2.7 oz / 75.9 g with lithium battery | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.85 x 7.9 x 2.95" |
