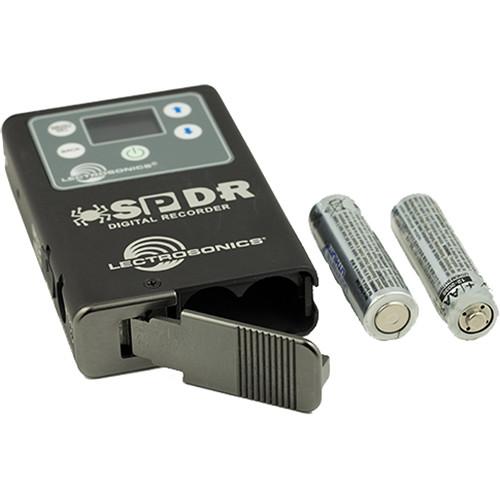

User Manual for Lectrosonics SPDR Stereo Portable Digital Recorder Click to enlarge the picture
Contents of the user manual for the Lectrosonics SPDR Stereo Portable Digital Recorder
- Product category: Portable Digital Recorders Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Portable Digital Recorders
 |
User manual for the Lectrosonics SPDR Stereo Portable Digital Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|

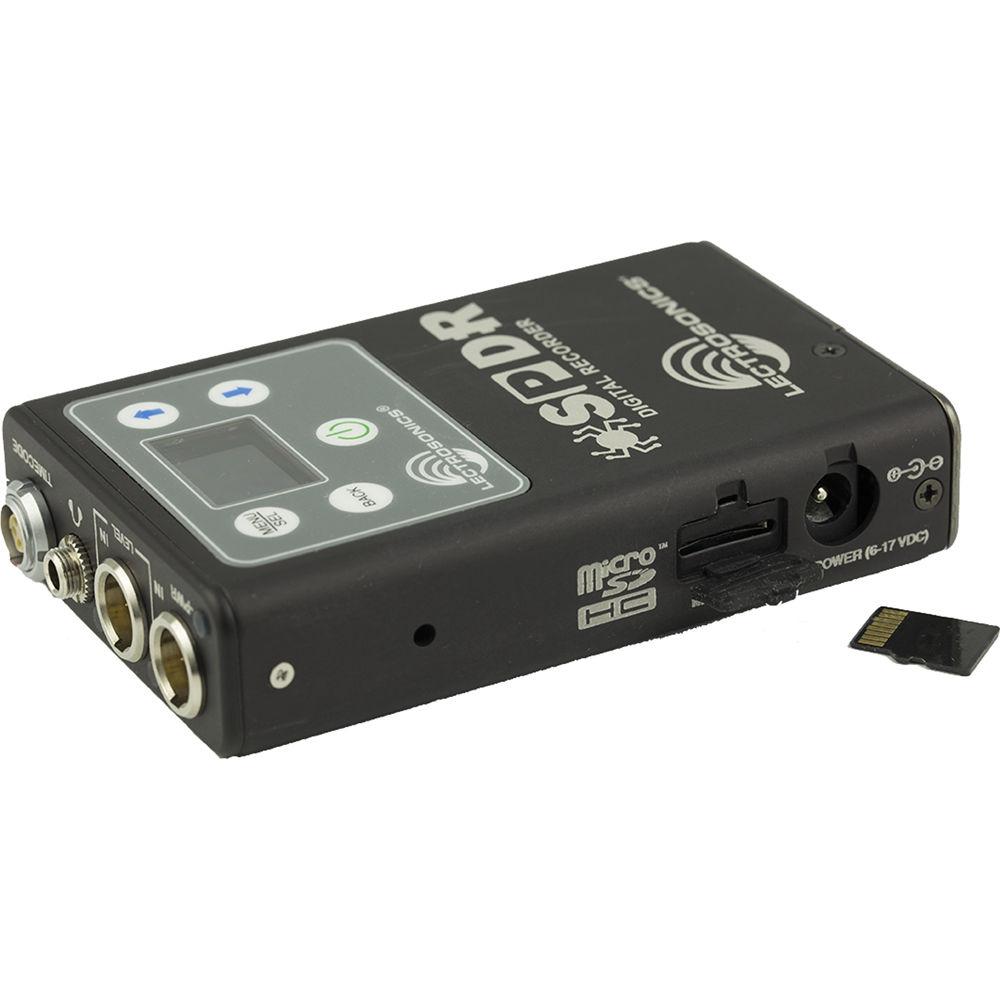

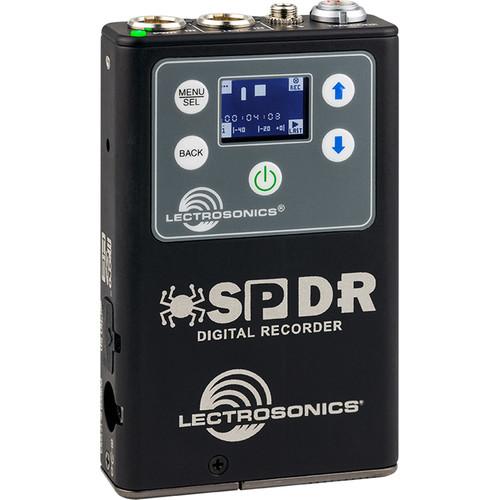

Product description Lectrosonics Announces SPDR Stereo Portable Digital Recorder Read More The Lectrosonics SPDR is a stereo portable digital recorder offering stable high-resolution audio recording and playback for sound engineers, boom operators, and field recordists in VR, television, and video/film production. It records in iXML-compliant Broadcast Wave Format to a microSDHC card (available separately). Operate at 24-bit / 48 kHz to conserve storage space, or use 24-bit / 96 kHz for reduced high-frequency phase distortion. Its aluminum housing is compact, lightweight, and durable, making it ideal for indoor or outdoor locations. A wire belt clip is included for convenient attachment to clothing or a bag. Two TA5M inputs accommodate mic- or line-level signals and deliver bias voltage for electret lavalier microphones. Linkable input limiters and adjustable input levels allow effective control of your gain stage. Additionally, the selectable split gain mode records each input to two tracks, one at the configured level and one at -18 dB to avoid clipping. Connect headphones to the 3.5mm TRS jack and easily monitor the output. The TCXO crystal and robust timecode functionality ensure proper generating and syncing operations, and external timecode can be patched to the LEMO 5-pin input. A high-definition display and simple button layout provide efficient menu navigation and configuration of settings. Operate the SPDR for up to 20 hours via two AA lithium batteries, or utilize an external power supply for extended periods of use. The SPDR will automatically switch to the internal batteries in event of a loss of external power. - Broadcast Wave Format
- With a timecode jam at the start of the production, the audio data file contents include a timing reference to make it easy to synchronize them in the time line. The industry standard BWF/.WAV file format is compatible with essentially any audio or video editing software.
- iXML Header Support
- Recordings contain industry standard iXML chunks in the file headers, with the most commonly used fields filled in.
- TA5 Mic/Line Inputs
- The input connectors are the industry-standard TA5M jacks that accept analog mic- or line-level signal. If using mic inputs, the SPDR provides bias voltage to power a variety of electret lavalier microphones (2V or 4V). The input connection is compatible with microphones pre-wired for "compatible" and "servo bias" configurations to feed 5-pin inputs on Lectrosonics wireless microphone transmitters.
- AES3 Digital Input
- Input may be switched to accepts AES3, making the SPDR an ideal backup/redundant recorder. Connect the AES3 digital output of a mixer to the SPDR via the separately available Lectrosonics MCAES3, which is a TA5F to XLR 3-pin female cable.
- Timecode Support
- Timecode can be copied from the internal real-time clock, for projects where it is desirable for timecode to approximately match time of day but it is not necessary to keep time with other devices.
Timecode defaults to zero at power up if no timecode source is used to jam the unit. A timing reference is logged into the BWF metadata. - Accurate Clock
- Temperature compensating (TCXO) clock is accurate to less than 1 ppm at all temperatures. This high-accuracy oscillator allows free-wheeling precision for long recording days.
- Dual Sample Rates
- The SPDR has two sample rate options available, 48 kHz and 96 kHz. 48 kHz is an industry-standard rate and should be suitable for nearly all purposes. At 96 kHz, twice the storage space will be used, but there will be slightly less phase distortion near the top end of the audible spectrum (close to 20 kHz).
- Linked vs Independent Stereo
- The Linked Stereo option operates limiters on both channels together to preserve the balance of the stereo image. Use Independent Stereo to have a separate limiter for two separate sounds/voices.
- Split Gain Mode
- There are two recording modes available in the SPDR. HD Mono records a single audio track, while Split Gain records one track at the normal level and another at -18 dB as a "safety" track that can be used in place of the normal track in the event that overload distortion (clipping) has occurred on the normal track. In either mode, recordings over 4GB are broken into sequential segments so long recordings (over approximately 5 hours in HD mode or 2.5 hours in split mode) will not be a single file.
- Dual Power Sources
- The SPDR has an external power input with internal battery switch over, allowing all-day recording from your bag battery with immediate fall back to the internal batteries should there be a loss of external power.
In the Box Lectrosonics SPDR Stereo Portable Digital Recorder Wire Belt Clip Limited 1-Year Warranty Guides & Manuals ysxqrzxvyfxxeutdutsdfbffata Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics SPDR Stereo Portable Digital Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Lectrosonics SPDR Stereo Portable Digital Recorder can be downloaded in PDF format at the link stated below.
Technical parametersLectrosonics SPDR Specs | | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | microSDHC (Up to 32 GB) | | | | Audio File Formats | BWF | | Sample Rates | 48 / 96 kHz | | Bit Depth | 24-Bit | | Timecode | Yes | | | | Analog I/O | 2 x TA5 5-Pin Male Input
1 x 1/8" / 3.5 mm TRS Output | | Digital I/O | 1 x LEMO 5-Pin Timecode In/Out
1 x TA5 AES3 Input | | | | Frequency Response | 20 Hz to 20 kHz +0.5/-1.5 dB | | Max Output Level | -3 dBu | | Dynamic Range | 110 dBA | | THD | <0.035% | | | | Battery Type | 2 x AA | | Approximate Battery Life | 48 kHz:
20 Hours | | AC/DC Power Adapter | 6 to 17 VDC at 75 mA, Center-Positive (Not Included) | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dimensions | 3.9 x 2.4 x 0.8" / 99.1 x 60.5 x 20.8 mm | | Weight | 5.7 oz / 162.0 g (with Batteries) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 1.0 x 0.8 x 0.3" |
