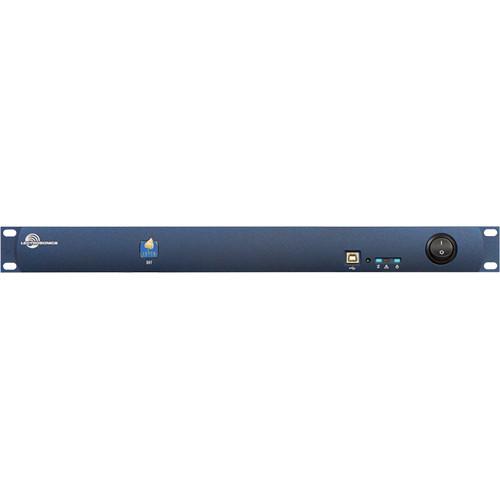

User Manual for Lectrosonics SPNDNT Dante Network Processor Click to enlarge the picture
Contents of the user manual for the Lectrosonics SPNDNT Dante Network Processor
- Product category: Networked Audio Systems Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Networked Audio Systems
|
User manual for the Lectrosonics SPNDNT Dante Network Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|
Product description The SPNDNT Dante Network Processor from Lectrosonics is a DSP mixer and processor for Dante networked ASPEN equipment. It features 32 digital inputs and outputs via its dual gigabit Ethernet ports. It provides automatic mixing, gain control, and delay to time align audio from different sources.
The unit can both generate clock signal and serve as a clock master, or function as a slave to the clock in another Dante unit. The SPNDNT is network plug and play and will automatically recognize other units on the network once connected. It can be connected to a secondary network for redundancy, providing a failsafe if the primary network fails. - Plug-and-Play Networking for Media Professionals
- With Dante's Zero configuration protocol, you won't need a networking specialist to enter numerical IP or MAC addresses, or set up DNS or DHCP servers. Dante makes networking a true plug-and-play process with automatic device discovery and system configuration. Dante-enabled devices find each other on the network and will configure themselves, so you can skip those complicated, error-prone set-up procedures. Instead of "magic numbers," you label networked devices and their input and output signals with names that make sense to you
- IP Standards Based Technology
- Dante is built on global networking standards including Internet Protocols - not just Ethernet. With true IP routing, Dante technology works as an IT network capable of transporting professional quality audio and high definition video with no limits on your layout options. Dante delivers sample-accurate playback synchronization, even over multiple switch hops. Latency is extremely low whether you choose to run your Dante network with fixed latency or optimized latency. Dante makes it easy to set up robust, flexible digital audio networks with performance that scales with your network
- Media Networking over Existing Infrastructure and Hardware
- Dante runs on inexpensive off-the-shelf computer networking hardware, and does not require dedicated network infrastructure. Ethernet switches transmit Dante digital media streams alongside ordinary data traffic, so you can integrate professional media operations into properly designed pre-existing networks. And with Dante Virtual Soundcard (DVS), your Mac or Windows computer looks and acts like any other Dante-enabled device. Just plug in to the standard Ethernet port to use digital audio processing, recording or playback software on the network
- Sample Accurate Timing with Inaudibly Low Latency
- Dante uses audio independent, high accuracy network synchronization standards to ensure all Dante devices are synchronized at all times. Sample accurate playback with extremely low latency and jitter is achieved without limiting your audio sample rates and network layout options
- Dante Benefits
-
- Plug-and-play technology - automatic discovery and simple signal routing
- Reduced Cost & Complexity- No special skills required to set up audio networking
- Sample accurate playback synchronization
- Lowest latency available from any networking technology
- Add/remove/rearrange components at will
- Deterministic latency throughout the network
- Support mixed bit depths and mixed sample rates over one network
- Scalable, flexible network topology supporting a large number of senders and receivers
- Supports mix of 100Mbps, 1Gbps, through 10Gbps networks
- Supports a single integrated network for audio, video, control, monitoring
- Uses inexpensive, off-the-shelf computer networking equipment
- Direct connection to PCs for multi-channel recording, processing and playback using a Dante Virtual Soundcard for both PCs and Macs
- AVB Ready
- Functions Added by SPNDNT Processor
- Automatic mixing: auto, direct, override, background and phantom modes for use in sound reinforcement, recording and mix-minus applications
Gain adjustment: to match levels from different audio signal sources.
Delay: to time align audio from different signal sources In the Box Lectrosonics SPNDNT Dante Network Processor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics SPNDNT Dante Network Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics SPNDNT Specs | Digital Inputs | 32 via Ethernet | | Digital Outputs | 32 via Ethernet | | Monitor Output | 1x 1/4" (6.35 mm) headphone jack
Signal Source: Any of the 48 final mixes
Output Power: 50 mW (<50 Ω impedance recommended) | | Matrix Access | 32 inputs from Dante matrix
48 mixes in ASPEN matrix | | Input Processing | Gain: -69 to 20 dB in 1 dB increments
Delay: .5 to 100 ms in .5 ms increments | | Output Processing | Gain: -69 to 20 dB in 1 dB increments
Delay: .5 to 250 ms in .5 ms increments | | Crosspoint Mixing Modes | Auto
Direct
Override
Background
Phantom | | Signal Generator | Swept Sine: Modes: single sweep, continuous sweep
Waveforms: Sawtooth (up or down), triangle
Sweep Rate: Linear, logarithmic
Parameters: Start frequency, stop frequency, level (dBu), sweep time (sec)
White Noise: Parameter: level (dBu)
Pink Noise: Parameter: level (dBu)
Tone (Sine Wave): Parameter: level (dBu), frequency | | Power Requirement | 100-240 VAC, 50/60 Hz | | Power Consumption | 15 W | | Dimensions (L x W x H) | 1.75 x 19.00 x 7.70" (44.4 x 482.0 x 195.0 mm) | | Weight | 3.64 lb (1.65 kg) | | | | Package Weight | 8.9 lb | | Box Dimensions (LxWxH) | 24.3 x 14.6 x 6.5" |
