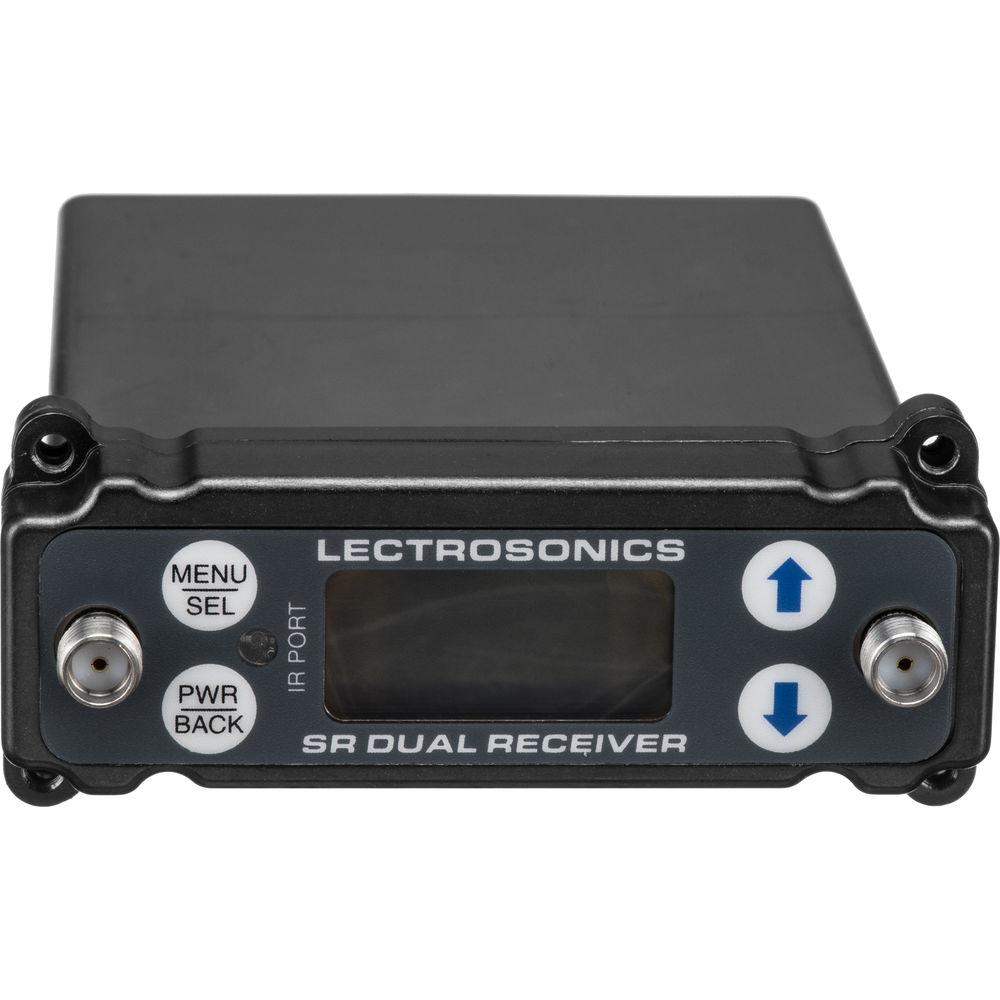

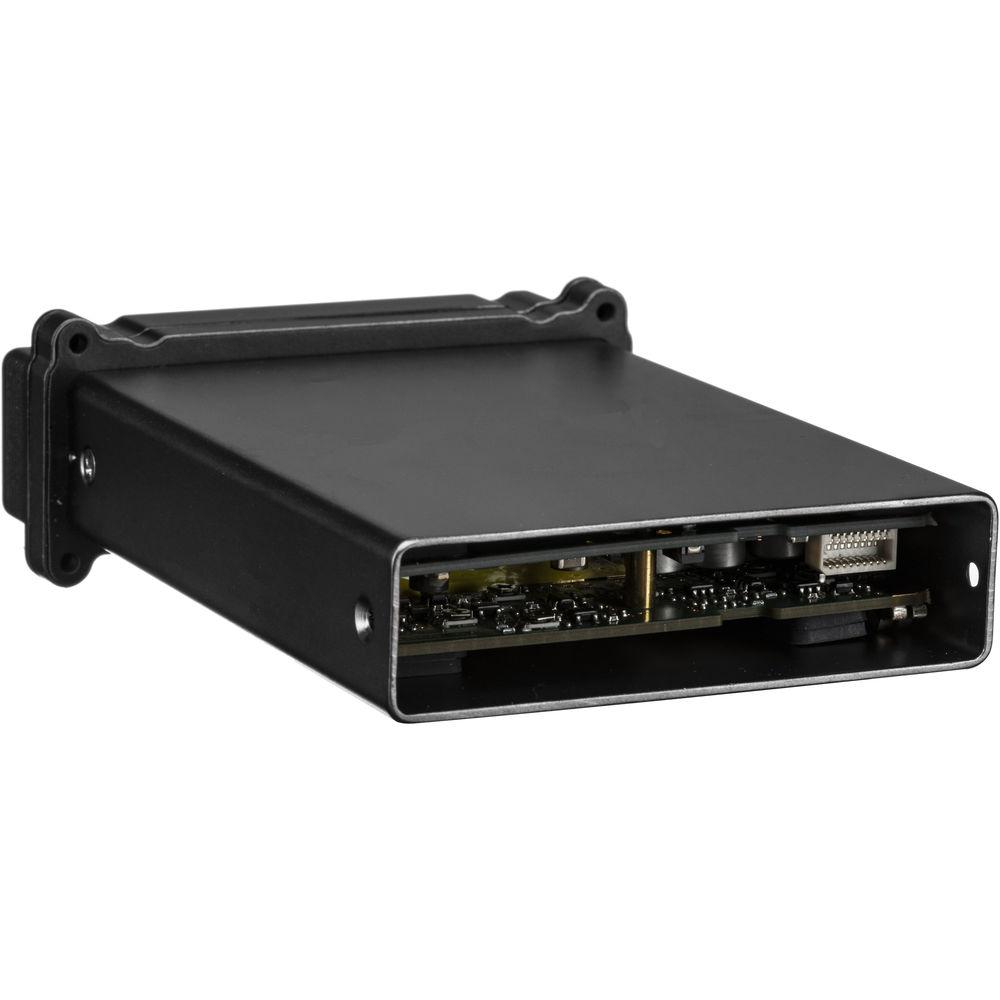

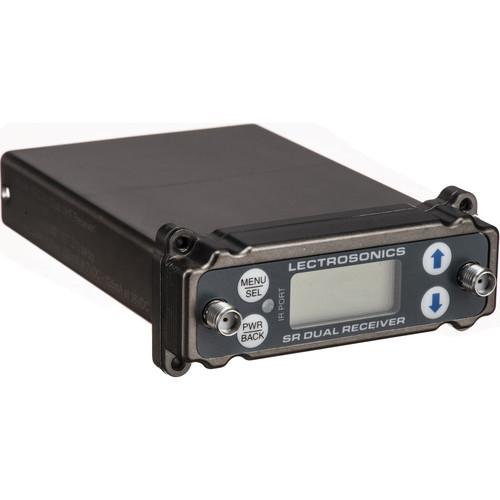

Product description The SRc Dual-Channel Slot-Mount ENG Receiver from Lectrosonics consist of two separate receivers built into a single, ultra-compact housing with adapters for video-camera-receiver slots and for stand-alone use. They can be used when paired with a transmitter & microphone (sold separately) in various environments for ENG (Electronic News Gathering), EFP (Electronic Field Productions) and other audio applications. Each receiver features Digital Hybrid Wireless technology that provides compandor-free audio quality and compatibility with other wireless systems. The RF performance is stable over a wide temperature range, making the receiver perfectly suited in rough environmental conditions. The front panel has a menu-driven LCD interface and four membrane switches which are used to view and alter settings. In addition, the LCD window displays the pilot-tone indicator, diversity activity, RF level, audio level, and transmitter battery status for both receivers. Furthermore, a built-in spectrum analyzer scans across the tuning range of the receiver and displays a histogram of RF activity across the band. Areas of RF activity are easily recognizable. The two internal receivers can be operated separately and both have switching, antenna-combining diversity, or in tandem with ratio-diversity reception. Finally, a variety of output adapters and mounting options are available for camera-slot operation. The receivers are powered from an external 7 to 18 VDC source. - Fits camera "slots," Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
- Dual-receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
- Digital Hybrid Wireless with compatibility modes for use with other transmitters
- Tracking front-end filters for high performance in tough RF environments
- LCD with RF spectrum scanning
- SmartSquelch DSP-controlled, noise-based filtering and squelch
- DSP-based pilot tone for squelch control
- IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
- SmartTune operation for quick and confident frequency selection
In the Box Lectrosonics SRc Dual-Channel Slot-Mount ENG Receiver (A1: 470.100 to 537.575 MHz) Adjustment Tool 2 x Antennas Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics SRc Dual-Channel Slot-Mount ENG Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics SRc Specs | Operating Frequencies | A1: 470.100 to 537.575 MHz | | Frequency Selection Steps | Selectable; 100 or 25 kHz | | Type of Receiver | Dual conversion, superheterodyne | | IF Frequency | Ch.1: 248.450 MHz and 350.000 kHz
Ch.2: 243.950 MHz and 250.000 kHz | | Frequency Stability | ±0.001 % | | Front End Bandwidth | 20 MHz @ -3 dB | | Sensitivity | 20 dB SINAD: 1.0 uV (-107 dBm), A weighted
60 dB Quieting: 2.2 uV (-100 dBm), A weighted | | Squelch Quieting | Greater than 100 dB typical | | AM Rejection | Greater than 60 dB, 4 uV to 1 V | | Modulation Acceptance | 85 kHz | | Image and Spurious Rejection | 85 dB | | Third Order Intercept | 0 dBm | | Diversity Method | SmartDiversity phased antenna combining or Ratio Diversity using both receivers for a single audio channel | | FM Detector | Digital Pulse Counting Detector operating at 250 and 350 kHz | | RF Spectrum Analyzer | Coarse and fine scanning modes for RF spectrum site survey | | Antenna Inputs | 50 Ohms SMA female connectors | | Audio Output Connectors | Interchangeable D connector adapters for camera slot interfaces
Dual TA3 male (mini XLR) balanced output adapter
Balanced output adapter with fixed cables
Front-panel TA5M with two balanced outputs (5P version) | | Audio Output Level | Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output is 6 dB lower | | Audio Channel Crosstalk | -80 dB or better | | Front Panel Controls and Indicators | Sealed panel with membrane switches
LCD monitors pilot tone; antenna phase, receiver battery level; transmitter battery status; audio level, RF level | | Audio Test Tone | 1 kHz, -50 dBu to +5 dBu output (bal); 1% THD | | Transmitter Battery Type Selection | 9 V alkaline, 9 V lithium, AA alkaline, AA lithium, NiMH | | Phase Invert | Audio-output phase normal or inverted | | Compatibility Modes | HYB native Digital Hybrid mode
M.3 non-Lectrosonics (call factory)
200 Lectrosonics 200 Series
100 Lectrosonics 100 Series
HYB/TB Digital Hybrid w/ Talkback
M.7 non-Lectrosonics (call factory)
M.6 non-Lectrosonics (call factory)
IFB Lectrosonics IFB | | SmartNR (Noise Reduction) | Off, Norman, Full modes (available in Digital Hybrid mode only) | | | | Frequency Response | 32 Hz to 20 kHz (+/- 1 dB) | | THD | 0.15% (system) typical in Digital Hybrid mode | | Input Dynamic Range | 125 dB (with full Tx limiting) | | Rear Panel Controls | Audio-output connectors
External DC input | | Powering and Current Consumption | Min. 7 V to max. 18 VDC; 2.2 W
125 mA at 18 VDC
180 mA at 12 VDC
295 mA at 7 VDC | | Runtime with SRBATTSLED Adapter | 7.2 V, 2200 mAh "L" style battery will typically provide about 11 hours of operation | | Transmitter Battery | Level Tracking: LCD display with battery icon or timer readout | | Operating Temperature | -4 to 122°F / -20 to +50°C | | Dimensions (W x H x D) | 2.92 x 1.22 x 4.93" / 74 x 31 x 125 mm | | Weight | 7.9 oz / 225 g with SREXT adapter | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.9 x 7.85 x 2.95" |
