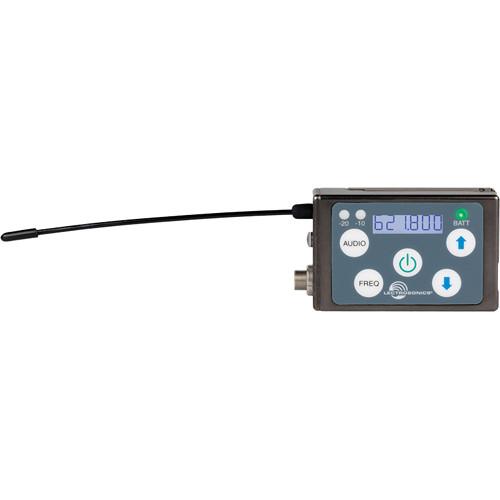

User Manual for Lectrosonics SSM Digital Hybrid Wireless Miniature Transmitter Click to enlarge the picture
Contents of the user manual for the Lectrosonics SSM Digital Hybrid Wireless Miniature
- Product category: Wireless Transmitters Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Wireless Transmitters
|
User manual for the Lectrosonics SSM Digital Hybrid Wireless Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|
Product description The SSM from Lectrosonics is a miniature Digital Hybrid Wireless Transmitter with selectable frequencies across a maximum tuning range of 76.7 MHz and has selectable 25 or 50 mW RF output power. It can be used in applications where concealment in costuming is required or any other production such as for live stage, theater, houses of worship, reality TV, and more. The SSM features selectable frequencies in 100 kHz or 25 kHz steps yielding a total of 3,072 available frequencies across three standard frequency blocks. Its lithium-ion battery provides power and sits in a stainless-steel battery door that latches closed and cannot be jarred open accidentally. The servo bias input that is built into the transmitter accepts mic or line level signals and uses gain adjustments in 1 dB steps. The LED indicators on the membrane keypad allow you to monitor precise gain adjustments and settings. A built-in limiter in the preamp, handles signal peaks over 30 dB. This provides you with the maximum signal to noise ratio and minimum distortion for input, but still provides protection against input overloads. The SSM is compatible with earlier analog Lectrosonics receivers IFB, and some other receivers, from manufacturers that utilize the DSP emulation mode, which is selectable in the LCD menu. The SSM transmitter housing is constructed of machined aluminum and has a hard, black electroless nickel finish called ebENi. - The SSM transmitter tunes across a range of over 76 MHz. This tuning range covers three standard Lectrosonics frequency blocks
- The transmitter operates from a 3.7V rechargeable battery that will provide about four hours of operation per charge
- The factory-supplied battery charger provides a folding NEMA 2-prong plug, and will operate from 100-240 VAC sources. The LED glows red during charging and turns green when the battery is fully charged
- The LCD is a numeric-type Liquid Crystal Display with screens for adjusting output power, frequency, audio level, low frequency audio roll-off, and various modes and options
- The antenna is a flexible whip made of galvanized steel, permanently attached to the transmitter to prevent damage from heavy use. The IR port is capped with a translucent dome material to broaden the reception angle. The input jack is a rugged 3-pin LEMO connector with a threaded locking sleeve
- An infrared sync port on the SSM allows for quick setup with compatible receiver systems. A micro-B USB port makes it possible for firmware updates in the field as advanced features are added in the future
- The SSM responds to remote commands for frequency, audio level, sleep modes, and other settings from the RM remote unit or 3rd party smartphone apps
In the Box Lectrosonics SSM Digital Hybrid Wireless Miniature Transmitter (B1: 537.600 to 614.375 MHz) Removable Belt Clip 3.7V Lithium-Ion Battery Pack Battery Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics SSM Digital Hybrid Wireless Miniature Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics SSM Specs | Operating Frequency | B1: 537.600 to 614.375 MHz | | Frequency Selection Steps | Selectable; 100 kHz steps or 25 kHz | | RF Power Output | Switchable; 25 or 50 mW | | Pilot Tone | 25 to 32 kHz; 5 kHz deviation (Digital Hybrid mode) | | Frequency Stability | ± 0.002% | | Deviation | ± 75 kHz max. (Digital Hybrid mode) | | Spurious Radiation | 60 dB below carrier | | Equivalent Input Noise | -120 dBV, A-weighted | | Input Level | Nominal 2 to 300 mV, before limiting
Greater than 1 V maximum, with limiting | | Input Impedance | Mic: 300 or 4.5 kOhms; selectable
Line: Greater than 100 kOhms | | Input Limiter | DSP controlled, dual envelope "soft" limiter with greater than 30 dB range | | Gain Control Range | 44 dB; digital control | | Modulation Indicators | Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation | | | | Frequency Response | 35 Hz to 20 kHz (+/-1 dB) | | Low Frequency Roll-Off | -12 dB/octave; 70 Hz | | Total Harmonic Distortion (THD) | 0.2% (typical) | | Signal to Noise Ratio | At Receiver Output:
SmartNR Off: No limiting 103.5, w/limiting 108.0
SmartNR Normal: No limiting 107.0, w/limiting 111.5
SmartNR Full: No limiting 108.5, w/limiting 113.0
Note: The dual envelope "soft" limiter provides the handling of transients using variable attack and release time constants. Once activated, the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver output range, thus reducing the measured figure for SNR without limiting by 4.5 dB | | Controls | Side-panel membrane switches with LCD interface for power on/off and all setup and configuration controls
Responds to remote commands from smartphones with 3rd party app. | | Audio Input Jack | LEMO 00 series 3-pin | | Antenna | Galvanized steel, flexible wire | | Batteries | Lithium-ion 3.7 V 1000 mAH NP50 battery pack | | Battery Life | 6 hours per charge | | Emission Standard | 180KF3E | | Dimensions (L x W x H) | 2.3 x 1.5 x 0.56" (58.4 x 38 x 14.2 mm) | | Weight | 2.3 oz (65.2 g) including lithium battery pack | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.8 x 7.9 x 3.0" |
