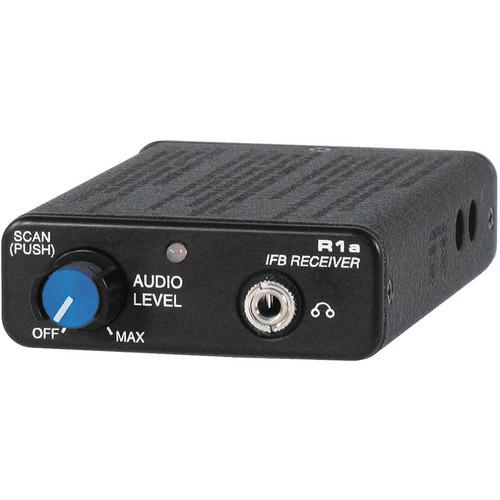

Product description The Synthesized UHF Belt-Pack IFB Receiver from Lectrosonics lets you easily monitor audio during a production. The receiver features 2 rotary switches for setting the default frequency. In addition, the receiver can remember up to 5 additional frequencies that you use most often with the volume control knob doubling as a way to switch between them. The easily replaceable 9 volt battery can be easily monitored thanks to the 3-color LED light with green being full or mostly full, yellow being partially full, and red meaning charging required. For durability, the housing is made from machined aluminum, allowing the receiver to stand up to heavy usage. - Preset (default) frequency is manually set with hex switches
- Scan mode stores up to five additional frequencies in memory
- Multi-color LED and rotary control for programming and operation
- High sensitivity for extended operating range indoors or outdoors
- Rugged machined aluminum housing
- Microprocessor-controlled
- Compandor noise reduction
In the Box Lectrosonics Synthesized UHF Belt-Pack IFB Receiver Leather Pouch 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics Synthesized UHF Belt-Pack IFB Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics IFBR1A-470 Specs | Operating Frequencies | Block 470: 470.100 - 495.600
Block 19: 486.400 - 511.900
Block 20: 512.000 - 537.500
Block 21: 537.600 - 563.100
Block 22: 563.200 - 588.700
Block 23: 588.800 - 607.900, 614.100 - 614.300
Block 24: 614.400 - 639.900
Block 25: 640.000 - 665.500
Block 26: 665.600 - 691.100
Block 27: 691.200 - 716.700
Block 28: 716.800 - 742.300
Block 29: 742.400 - 767.900
Block 944: 944.100 - 951.900 | | Frequency Control | Crystal controlled PLL | | Sensitivity | 1 uv (20 dB SINAD) | | Signal to Noise Ratio | 95 dB A-weighted | | Squelch | 90 dB | | AM Rejection | 50 dB, 10 uV to 100 mV | | Modulation Acceptance | ±20 kHz | | Spurious Rejection | < 70 dB | | Third Order Intercept Point (3 OIP) | 0 dBm | | Frequency Response | 100 Hz to 10 kHz, (±1 db) | | Pilot Tone | 29.997 kHz, 2 kHz deviation | | Audio Output | 1V RMS into 50 Ohms minimum | | Antenna | Headphone cable | | Memory | Up to 5 additional frequencies can be stored in memory | | Front Panel Controls | Single knob controls Audio Output Level, Power On, Programming and Scan Frequency Selection | | Indicators | Multi-color LED indicator for power on/battery status/channel being scanned | | Power Requirement | 9 V battery | | Battery Life | 9 V Alkaline: ~ 8 hours
9 V Lithium: ~ 20 hours | | Power Consumption | 60 mA | | Dimensions | 3.6 x 2.4 x 0.8" (9.14 x 6.10 x 2.03 cm) Dimensions are for housing only | | Weight | 7.3 oz (206.95 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 9.7 x 8.0 x 3.0" |
