User Manual for Lectrosonics UCR100-23 100 Series UHF Portable Receiver Click to enlarge the picture
Contents of the user manual for the Lectrosonics UCR100-23 100 Series UHF Portable
- Product category: Wireless Receivers Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Wireless Receivers
|
User manual for the Lectrosonics UCR100-23 100 Series UHF Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|

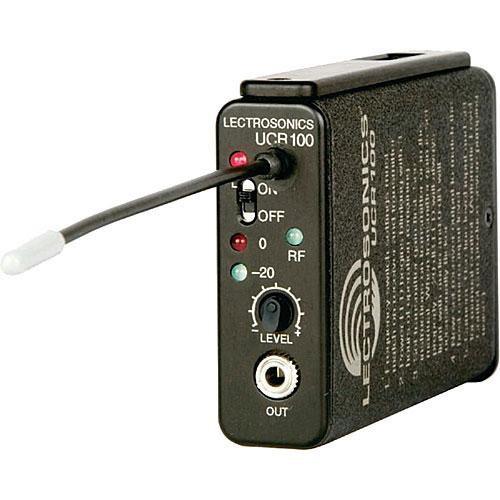

Product description The UCR100-23 100 Series UHF Portable Receiver from Lectrosonics is a compact wireless microphone receiver designed for easy, convenient operation with smaller DV camcorders. When paired with a transmitter and microphone (sold separately), the UCR100 offers 256 selectable frequencies over a 25.6 MHz band to avoid interference from local RF sources. Matching transmitters provide a full 100mW of output power, resulting in a clean reception without virtually any dropouts.In addition to the convenient compact size of the receiver, an easy access audio output adjustment knob is on the front panel. The UCR100 output operates nominally at 0 dBv (line level), but use with microphone inputs on camcorders can be achieved with an optional adapter cable. Frequency selection is achieved via recessed rotary switches located on the side panel. The UCR100 is 9V battery powered and enclosed in a lightweight, durable, machined aluminum housing. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency. - Frequency Agile
- The UCR100 boasts 256 selectable frequencies over a 25.6 MHz band, which is effective in avoiding local Radio Frequency interference.
- Flexible Output Impedance
- The UCR100 features a line level (0 dBv) output impedance, although interfacing with camcorder style mic inputs can be achieved with an optional cable.
- Rugged Construction
- Along with its compact design, machined aluminum construction give the unit its durability on the road and against the elements.
In the Box Lectrosonics UCR100-23 100 Series UHF Portable Receiver (Frequency Block 23) 9V Alkaline Battery Adjustment Tool Touch-Tab Fastener Limited 1-Year Warranty User Manual PDF 948.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics UCR100-23 100 Series UHF Portable Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics UCR100 Specs | Type of Receiver | UCR100 UHF frequency agile receiver | | RF Carrier Frequency Range | Block 23: 588.8 to 614.3 MHz | | Sensitivity | 1 uV (20 dB SINAD) | | Squelch Quieting | 90 dB | | AM Rejection | 50 dB, 10 uV to 100 mV | | Modulation Acceptance | ±20 kHz | | Spurious Rejection | > 70 dB | | Third Order Intercept | 0 dBm | | Frequency Response | 50 Hz to 18 kHz (±2 dB) | | Distortion | 1% max at 50% modulation (system) | | Signal-to-Noise Ratio | 105 dB (overall system) | | Number of Channels | 256 per block (using 25.6 MHz wide band) | | Audio Output | 0 dBv (1 Vrms) unbalanced into 600 Ohms | | Type of Outputs | 1/8" / 3.5 mm mini connector | | Power Consumption | 60 mA | | Battery Type/Approx. Life | 8 Hours with 9 V alkaline battery
15 Hours with 9 V lithium battery | | Display | Frequency selection is achieved via rotary dials located on the side of the unit | | Mounting Options | Camera or belt mount | | Antenna Type | 1/4 wave vertical (fixed) | | Dimensions (H x W x D) | 3.6 x 2.4 x 0.8" / 9.1 x 6.1 x 2.0 cm | | Weight | 7.3 oz / 207.0 g (with battery) | | | | Package Weight | 0.93 lb | | Box Dimensions (LxWxH) | 13.35 x 5.6 x 3.45" |
