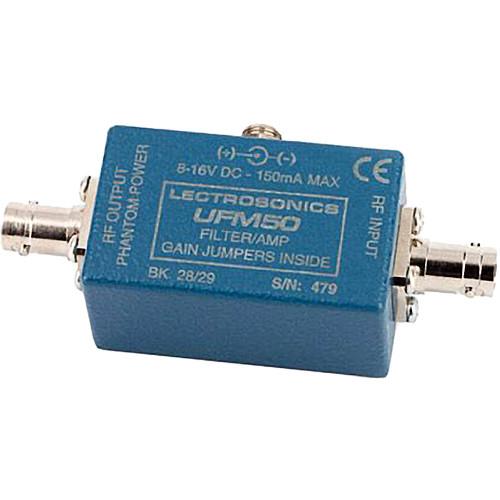

User Manual for Lectrosonics UHF Filter Amplifier Module Click to enlarge the picture
Contents of the user manual for the Lectrosonics UHF Filter Amplifier Module
- Product category: Lecterns Add-On Accessories Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Lecterns Add-On Accessories
|
User manual for the Lectrosonics UHF Filter Amplifier Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|
Product description The Lectrosonics UHF Filter/Amplifier Module (Block 23-24) provides a unique, high performance solution for antenna systems requiring long cable runs or distribution to multiple receivers or locations. The unit can be used to apply RF gain at the antenna ahead of a long run of coaxial cable to compensate for signal loss through the cable. A compact, high performance multicoupler can also be configured using the UFM50 ahead of an RF splitter to offset the loss through the splitter.
The UFM50 design places RF filtering before gain to minimize intermodulation (IM) products and prevent overload. Two transmission line ceramic resonators at the input provide filtering with a 50 MHz bandwidth. Following the filters, 12dB of gain is applied with a high quality GasFET RF amplifier with an excellent +41dBm IP3. The result is outstanding RF performance without IM or overload problems.
A switching regulator is used in the power supply to control current consumption over an input voltage range of 8-16 volts. The regulator maintains low current consumption and low heat dissipation which is especially useful in portable audio mixing common in field production and ENG.
The UFM50 can be powered from external DC or via phantom power through a coaxial cable connected to a multicoupler. The housing is constructed of cast aluminum with a brushed aluminum cover plate. Two rugged BNC connectors and a threaded, locking power jack provide secure connections for rugged field conditions and for long-term installations. - 50 MHz passband on center frequencies from 560 to 865 MHz
- Ceramic resonator filters
- +41dBm 3rd order intercept
- Switching regulator for 8-16V power at constant power dissipation to minimize heat at high voltage
- Jumperable attenuators for +5dB, +8dB and +12dB total gain
- External power or phantom power at output jack from UMC16A multicoupler
In the Box Lectrosonics UHF Filter/Amplifier Module (Block 23-24) 6' DC Locking Style Mating Connector Assembly for Powering Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics UHF Filter Amplifier Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics UFM50-2324 Specs | Third Order Intercept | +27 dBm @ input (+41 dBm output) | | Inputs | RF in: BNC
DC in: 2.1 mm locking power jack | | Output | RF out: BNC (and phantom power in) | | Range | Block 23-24 | | Bandwidth | Filter: 50 MHz, factory set | | Gain | RF: +12 dB with 0 dB attenuator
+8 dB with 4 dB attenuator
+5 dB with 7 dB attenuator | | Power Requirements | 8 V DC (130 mA) up to 16 volts DC (70 mA) at the DC input jack, auto reset circuit breaker | | Phantom Power | DC voltage supplied by UMC16A BNC input jack or BIAS-T power inserter | | Power Consumption | 1.075 W nominal (switching regulator) | | Compliance | CE EN55022 and EN50082-1:1998 | | Dimensions | 2.26 x 1.39 x 1.14" (5.74 x 3.53 x 2.9 cm) (not including BNCs) | | Weight | 3.3 oz (93.55 g) |
