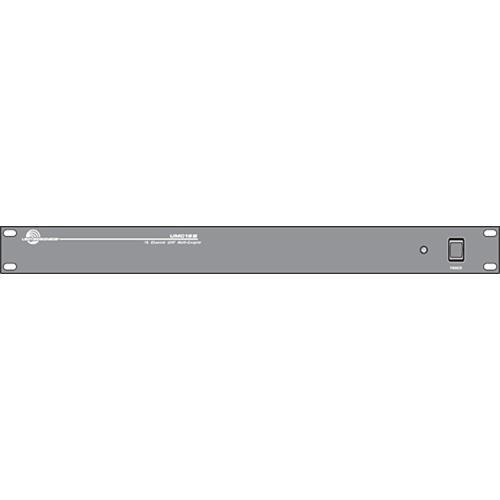

Product description The Lectrosonics UMC 16B 8-Channel Wide Band Antenna Multicoupler distributes UHF diversity RF signal from 2 antennas, to the 8 connected wireless microphone receivers, eliminating cable clutter and maximizing signal efficiency. The wide-band operation covers 470 to 691 MHz, and user switchable jumper settings enable DC power out of the BNC connectors for powering Lectrosonics UFM50 or UFM230 filter / amplifier units when using long cable runs. The UMC 16B features a rugged metal enclosure and occupies a single space in any 19-inch rack. - 2 In, 8 out wide band UHF antenna distribution over 537 to 767MHz
- Switchable jumpers enable power to the BNC connectors
- Durable all metal, single-space 19-inch rack enclosure
In the Box Lectrosonics UMC 16B 8-Channel Wide Band Antenna Multicoupler (470 to 691 MHz) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics UMC 16B 8-Channel Wide Band Antenna Multicoupler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics UMC16BL - 230 MHZ Specs | # Of Channels | 8 | | RF Input | BNC x2 | | RF Output | BNC x8 | | RF Frequency Range | UMC 16B: 470 to 691 MHz, factory set | | Attenuation / Gain | None | | Operating Voltage | 12 to 18 VDC; overload protection provided by internal auto resetting poly fuse | | Weight | 2.6 lb (1.18 kg) | | Dimensions | 19 x 7 x 1.75" (482.6 x 177.8 x 44.45 mm) | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 3.0 x 2.0 x 1.0" |
