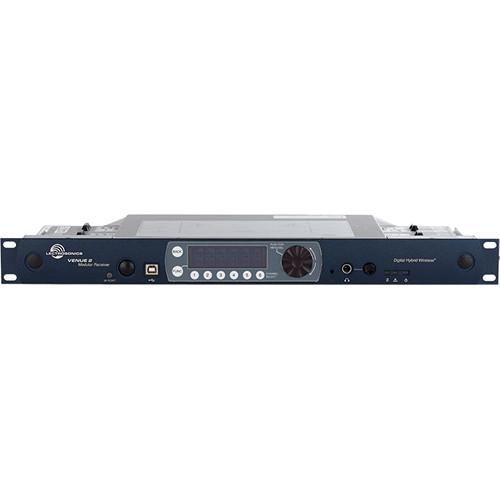

Product description The Venue 2 from Lectrosonics is a modular rackmount unit that can be used with a variety of transmitters from Lectrosonics, as well as transmitters from other manufacturers. Its wideband design offers the flexibility needed in congested RF environments. The Venue receiver is a "system" that consists of a master unit and up to six receiver modules, and a software interface. It can be used for sound reinforcement applications such as live stage, theater, boardrooms, in houses of worship, and more. The Venue 2 mainframe assembly houses the power supply, antenna and RF distribution, user interface and control ports, and up to six wireless receiver modules (sold separately), providing a significant cost per channel with the modules sharing these resources. The built-in RF multicoupler allows up to three mainframes to operate from a single pair of antennas, resulting in an additional cost savings as a multi-channel system. The mainframe front panel provides an LCD for system setup, monitoring, and troubleshooting during normal operation. The LCD shows RF and audio levels, diversity status, pilot tone status, and transmitter battery status for all six receivers at the same time. Furthermore, a built-in analyzer scans the tunable spectrum of the receiver to assist in finding clear operating frequencies and presents the results in graphical format on the LCD. Also, wireless designer software is included that simplifies setup and exposes all features in an easily navigable GUI. - Receiver Modules
- Up to six receiver modules (not included) can be installed in each mainframe
- Audio Outputs
- Six balanced XLR audio-output jacks connect the Venue receiver to external equipment. By default, pin 2 is audio positive (+). The polarity of each output can be reversed in the LCD setup menus or with the included software
- RS-232 Port
- A serial RS-232 interface is provided for setup and control of a Venue 2 system from computers or other devices using industry-standard RS-232 communication links
- USB Port
- Standard USB Version 1.1 port for setup and control of the receiver from computer systems using Windows 7, 8, 10, and Vista operating systems
- Multicoupler Outputs
- The built-in antenna multicoupler provides RF distribution for the six receiver modules and a "loop thru" output at the same level to deliver the RF signal to another Venue 2 receiver
- Antenna Inputs
- The two outermost BNC connectors are provided for use with right-angle whip antennas, cables from remote antennas, or cables from another Venue receiver
In the Box Lectrosonics Venue 2 Six-Channel Modular Receiver (470.100 to 691.175 MHz) USB Cable Wireless Designer Software Power Supply for Digital Encrypted System (15 VDC) MC65 TRS ¼" to 3.5mm Cable (10', 3.05 m) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics Venue 2 Six-Channel Modular Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics VRM2WBL Specs | Operating Frequency Range | Tuning range A1: 470.100 - 537.575 MHz (blocks 470, 19, 20)
Tuning range B1: 537.600 - 614.375 MHz (blocks 21, 22, 23)
Tuning range C1: 614.400 - 691.175 MHz (blocks 24, 25, 26) | | Frequency Selection | Up to 3072 frequencies | | Frequency Selection Steps | Selectable; 100 or 25 kHz | | Digital Latency | 1.5 ms (receiver only in hybrid mode)
3.0 ms (receiver and transmitter in hybrid mode)
3.0 ms (receiver only in analog-compatibility mode) | | Wideband Multicoupler | Built in antenna mulitcoupler covers a 230 MHz range | | Pilot Tone | 25 to 32 kHz; 5 kHz deviation; unique pilot-tone frequency for each selected carrier frequency (Hybrid mode) | | Deviation | ±75 kHz (max) (hybrid mode) | | Receiver Type | Triple conversion superheterodyne | | Frequency Stability | ±0.001 % | | Bandwidth | Multicoupler Bandwidth: 470.100 to 691.175 MHz
Front End Bandwidth:
iQ filter wide mode: 15 MHz
iQ filter narrow mode: 10 MHz | | Sensitivity | 0.9 uV @ 20 dB Sinad | | AM Rejection | >60 dB, 2 uV to 1 V | | Image & Spurious Rejection | 85 dB | | Third Order Intercept | iQ Filter Wide Mode: +5 dBm
iQ Filter Narrow Mode: +12 dBm | | Diversity Method | Antenna combining phase switching
Opti-blend ratio diversity | | FM Detector | Digital pulse counting detector @ 300 kHz | | Overall Frequency Response | 32 Hz to 20 kHz (+/-1 dB), overall system (400 Series mode) | | Total Harmonic Distortion (THD) | 0.2% (typical) (400 Series mode) | | Signal-to-Noise Ratio | In Hybrid Mode:
Smart NR Off, No Limiting: 103.5 dB
Smart NR Normal, No Limiting: 107.0 dB
Smart NR Full, No Limiting 108.5 dB
Smart NR Off, With Limiting: 108.5 dB
Smart NR Normal, With Limiting: 111.5 dB
Smart NR Full, With Limiting: 113.5 dB | | Dynamic Range | Input: 125 dB (with full transmitter limiting) | | Audio Output Level | -15 to +8 dBu, in 1 dB increments | | LCD | High-resolution graphical display | | Power Requirements | 10 VDC/2 A to 18 VDC/1.2 A | | Type of Output(s) | 6x balanced 3-pin XLR audio outputs
Antenna A / B - BNC I/O
USB Port
RS-232 port | | Headphone Monitoring | 1/4" TRS phone with level control (front panel) | | LCD Display | High-resolution graphical display | | Mounting Options | 19" rackmountable | | Antenna Type | Coaxial antennas (not included) | | Dimensions (W x H x D) | 19.0 x 1.75 x 7.75" (48.26 x 4.45 x 19.67 cm) | | Weight | 4.4 lb (1984 g) with 6 modules | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 24.3 x 14.5 x 6.6" |
