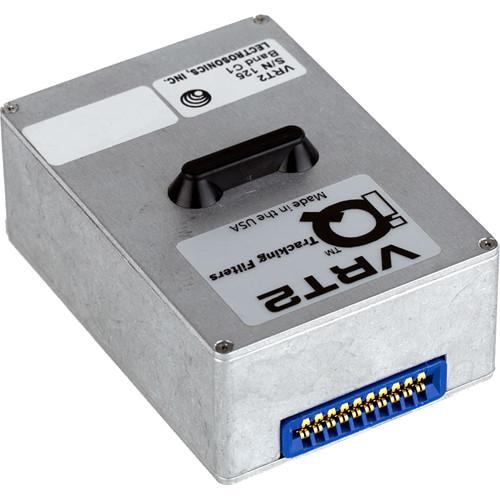

User Manual for Lectrosonics VRT2 Receiver Module Click to enlarge the picture
Contents of the user manual for the Lectrosonics VRT2 Receiver Module
- Product category: Wireless Receivers Lectrosonics
- Brand: Lectrosonics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lectrosonics Wireless Receivers
|
User manual for the Lectrosonics VRT2 Receiver Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lectrosonics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!
|
Product description The VRT2 Receiver Module from Lectrosonics supports up to 3072 tunable frequencies across a 75 MHz range (three standard Lectrosonics blocks), matching the tuning ranges of the SSM, LT, and LMb "large bandwidth" transmitters. Up to six modules can be used simultaneously when installed in the Lectrosonics 1 RU Venue 2 receiver main frame (sold separately), and utilized in wireless applications for live stage, theater, houses of worship, and more. The VRT2 modules feature IQ dynamic-tracking filters, which accommodate a wide range of transmitter-RF power levels while also enabling tight channel spacing – critical features as the RF spectrum continues to shrink. Furthermore, the receiver modules can be operated independently, each with switched diversity reception for a total of six audio channels, or operated in pairs for a more robust diversity reception with one audio channel per module pair. Finally, the VRT2 modules are easy to change, with no tools required, and can be mixed and matched within one frame in any position, except when paired for ratio-diversity reception. VRT2 modules are not compatible with older Venue (VRM, VRMWB, and VRMWBL) frames. - IQ Front-End Filtering
- When the incoming RF signal is strong, the iQ filter switches to a narrowband mode with reduced gain for additional suppression of signals above and below the operating frequency. When the incoming RF signal level weakens, the filter switches to an extended-range mode for maximum sensitivity in the receiver module
- Easy-to-Install
- The receiver modules interface with the main assembly through multi-pin connectors on either side of the chassis
In the Box Lectrosonics VRT2 Receiver Module (A1: 470.100 - 537.575 MHz) Retaining Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics VRT2 Receiver Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics VRT2-A1 Specs | Frequency Bandwidth | A1: 470.100 - 537.575 MHz | | Channel Assignment | 470, 19, and 20 | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 3.7 x 3.4 x 1.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
