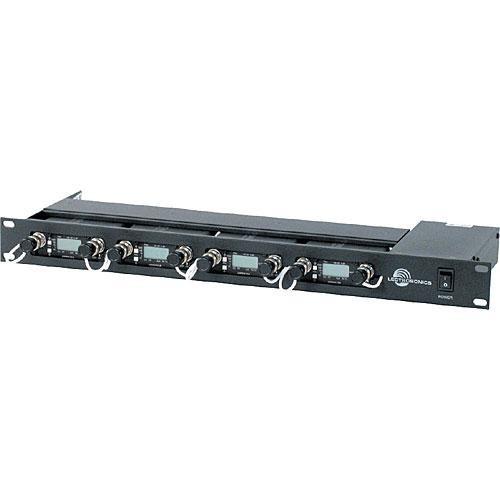

Product description The Lectrosonics Wideband Multi-Coupler is a rack-mountable unit, designed to efficiently distribute signal and power to 4 installed Lectrosonics portable diversity receivers. The Multi-Coupler supports blocks 21 through 26 and preserves the sensitivity and overload performance of the installed receivers.The solid, rack-mounted assembly is powered with an external 11 to 18VDC power supply (included) with individual auto-reset fuses for each receiver. The Multi-Coupler is a solid choice for operating multiple Lectrosonics portable receivers in performances, crucial recordings, production, etc. - Supports 4 Lectrosonics receivers
- Wideband reception for flexible operation
- Stable reception and powering
In the Box Lectrosonics Wideband UHF Antenna Multi-Coupler for Lectrosonics Portable Diversity Receivers 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lectrosonics Wideband UHF Antenna Multi-Coupler for Lectrosonics Portable Diversity Receivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLectrosonics UMCWB Specs | Carrier Frequency Range | 470 to 692MHz | | Connector Type | RF Inputs: BNC Connectors x2
RF Ouputs: BNC Connectors x8 | | Gain Control | Not Specified by Manufacturer | | Impedance | Not Specified by Manufacturer | | Operating Voltage | Input: +11 to +18VDC
Consumption: 2 Amps Max. | | Weight | 5 lbs (2.26kg) | | Dimensions | 19 x 1.75 x 16.5" (48.26 x 4.44 x 41.91cm) | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 23.8 x 11.4 x 2.7" |
