Product description

• HMa UHF Plug-On Wireless Transmitter (A1: 470.100 to 537.575 MHz)
  • Hands On Review : Lectrosonics L-Series Wireless System

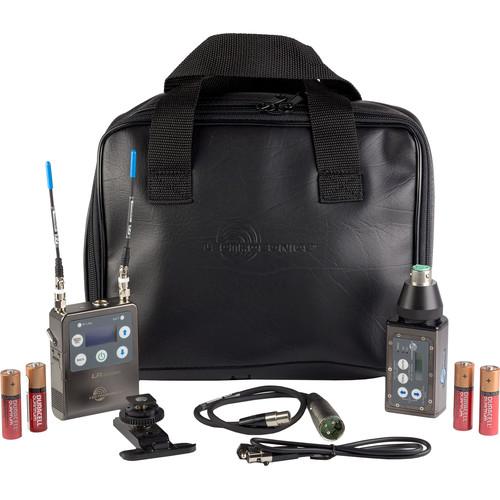

  The HMa from Lectrosonics is a UHF plug-on transmitter that accepts mic or line-level signals via a standard XLR connector. It has selectable 5, 15, & 48V phantom power and can be used when paired with a Lectrosonics receiver and handheld microphone - sold separately - in applications for ENG (Electronic News Gathering), EFP (Electronic Field Productions), interviews for broadcast TV, and more. The input amplifier of the HMa transmitter uses an ultra-low noise op-amp for quiet operation and is gain controlled with a wide range dual envelope limiter. A 24-bit A to D converter digitizes the audio, and filters the supersonic noise above 21 kHz. The resulting signal is encoded with a proprietary algorithm to produce an analog data signal for RF transmission. Featuring a wide tuning range of 76 MHz, with tuning steps in increments of 100 kHz or 25 kHz for up to 3072 frequencies, the HMa transmitter also covers three standard 25.6 MHz Lectrosonics frequency blocks. Each block provides 256 different pilot tone frequencies. Legacy analog wireless microphone and IFB receivers are designed to work in DSP compatibility mode, as well as some receivers from other manufacturers. Finally, the transmitter is powered by two AA batteries, with status indicated by a multi-color LED. A USB port is also provided for firmware updates, and an IR (infrared) port is included to simplify setup with IR enabled receivers.
  • Digital Hybrid Wireless is a revolutionary design that combines digital audio with an analog FM radio link to provide outstanding audio quality and the exemplary RF performance of the finest analog wireless systems
  • Multi-color LED status indicator
  • Selectable 50/100 mW output power
  • 76 MHz tuning range in 100 kHz or 25 kHz steps for up to 3072 frequencies
  • The antenna is formed between the machined aluminum housing of the transmitter and the attached microphone or cable. It functions as a dipole radiator when attached to a hand-held microphone and somewhat like a ground plane antenna when connected with a cable or plugged directly into a mixer
• L Series LR Mini Hybrid Portable Wireless Receiver (A1: 470.100 to 537.575 MHz) The LR Wireless Receiver from Lectrosonics is a digital hybrid ultra-compact portable wireless bodypack receiver with 75 MHz tuning bandwidth and with tracking front-end filters. When paired with a transmitter and microphone it can be used to capture audio in environments for applications such as broadcast TV, video production, ENG field work, and more. The LR has several other features to help provide good clear audio, such as compatibility modes to allow the receiver to operate with older analog receivers. Dual antenna diversity helps to improve range and resistance to dropouts. There is also a built-in RF spectrum analyzer and SmartTune scan, which make finding a clean frequency on-site quick and easy. In addition, the LR receiver is enclosed in machined-aluminum housing and built with detachable antennas that allow for remote antenna mounting. LCD and membrane switch interfaces provide clear information for setup and status monitoring. This transmitter operates in the A1 frequency band between 470.100 to 537.575 MHz.
• LRSHOE Receiver Mount Kit for LR Receiver The LRSHOE Receiver Mount Kit from Lectrosonics is an accessory shoe for the LR Digital Hybrid wireless receiver. It can be used to mount the receiver to a DSLR type camera or accessory bracket. This LRSHOE kit is supplied with all the parts needed to mount the receiver securely.
• MCSRXLR TA3 to XLR Cable for SR Receiver (12") The Lectrosonics MCSRXLR TA3 to XLR Cable measures 12" (30.48cm) and is intended for use with the SR receiver, when used with the External Mounting Kit SREXT. The XLR connector adapts to the balanced inputs on professional cameras.
• MCLRTRS Audio Patch Cord for LR Receiver with 1/8" TRS Camera Input (20") The MCLRTRS from Lectrosonics is an 20" audio patch cord with a TA3F (mini XLR) on one end and a standard 1/8" (3.5mm) TRS (stereo) mini plug on the other end. It is designed for use with LR series receivers, and also works with SR series receivers with the SREXT adapter installed. It can be used for audio applications such as DSLR cameras, recorders, and more. Pin 2 of the TA3 connector feeds the tip and ring connections on the mini plug so both channels of a stereo recorder receive audio.
• CCMINI Zippered Carrying Case The Lectrosonics CCMINI Zippered Carrying Case is a vinyl case made to carry compact wireless microphone systems.
  • Vinyl zippered carrying case
  • 2 Interior compartments
  Compatible with;
  • • Compact wireless microphone systems

• PHTRAN3 Leather Pouch

• 2 x AA Alkaline Batteries

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• LRSHOE-MO

• Cold Foot Mount

• Thumb Nut

• Washer

• Jam Nut

• Limited 1-Year Warranty

• 90-Day Warranty

• Limited 1-Year Warranty

• One Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Lectrosonics ZS-LRHMa Wireless Plug-On System and L-Series Kit can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Lectrosonics ZS-LRHMa Wireless Plug-On System and L-Series Kit can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Lectrosonics ZS-LRHMa Wireless Plug-On System and L-Series Kit (PDF file, 2.82 MB)

Technical parameters

• HMa UHF Plug-On Wireless Transmitter (A1: 470.100 to 537.575 MHz)

  Frequency Selection Steps	Selectable; 100 kHz or 25 kHz
  Operating Frequency	A1: 470.100 to 537.575 MHz
  RF Power Output	Selectable 50/100 mW
  Pilot Tone	25 to 32 kHz; 5 kHz deviation (in the Digital Hybrid mode)
  Frequency Stability	± 0.002%
  Deviation	± 75 kHz (max in Digital Hybrid mode)
  Spurious Radiation	60 dB below carrier
  Equivalent Input Noise	-125 dBV (A-weighted)
  Input Level	Nominal 2 mV to 300 mV, before limiting; greater than 1V maximum, with limiting
  Input Impedance	300 ohms
  Limiter	Dual envelope "soft" limiter; greater than 30 dB range
  Gain Range	55 dB; panel mounted membrane switches
  Modulation	Dual bi-color LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation
  Frequency Response	35 Hz to 20 kHz (+/-1 dB)
  Low Frequency Roll-Off	Adjustable for -3 dB @ 30, 50, 70 Hz
  THD	0.2% (typ. 100 Hz to 20 kHz)
  Signal to Noise Ratio	SmartNR Off no limiting: 103.5 dB limiting: 108 dB SmartNR Normal no limiting: 107 dB limiting: 111.5 dB SmartNR Full no limiting: 108.5 dB limiting: 113 dB
  Dynamic Range	125 dB (with full Tx limiting)
  Controls and Indicators	Power/Phantom "ON-OFF" switch Phantom voltage selector switch Audio input gain knob LCD w/ membrane switches LED audio level indicators
  Audio Input Jack	Standard 3-pin XLR (female)
  Phantom Power	Off; 5 V @ 18 mA max; 15 V @ 15 mA max; 48 V @ 4 mA max
  Antenna	Housing and attached microphone form the antenna
  Battery	Two 1.5 Volt AA lithium or rechargeable NiMH recommended
  Battery Life	Alkaline No Phantom: 5 hrs 48 V on: 3.5 hrs
  Emission Standard	180KF3E
  Dimensions	4.25 x 1.62 x 1.38" / 10.8 x 4.1 x 3.5 cm
  Weight	7.5 oz / 211 g with AA batteries

  Box Dimensions (LxWxH)	9.8 x 7.8 x 3.0"

• L Series LR Mini Hybrid Portable Wireless Receiver (A1: 470.100 to 537.575 MHz)

  Channel	A1
  Operating Frequencies	470.100 to 537.575 MHz
  Frequency Selection Steps	Selectable 25 or 100 kHz
  Receiver Type	Dual conversion, superheterodyne
  IF Frequency	243.950 MHz and 250.000 kHz
  Frequency Stability	± 0.001%
  Front End Bandwidth	20 MHz @ -3 dB
  Sensitivity	20 dB SINAD: 1.0 uV (-107 dBm), A weighted 60 dB Quieting: 2.2 uV (-100 dBm), A weighted
  Squelch Quieting	> 100 dB typical
  Modulation Acceptance	+/-100 kHz max. varies with selected compatibility mode
  Image and Spurious Rejection	85 dB
  Third Order Intercept	0 dBm
  Diversity Method	SmartDiversity phased antenna combining
  FM Detector	Digital pulse counting detector
  RF Spectrum Analyzer	Single and multiple block scanning modes with coarse and fine views of results
  Antenna Inputs	2x 50 ohms SMA female connectors
  Audio Output	1x TA3 male (mini XLR) balanced output
  Audio Output Level	Adjustable -50 to +5 dBu in 1 dB steps, unbalanced output level is 6 dB lower
  Front Panel Controls	Sealed panel with membrane switches LCD for setup menus and monitoring
  Audio Test Tone	1 kHz, -50 dBu to +5 dBu output (balanced), 1% THD
  Transmitter Battery Type Selection	AA alkaline or lithium Timer available for use with alkaline, lithium and HiMH
  Audio Polarity Selection	Normal or inverted
  Compatibility Modes	Digital Hybrid (North American and European) Lectrosonics 100, 200 and 300 series Lectrosonics IFB Non-Lectrosonics modes 3, 6 an 7 (contact the factory for details)
  SmartNR (Noise Reduction)	Off, Normal, Full modes (available in Digital Hybrid mode only)

  Frequency Response	32 Hz to 20 kHz (+/- 1 dB) receiver only (see transmitter documentation for overall system response)
  Total Harmonic Distortion (THD)	<0.4 (0.2% typical in Digital Hybrid mode)
  Top Panel Features	1 x TA3M audio output jack 2 x SMA antenna jacks 1 x IR (infrared) port
  Battery / Runtime	4 hours, AA alkaline
  Operating Temperature	-4 to 32 °F (-20 to +50°C)
  Dimensions (L x W x H)	3.21 x 2.45 x 0.84" (82 x 62 x 21 mm)
  Weight	6.54 oz (185.4 g) with two AA lithium batteries

  Box Dimensions (LxWxH)	9.7 x 8.1 x 2.9"

• LRSHOE Receiver Mount Kit for LR Receiver

  Dimensions	Not listed by manufacturer
  Weight	Not listed by manufacturer

  Box Dimensions (LxWxH)	6.4 x 3.95 x 0.65"

• MCSRXLR TA3 to XLR Cable for SR Receiver (12")

  Box Dimensions (LxWxH)	3.0 x 2.6 x 0.6"

• MCLRTRS Audio Patch Cord for LR Receiver with 1/8" TRS Camera Input (20")

  Connector 1	1/8" (3.5 mm) TRS
  Connector 2	TA3F
  Length	20" (51 cm)
  Weight	Not listed by manufacturer

  Box Dimensions (LxWxH)	5.3 x 1.8 x 0.55"

• CCMINI Zippered Carrying Case

  Material	Vinyl
  Type of Closure	Zipper
  Interior Dimensions	10 x 7.0 x 2.0" (25.4 x 17.8 x 5.1cm) (LxWxH)
  Carrying/Transport Options	Carrying handle
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	10.0 x 9.9 x 1.0"
