User Manual for LEDLENSER F1 LED Flashlight Click to enlarge the picture
Contents of the user manual for the LEDLENSER F1 LED Flashlight
- Product category: Handheld Flashlights LEDLENSER
- Brand: LEDLENSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LEDLENSER Handheld Flashlights
 |
User manual for the LEDLENSER F1 LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LEDLENSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LEDLENSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LEDLENSER product will considerably shorten its lifespan!
|

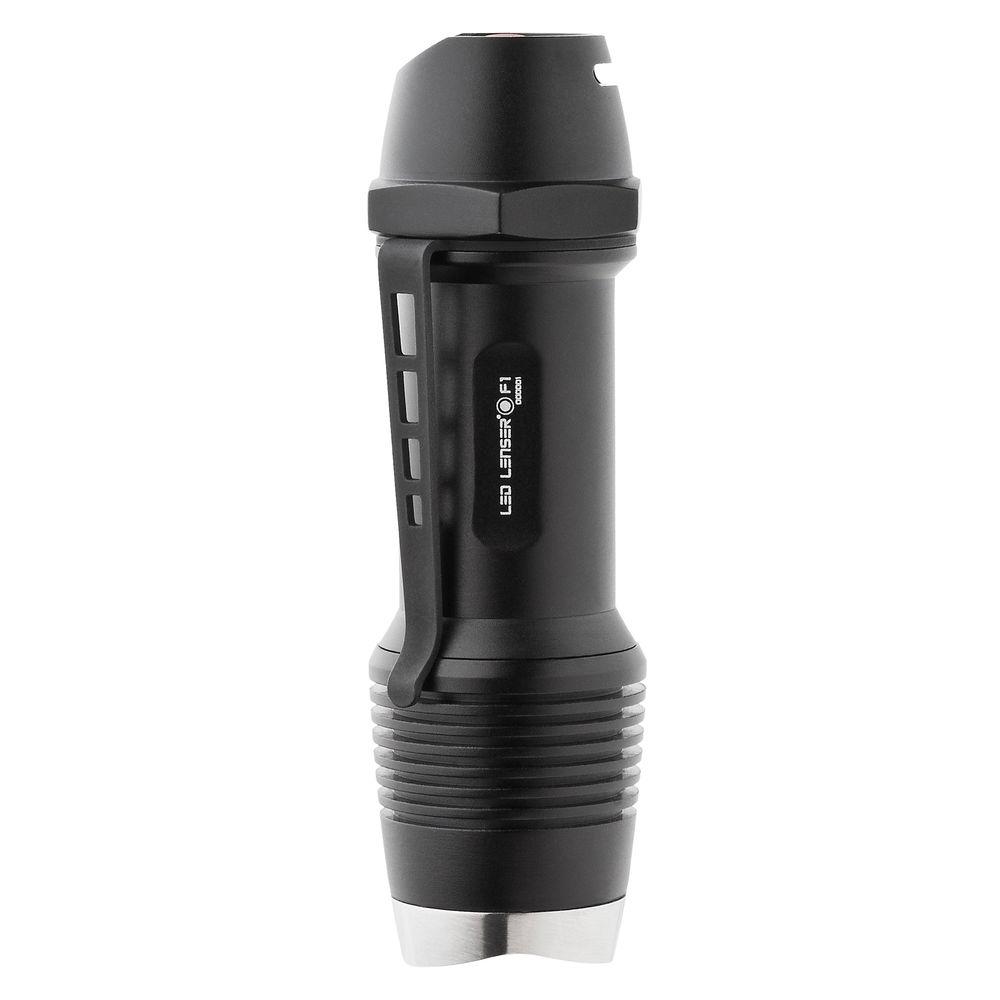

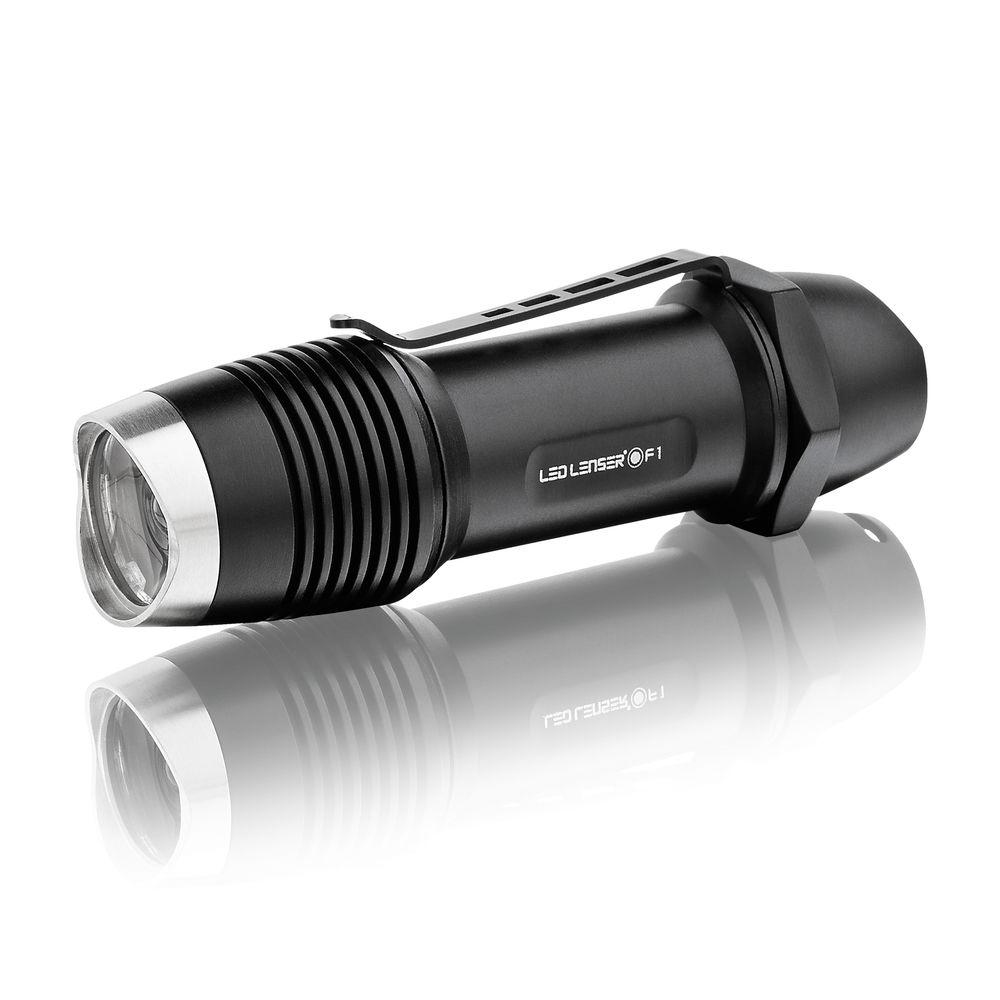

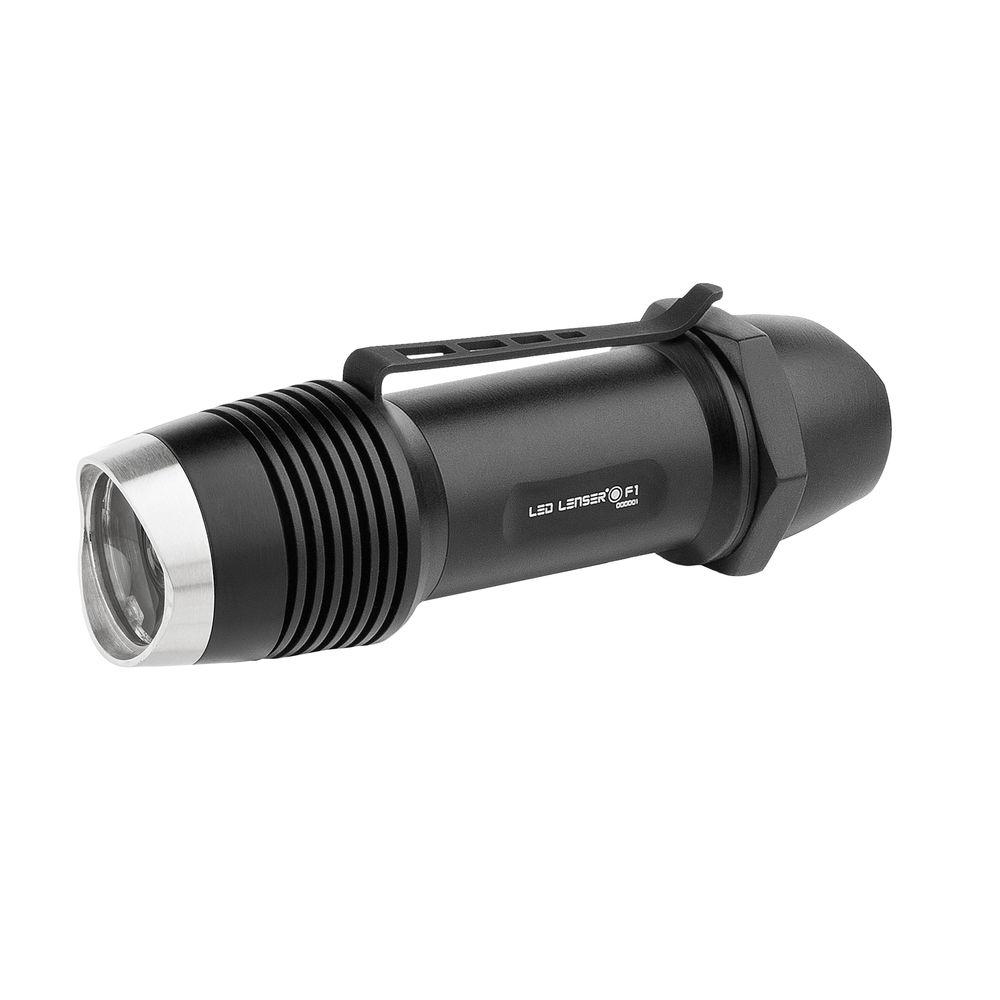

Product description The black F1 LED Flashlight from Ledlenser is less than four inches long, delivers a maximum of 400 lumens, and operates on one lithium CR-123 battery. A click-type tailcap push button enables you to select one of four lighting modes: normal, low, strobe, and momentary; and since the switch is recessed, it can be propped up on its tail without falling.The housing is made of a lightweight and durable aluminum alloy with a corrosion and scratch-resistant black type III hard-anodized finish. It is O-ring sealed to give an IPX8 rating to make it waterproof to a depth of 8.2-feet. This flashlight has an anti-roll collar set toward the back of the housing allowing the user to use various tactical light/pistol grips. Heat dissipating fins helps keep the head cool while overheat protection circuitry monitors the temperature and automatically steps down the output to prevent heat damage. - Light Performance
-
- Low: 60 lumens
- High: 400 lumens
- White LED emitter
- Overheat protection circuitry automatically steps down output to prevent heat damage
- Switching
-
- Location: Tailcap
- Type: Two-stage click-type pushbutton
- Press for momentary activation
- Click once for normal brightness mode
- Click twice for low brightness mode
- Click three times for strobe mode
- Construction Details
-
- Lightweight aluminum alloy housing
- Black Type III hard anodized finish
- Anti-roll body design
- Stainless-steel bezel ring protects head and window from drops and impacts
- Removable and reversible pocket clip
- Waterproof to depth of 8.2' (2.5m)
- Can be propped up on its tail without falling
- Heat-dissipating fins machined into head
UPC: 847706014470 In the Box LEDLENSER F1 LED Flashlight (Black) Lanyard Cleaning Cloth Brush Bezel Ring CR123 Battery Pocket Clip Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LEDLENSER F1 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLEDLENSER 880122 Specs | | | Lumen Output | High: 400 Lumens
Low: 60 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 2 Hours
Low: 3.5 Hours | | Battery Type | 1 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 8.2' / 2.5 m, IPX8 | | Dimensions |
