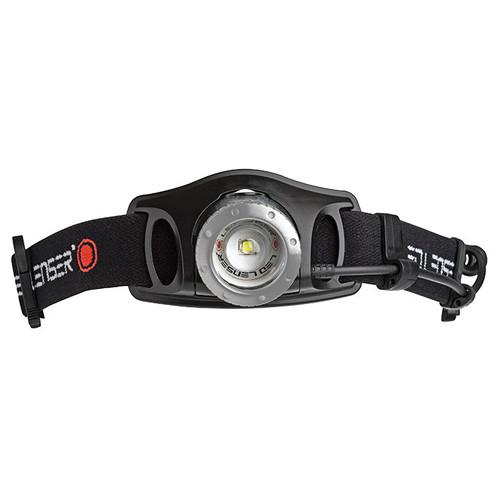

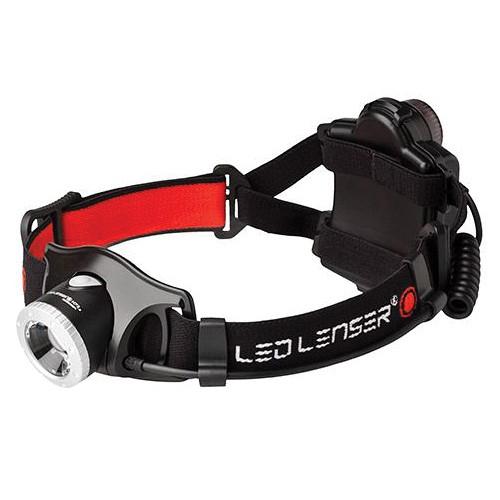

User Manual for LEDLENSER H7R.2 Headlight Click to enlarge the picture
Contents of the user manual for the LEDLENSER H7R.2 Headlight
- Product category: Headlamps LEDLENSER
- Brand: LEDLENSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LEDLENSER Headlamps
 |
User manual for the LEDLENSER H7R.2 Headlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LEDLENSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LEDLENSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LEDLENSER product will considerably shorten its lifespan!
|
Product description The H7R.2 Headlight from Ledlenser is a programmable headlight with two constant-on brightness output modes, a boost, a safety, and a strobe mode. Its high output mode delivers 300 lumens of light for a maximum of four hours, and its low output mode delivers 20 lumens for a maximum of 60 hours. You can continuously adjust the brightness and the strobe rate with a dial knob located on the battery compartment. If you need a very bright burst of light, use the boost function which will automatically revert to your current output mode after a few seconds.This headlight has an energy saving mode and a constant output power management mode. The energy saving mode is designed to extend battery life. It will vary the LED brightness according to the amount of remaining battery charge. The constant output mode will maintain a set LED brightness level until the battery is depleted. Both of these power management modes are executed by a built-in micro-controller and a temperature control unit. There is also a power lock function which prevents accidental battery drain.The H7R.2 is equipped with the Advanced Focus System which combines a reflector and a lens. It produces an evenly illuminated beam spot during entire focusing range. Twist the headlight bezel to focus the beam.The battery compartment is located in the back and accommodates one Li-ion rechargeable battery pack or 4 disposable AAA batteries. There are two rear LEDs which serve as a red safety light, a battery status and a charging indicator.
The headlight is IPX4 rated for water resistance, has an adjustable tilt for setting a beam direction and adjustable headband to ensure a comfortable fit. Light Performance -
- Low: 20 lumens
- High: 300 lumens
- White front LED serves as a main illumination source
- Two rear LEDs serve as a red safety light, a battery status and a charging indicator
- Advanced Focus System creates an even beam spot during focusing
- Programmable low, high, boost, safety, and strobe output modes
- Energy saving mode extends a battery life
- Constant output mode maintains constant brightness output
- Variable brightness
- Variable strobe rate
Switching -
- Front Top Click-Type Pushbutton:
Turns on and off all modes
Activates boost and power lock function - Battery Compartment Dial Knob:
Switches between low, high, boost, safety, and strobe output modes
Continuously adjusts brightness and strobe rate Construction Details -

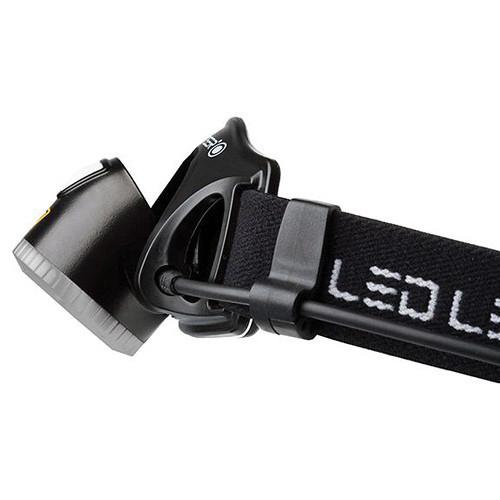

- Adjustable headlight tilt for precise beam direction
- Adjustable headband for a tight and a secure fit

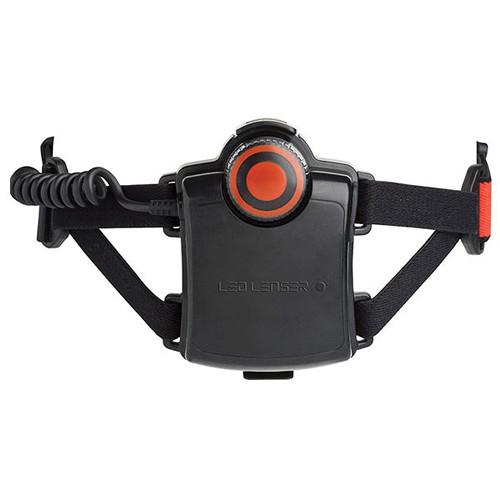

- Rear battery compartment allows increased power capacity and provides balance
- IPX4 Rated, water resistant against splashing water
Electronics Details -
- USB charger allows charging from a computer USB port
- Built-in microcontroller executes various output modes
- Built-in temperature control unit maintains LED temperature for a constant output mode
- The battery compartment accommodates one rechargeable battery pack or four AAA batteries
UPC: 847706002224 In the Box LEDLENSER H7R.2 Headlight Rechargeable Li-ion battery pack USB charger Wall power supply Lifetime 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LEDLENSER H7R.2 Headlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLEDLENSER H7R.2 Specs | | | Lumen Output | Low: 20 Lumens
High: 300 Lumens | | Illumination Source | 1 x LED | | Charging Time | 5 Hours | | | | Water Resistance | Water Resistant, IPX4 | | Weight | 5.8 oz / 165 g | | | | Package Weight | 0.66 lb | | Box Dimensions (LxWxH) | 4.15 x 3.95 x 3.95" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
