User Manual for LEDLENSER P5R.2 Flashlight Click to enlarge the picture
Contents of the user manual for the LEDLENSER P5R.2 Flashlight
- Product category: Handheld Flashlights LEDLENSER
- Brand: LEDLENSER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LEDLENSER Handheld Flashlights
|
User manual for the LEDLENSER P5R.2 Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LEDLENSER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LEDLENSER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LEDLENSER product will considerably shorten its lifespan!
|

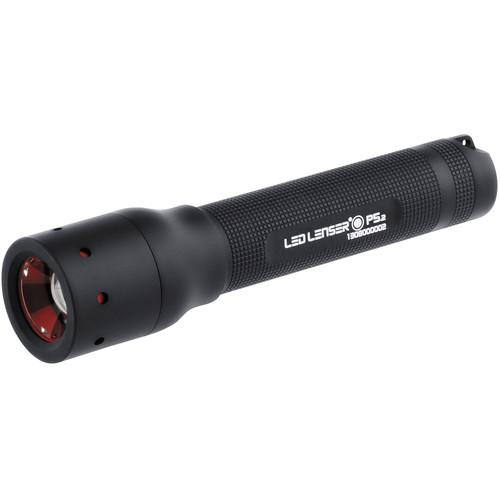

Product description The P5R.2 Flashlight from Ledlenser has three modes of operation: a high brightness, a low brightness, and a strobe mode. Its high brightness mode delivers 270 lumens of light for a maximum of four hours. Its low brightness mode delivers 20 lumens for a maximum of 12 hours. This flashlight is equipped with the Advanced Focus System which combines a reflector and a lens. It produces an evenly illuminated beam spot during entire focusing range. Use the tailcap pushbutton to turn on the flashlight and switch between a high, a low, and strobe output modes. Push out the head bezel to focus the beam and twist it to the left to lock this focus position. The flashlight has IPX4-rated water resistant housing, a matte black finish, and a textured handle.
To charge this flashlight, simply bring the tailcap into contact with the included magnetic USB charger head and it will snap into a socket on the charging head. This magnetic attachment is strong enough to maintain a vertical charging orientation. The included charging dock can be placed horizontally or mounted to a wall. The included snap-on belt clip provides 360° rotation and will maintain a chosen flashlight position for a hands-free illumination. Also included are a wall power supply and a lanyard. Light Performance -
- Low: 20 lumens
- High: 270 lumens
- White LED light
- Advanced Focus System creates an even spot during focusing
- Programmable low, high, and strobe output modes
Switching -
- Two-stage click-type tailcap pushbutton switch
- Press once for momentary activation
- Click once for normal brightness mode
- Press once and click once for low brightness mode
- Press twice and click once for strobe mode
Construction Details -
- Textured handle provides a good grip
- Quick focusing is achieved by pushing and pulling on a bezel head with a thumb
- Focus lock is achieved by twisting the head to the left at a desired focus position
- Magnetic attachment to the USB charger makes charging the flashlight easy
- USB charger draws power from a laptop or a wall power supply
- IPX4 rated for resistance against splashing water
- Matte black finish
UPC: 847706001142 In the Box LEDLENSER P5R.2 Flashlight ICR-14500, rechargeable lithium-ion battery USB charger Wall power supply Charging dock Clip Lanyard Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LEDLENSER P5R.2 Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLEDLENSER P5R.2 Specs | | | Lumen Output | High: 270 Lumens
Low: 20 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 4 Hours
Low: 12 Hours | | Battery Type | 1 x 14500 | | Charging Time | 2.5 Hours | | | | Water Resistance | Water Resistant, IPX4 | | Dimensions |
