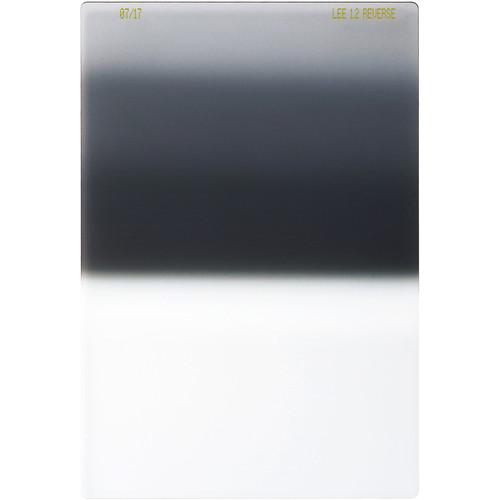

User Manual for LEE Filters 100 x 150mm Reverse-Graduated 1.2 Filter Click to enlarge the picture
Contents of the user manual for the LEE Filters 100 x 150mm Reverse-Graduated
- Product category: Graduated Neutral Density LEE Filters
- Brand: LEE Filters
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LEE Filters Graduated Neutral Density
 |
User manual for the LEE Filters 100 x 150mm Reverse-Graduated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LEE Filters product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LEE Filters user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LEE Filters product will considerably shorten its lifespan!
|
Product description How to Use ND Filters: Tips, Tricks, and Special Effects Read More This 100 x 150mm Reverse-Graduated 1.2 Filter from LEE Filters is compatible with a LEE Filters 100mm System filter holder. It can be applied to darken bright skies, specifically during a sunrise or sunset, while allowing for a normal, unaffected exposure in the other regions of the image.
This filter achieves its effect with a 1.2 band of density above its center region that provides up to a 4-stop reduction in light from entering a lens. This band extends in both vertical directions which tapers to approximately a 0.6 density and a 2-stop reduction in light at the edge above it. Directly below the 1.2 band of density, it tapers to clear, with a hard-edged line of transition before the clear area.
The placement of a 1.2 band of density with a clear area directly below allows the LEE Filters 100 x 150mm Reverse-Graduated 1.2 Filter to match the positioning of the sun when it is at, or immediately above, the horizon. In such instances, the sun can appear closer to the center of an image as opposed to the upper edge, and an increase in brightness is created which is more prominent on both sides of the sun than above it. This pattern of brightness corresponds to the density pattern on the LEE Filters 100 x 150mm Reverse-Graduated 1.2 Filter. The hard-edged line of transition in this reverse-graduated neutral density filter is useful for hard transitions between the sky and land, while the 4-stop to approximately 2-stop gradation is applicable to multiple regions of brightness within the sky. -
- Compatible with a LEE Filters 100mm System filter holder
- Effectively darkens bright skies, specifically during a sunrise or sunset, while allowing for a normal, unaffected exposure in the other regions of the image
- 4-stop band of density that tapers to approximately a 2-stop density at the edge above it, while directly above a clear area
- Creates a neutral density pattern that matches the positioning of the sun when it is at, or immediately above the horizon
- Density pattern corresponds to the brightness pattern of the sun when it appears at or is closer to the horizon as opposed to a higher angle, which creates an increase in brightness that is more prominent on both sides of the sun than above it
- Hard-edged line of transition between the 4-stop band of density and the clear area below it is useful for hard transitions between the sky and land
- 4-stop to approximately a 2-stop gradation is applicable to multiple regions of brightness within the sky
- Filter does not affect the overall coloration of the image
- Constructed from optical-quality resin for clarity
- Padded filter pouch included for storage and transport
In the Box LEE Filters 100 x 150mm Reverse-Graduated 1.2 Filter (4 Stops) Filter Pouch Limited 1-Year Warranty Introduction to ND Filters: The Basics BH Online Videos 05/29/2015 How to Use ND Filters: Beyond the Basics BH Online Videos 05/29/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the LEE Filters 100 x 150mm Reverse-Graduated 1.2 Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLEE Filters ND1.2RG Specs | Filter Type | Graduated ND | | Graduation Type | Reverse | | Graduation Direction | Vertical | | Density | 0.6 (2 Stops) to 1.2 (4 Stops) | | Shape | Rectangle | | Rectangular Size | 3.94 x 5.91" / 100.0 x 150.0 mm | | Filter Thickness | 0.08" / 2.0 mm | | Filter Material | Resin | | Coatings | None | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.3 x 5.0 x 0.6" |
