Product description

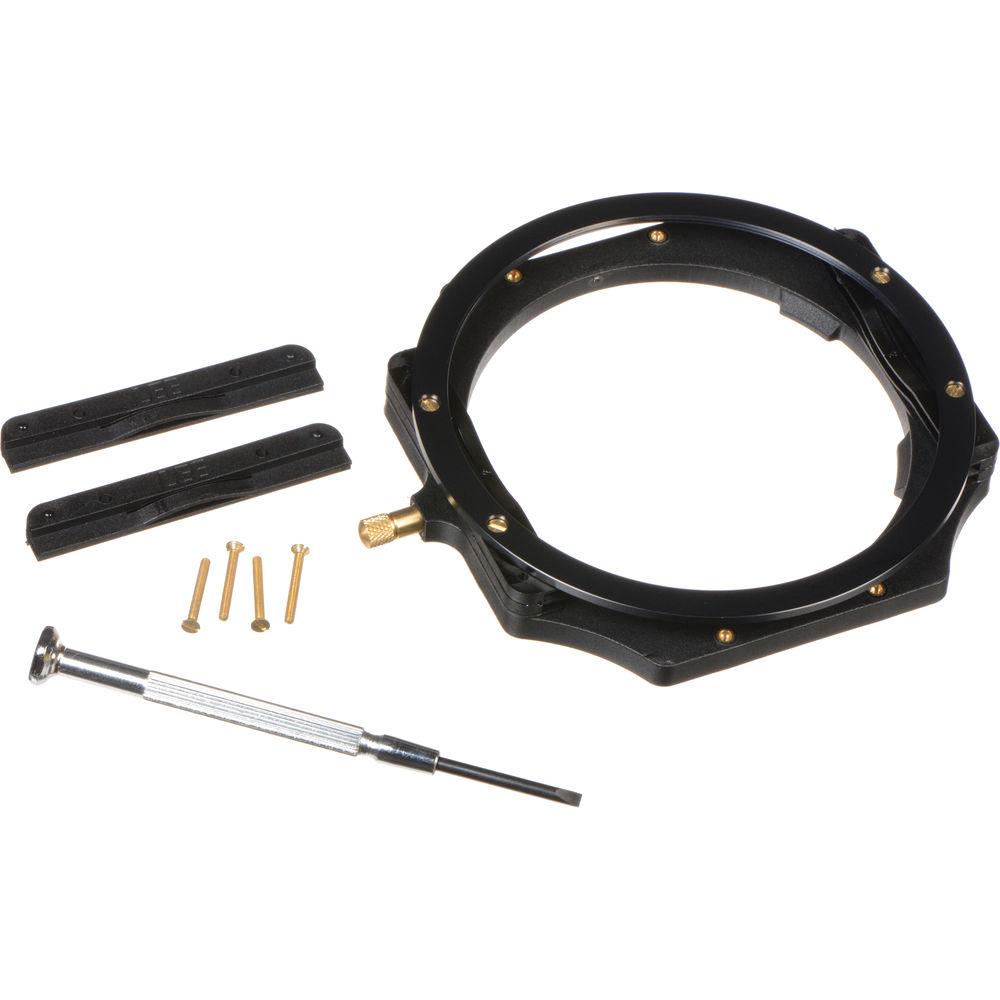

• Foundation Kit (Standard 4x4", 4x6" Filter Holder) (Requires Adapter Ring) The Lee Foundation Kit is the basic element of the Lee filter holder System. This kit contains all the necessary components (including a small screwdriver) to construct a versatile holder that when assembled in its standard form, accepts three filters - 100mm (4") wide x 2mm thick. It also holds 4x6" (100 x 150mm, 2mm thick) filters. The holder can be made to accommodate up to four 2mm thick filters by using the separately-available Lee Filters 3/4" Side-Guide Screws and an additional set of Side Guides for 2mm Thick Filters.Lee makes a variety of standard and wide angle adapter rings in screw-in and bayonet sizes as well as accessory compendium shades. When mounted, this holder will rotate on the adapter ring for positioning a polarizer or a graduated filter. Optional "side-guides" and guide mounting screws in shorter/longer lengths are available for use with 1mm and 4mm thick filters. UPC: 619465011447

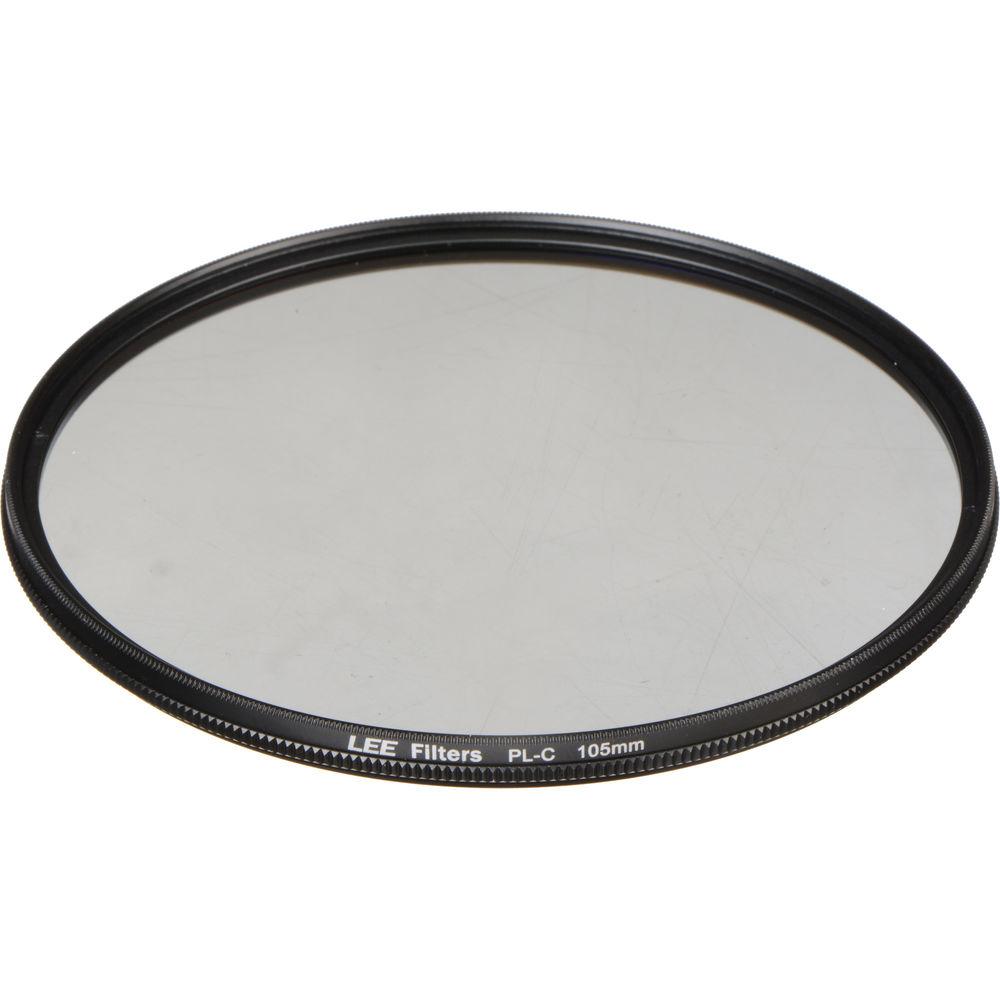

• 105mm Landscape Circular Polarizer Filter Well-suited to outdoor and nature photography, the 105mm Landscape Circular Polarizer Filter from LEE Filters helps to reduce reflections and glare as well as increase the overall saturation of an image. This unique polarizer filter is also characterized by a slight warm bias that, in addition to increasing contrast in skies, also helps to enhance green, brown, and gold tones. It is compatible with the LEE 100mm system, via an optional 105mm accessory ring, and features a slimline profile to reduce the likelihood of vignetting on lenses as wide as 16-17mm.

  A polarizing filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. This results in a noticeable increase in the saturation of skies and foliage, as well as clearer imagery when photographing in hazy conditions. A circular polarizer differs from a linear polarizer in that it supports full use of a camera's autofocus and auto exposure functions.

  This filter is constructed from optical glass for maintained image quality and is set within an aluminum filter ring. Due to its slim profile, this filter does not have front threads for stacking additional filters.
  • Reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Lessens haze in distant landscapes and provides more saturated, vivid colors.
  • Benefitting landscape photographers, this filter has a slightly warm bias to enhance Earth tones in addition to increasing overall saturation.
  • Strongest effect when used at a 90° from the sun.
  • Optical glass construction maintains image quality.
  • Low profile aluminum filter ring helps to reduce the likelihood of vignetting when used with wide-angle lenses.
  • When used in conjunction with the LEE 100mm holder system, vignetting will not occur with lenses as wide as 16-17mm when this filter is attached with the optional 105mm accessory ring and two filter slots are behind the filter. When mounted closer to the lens-either directly to the lens or with one rectangular filter slot-wider focal lengths may be used without vignetting.

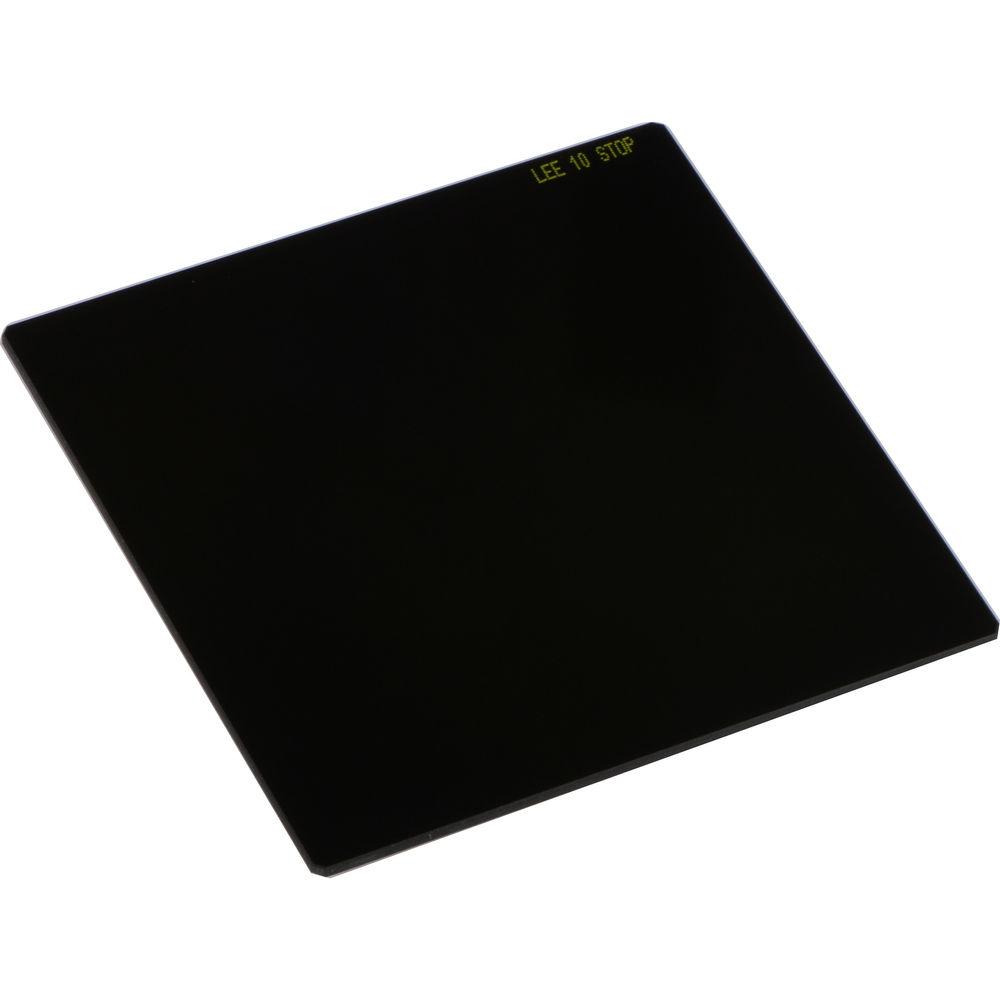

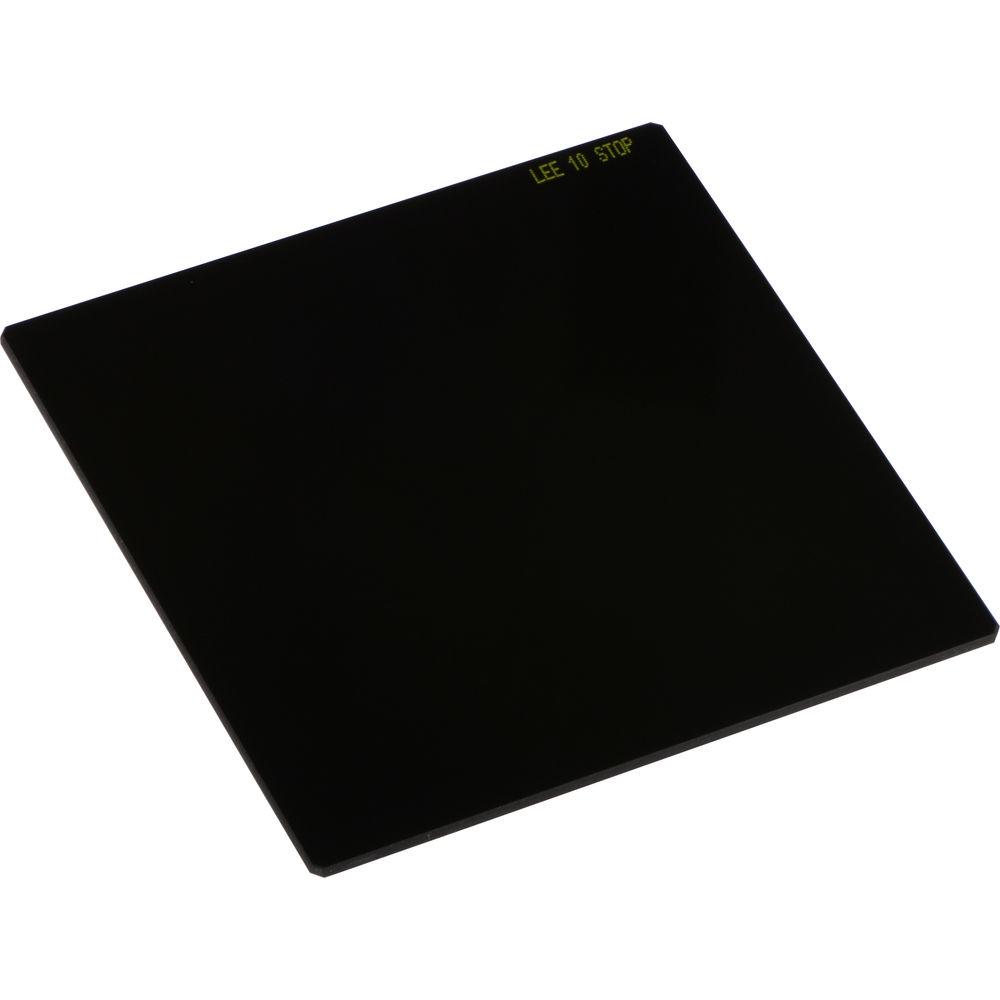

• 100 x 100mm Big Stopper 3.0 Neutral Density Filter The LEE Filters 100 x 100mm Big Stopper 3.0 Neutral Density Filter is a solid neutral density filter providing a 10-stop reduction in exposure. This 3.0 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily.

  This filter is constructed from a high quality optical glass for high definition and clarity. It is compatible with the 100mm Filter System, which is designed for use with most lenses and camera types. This filter measures 3.9 x 3.9" / 100 x 100mm.
  • 3.0 ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 10-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  UPC: 619465039724
• 100 x 150mm Medium Graduated Neutral Density 1.2 Filter Helping to balance exposure when working in high-contrast situations, the 100 x 150mm Medium Graduated Neutral Density 1.2 Filter from LEE Filters is specifically designed to selectively control brightness in difficult lighting. The filter's design places the 1.2, 4-stop density at the top of the filter and then transitions to clear by the center of the filter for a gradual, natural appearance. The medium-edge transition between the density and clear areas is well-suited for photographing scenes with an apparent but not rigid horizon line, such as when mountains or trees protrude into the sky. This filter is constructed from optical resin that is both durable and helps to maintain high clarity, and is compatible with the LEE 100mm filter holder.
  • Graduated neutral density places the most density at the edge of the filter and tapers to clear by the center of the filter in order to accommodate photographing scenes with large bright areas, such as a daytime sky.
  • Medium-edge transition between density and clear portions of the filter is suitable for photographing scenes with an apparent, but indistinct horizon or line between light and shadow, such as when rooftops, mountains, or trees protrude into the sky.
  • Neutral density 1.2 provides a 4-stop reduction in light in selective areas.
  • Constructed from optical resin for overall clarity and durability.
  • Compatible for use with the LEE 100mm filter holder.
  • Included filter pouch protects the filter when not in use.

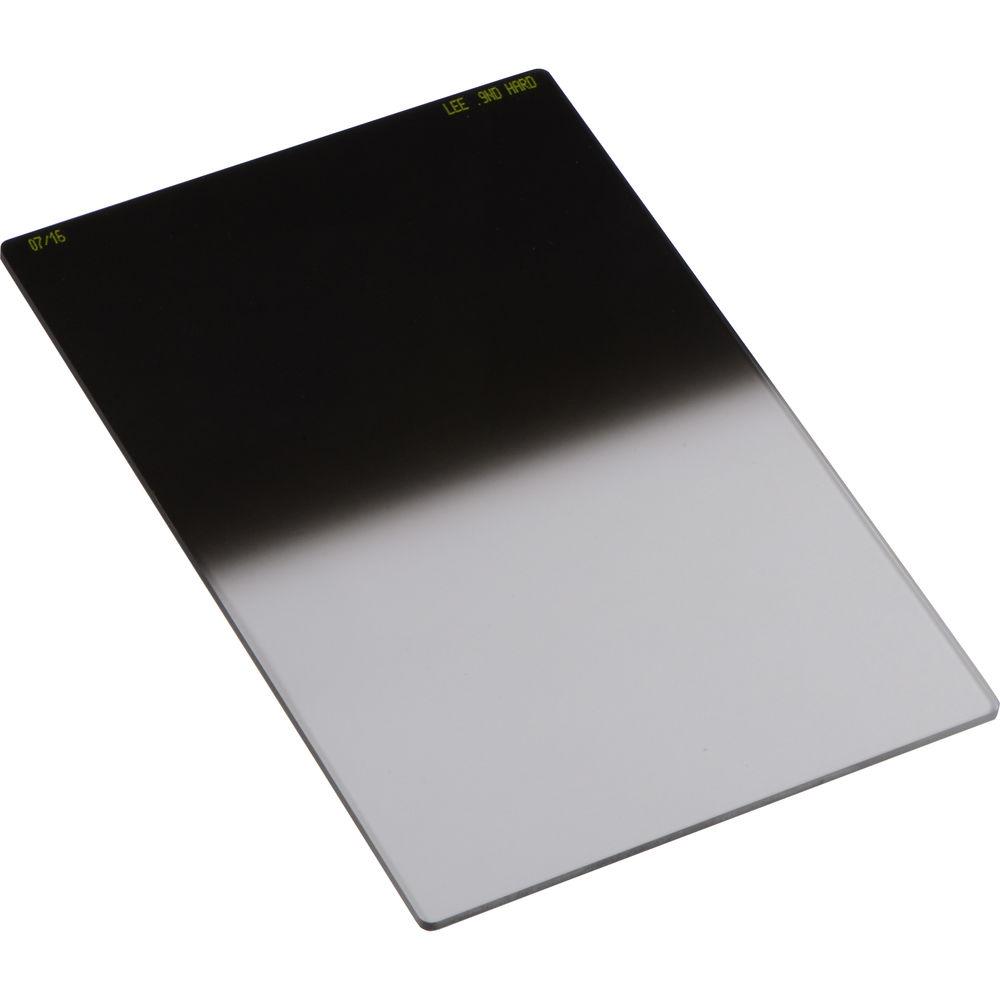

• 100 x 150mm Hard Graduated Neutral Density 0.9 Filter Helping to balance exposure when working in high-contrast situations, the 100 x 150mm Hard Graduated Neutral Density 0.9 Filter from LEE Filters is specifically designed to selectively control brightness in difficult lighting. The filter's design places the 0.9, 3-stop density at the top of the filter and then transitions to clear by the center of the filter for a gradual, natural appearance. The hard-edge transition between the density and clear areas is well-suited for photographing scenes with an even, distinct horizon line, as well as when working with long or telephoto lenses. This filter is constructed from optical resin that is both durable and helps to maintain high clarity, and is compatible with the LEE 100mm filter holder.
  • Graduated neutral density places the most density at the edge of the filter and tapers to clear by the center of the filter in order to accommodate photographing scenes with large bright areas, such as a daytime sky.
  • Hard-edge transition between density and clear portions of the filter is suitable for photographing scenes with a distinct, well-defined horizon or line between light and shadow, and is also best-suited for use with a long or telephoto lens.
  • Neutral density 0.9 provides a 3-stop reduction in light in selective areas.
  • Constructed from optical resin for overall clarity and durability.
  • Compatible for use with the LEE 100mm filter holder.
  • Included filter pouch protects the filter when not in use.
  UPC: 619465014776
• 100 x 150mm Medium Graduated Neutral Density 0.6 Filter Helping to balance exposure when working in high-contrast situations, the 100 x 150mm Medium Graduated Neutral Density 0.6 Filter from LEE Filters is specifically designed to selectively control brightness in difficult lighting. The filter's design places the 0.6, 2-stop density at the top of the filter and then transitions to clear by the center of the filter for a gradual, natural appearance. The medium-edge transition between the density and clear areas is well-suited for photographing scenes with an apparent but not rigid horizon line, such as when mountains or trees protrude into the sky. This filter is constructed from optical resin that is both durable and helps to maintain high clarity, and is compatible with the LEE 100mm filter holder.
  • Graduated neutral density places the most density at the edge of the filter and tapers to clear by the center of the filter in order to accommodate photographing scenes with large bright areas, such as a daytime sky.
  • Medium-edge transition between density and clear portions of the filter is suitable for photographing scenes with an apparent, but indistinct horizon or line between light and shadow, such as when rooftops, mountains, or trees protrude into the sky.
  • Neutral density 0.6 provides a 2-stop reduction in light in selective areas.
  • Constructed from optical resin for overall clarity and durability.
  • Compatible for use with the LEE 100mm filter holder.
  • Included filter pouch protects the filter when not in use.
• 105mm Accessory Front Thread Adapter Ring The 105mm Accessory Front Thread Adapter Ring from Lee will mount on the front of the Lee Foundation Kit (filter holder) and allows the use of 105mm threaded accessories (i.e. polarizers and hoods). UPC: 619465019924
• Filter Wrap for 3 Filters The LEE Filter Wrap for 3 Filters is a simple tool for storing and carrying up to three 4 x 6" filters at a time. The soft cloth construction prevents scratching of the filter surfaces and also allows the wrap to be folded and stored when not in use. UPC: 619465034439

• Storage Pouch

• Filter Pouch

• Limited Lifetime Warranty

• Filter Case

• Warranted Against Manufacturing Defects

• Filter Pouch

• Limited Lifetime Warranty

• Filter Pouch

• Limited Lifetime Warranty

• Filter Pouch

• Limited Lifetime Warranty

Also Includes

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Foundation Kit (Standard 4x4", 4x6" Filter Holder) (Requires Adapter Ring)

  Box Dimensions (LxWxH)	7.2 x 5.4 x 1.3"

• 105mm Landscape Circular Polarizer Filter

  Filter Type	Circular Polarizer
  Filter Factor	3 (1.6 Stop)
  Shape	Circle
  Circular Size	105 mm
  Rotating	Yes
  Front Accessory Thread / Bayonet	Unthreaded
  Physical Feature	Slim
  Filter Material	Glass
  Coatings	None

  Box Dimensions (LxWxH)	5.9 x 5.5 x 1.1"

• 100 x 100mm Big Stopper 3.0 Neutral Density Filter

  Filter Type	Solid ND
  Rectangular Size	3.9 x 3.9" / 100.0 x 100.0 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	6.0 x 5.5 x 0.5"

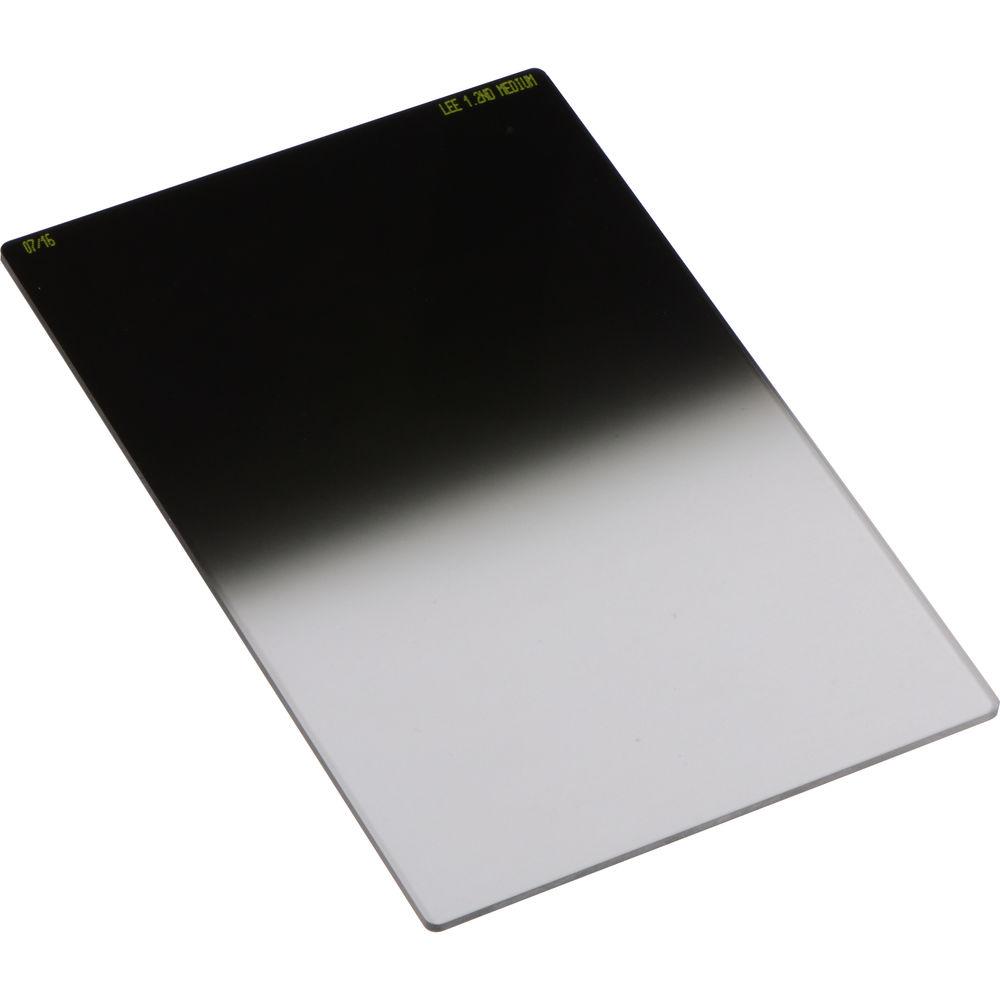

• 100 x 150mm Medium Graduated Neutral Density 1.2 Filter

  Filter Type	Graduated ND
  Graduation Type	Medium Edge
  Density	1.2 (4 Stops)
  Shape	Rectangle
  Rectangular Size	3.9 x 5.9" / 100.0 x 150.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Resin
  Coatings	None

  Box Dimensions (LxWxH)	7.5 x 5.3 x 0.8"

• 100 x 150mm Hard Graduated Neutral Density 0.9 Filter

  Filter Type	Graduated ND
  Graduation Type	Hard Edge
  Density	0.9 (3 Stops)
  Shape	Rectangle
  Rectangular Size	3.9 x 5.9" / 100.0 x 150.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Resin
  Coatings	None

  Box Dimensions (LxWxH)	6.929 x 5.354 x 0.63"

• 100 x 150mm Medium Graduated Neutral Density 0.6 Filter

  Filter Type	Graduated ND
  Graduation Type	Medium Edge
  Density	0.6 (2 Stops)
  Shape	Rectangle
  Rectangular Size	3.9 x 5.9" / 100.0 x 150.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Resin
  Coatings	None

  Box Dimensions (LxWxH)	7.4 x 5.0 x 0.8"

• 105mm Accessory Front Thread Adapter Ring

  Box Dimensions (LxWxH)	6.0 x 5.5 x 0.7"

• Filter Wrap for 3 Filters

  Filter Capacity

  3 x 4 x 6" / 100 x 150 mm

  Box Dimensions (LxWxH)	8.25 x 7.5 x 0.05"
