LEE Filters 100mm System Kit with

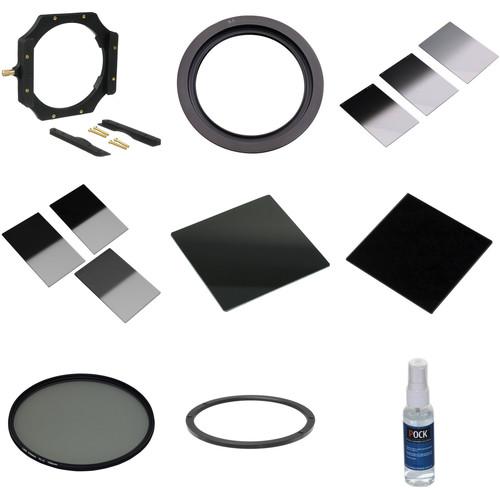

User Manual for LEE Filters 100mm System Kit with 77mm Wide-Angle Lens Adapter Ring, Solid Neutral Density Filters, Graduated Neutral Density Filters, Circular Polarizer Filter, and Lens Cleaner

• Product category: Filter Kits LEE Filters
• Brand: LEE Filters
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for LEE Filters Filter Kits

Product description

• LEE Filters Foundation Kit (Standard 4x4", 4x6" Filter Holder) (Requires Adapter Ring)
  • Introduction to LEE Filters
  The Lee Foundation Kit is the basic element of the Lee filter holder System. This kit contains all the necessary components (including a small screwdriver) to construct a versatile holder that when assembled in its standard form, accepts three filters - 100mm (4") wide x 2mm thick. It also holds 4x6" (100 x 150mm, 2mm thick) filters. The holder can be made to accommodate up to four 2mm thick filters by using the separately-available Lee Filters 3/4" Side-Guide Screws and an additional set of Side Guides for 2mm Thick Filters.Lee makes a variety of standard and wide angle adapter rings in screw-in and bayonet sizes as well as accessory compendium shades. When mounted, this holder will rotate on the adapter ring for positioning a polarizer or a graduated filter. Optional "side-guides" and guide mounting screws in shorter/longer lengths are available for use with 1mm and 4mm thick filters. UPC: 619465011447
• LEE Filters 77mm Wide-Angle Lens Adapter Ring for 100mm System Filter Holder
  • Introduction to LEE Filters
  This 77mm Adapter Ring from LEE Filters is designed to enable the use of a LEE Filters 100mm System filter holder on a wide-angle lens while helping to prevent vignetting. It is compatible with lenses that feature 77mm front filter threads and features an aluminum-alloy construction for durability while remaining lightweight. UPC: 619465012017
• LEE Filters Graduated Neutral Density Soft Filter Set
  • Introduction to LEE Filters
  Often it is necessary or desirable to balance the light intensity in one part of a scene with another. This is especially true in situations where you don't have total light control, as in bright contrasty landscapes. Exposing for the foreground will produce a washed-out, over-exposed sky while exposing for the sky will leave the foreground dark and under-exposed. Lee Grad ND filters are part clear, part neutral density (available in grades of .3 (1 stop), .6 (2 stops), .9 (3 stops)). They allow the transition to be blended into the scene, often imperceptibly. A neutral density .6-to-clear, with a two stop differential, will generally compensate the average bright sky-to-foreground situation and is also the most popular density of the series. Certain Lee graduated neutral density filters are available with soft or hard transitions from dark to clear. The soft edge is recommended for wide angle lenses and the hard edge is recommended for normal and longer lenses. Lee graduated resin filters are 4 x 6" (100 x 150mm) x 2mm thick. The 6" length allows for adjustment of the filter within the holder. UPC: 619465031919
• LEE Filters 4x6" Hard-Edge Graduated ND Resin Filter Set (0.3, 0.6, 0.9)
  • Introduction to LEE Filters
  Lee 4x6" Hard-Edge Graduated Neutral Density Resin Filter Set - Often it is necessary or desirable to balance the light intensity in one part of a scene with another. This is especially true in situations where you don't have total light control, as in bright contrasty landscapes. Exposing for the foreground will produce a washed-out, over-exposed sky while exposing for the sky will leave the foreground dark and under-exposed. This kit consists of Lee Grad ND filters in grades of 0.3 (1 stop), 0.6 (2 stops), 0.9 (3 stops). They allow the transition to be blended into the scene, often imperceptibly. A neutral density 0.6-to-clear, with a two stop differential, will generally compensate the average bright sky-to-foreground situation and is also the most popular density of the series. Lee graduated neutral density filters are available with soft or hard transitions from dark to clear. The soft edge is recommended for wide angle lenses and the hard edge is recommended for normal and longer lenses. Lee graduated resin filters are 4 x 6" (100 x 150mm) x 2mm thick. The 6" length allows for adjustment of the filter within the holder. Note: Soft Edge represents a gradual transition from one end of the filter to the other while Hard Edge contains a firm "line of demarcation"

  Neutral Density Factors

  • ND.3 (exposure adjustment = 1 stop)
  • ND.6 (exposure adjustment = 2 stops)
  • ND.9 (exposure adjustment = 3 stops)
  UPC: 619465018972
• LEE Filters 100 x 100mm Little Stopper 1.8 Neutral Density Filter
  • Introduction to LEE Filters
  The LEE Filters 100 x 100mm Little Stopper 1.8 Neutral Density Filter is a solid neutral density filter providing a 6-stop reduction in exposure. This 1.8 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily.

  This filter is constructed from a high quality optical glass for high definition and clarity. It is compatible with the 100mm Filter System, which is designed for use with most lenses and camera types. This filter measures 3.9 x 3.9" / 100 x 100mm.
  • 1.8 ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 6-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
• LEE Filters 100 x 100mm Big Stopper 3.0 Neutral Density Filter
  • Introduction to LEE Filters
  The LEE Filters 100 x 100mm Big Stopper 3.0 Neutral Density Filter is a solid neutral density filter providing a 10-stop reduction in exposure. This 3.0 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily.

  This filter is constructed from a high quality optical glass for high definition and clarity. It is compatible with the 100mm Filter System, which is designed for use with most lenses and camera types. This filter measures 3.9 x 3.9" / 100 x 100mm.
  • 3.0 ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 10-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  UPC: 619465039724
• LEE Filters 105mm Landscape Circular Polarizer Filter
  • Introduction to LEE Filters
  Well-suited to outdoor and nature photography, the 105mm Landscape Circular Polarizer Filter from LEE Filters helps to reduce reflections and glare as well as increase the overall saturation of an image. This unique polarizer filter is also characterized by a slight warm bias that, in addition to increasing contrast in skies, also helps to enhance green, brown, and gold tones. It is compatible with the LEE 100mm system, via an optional 105mm accessory ring, and features a slimline profile to reduce the likelihood of vignetting on lenses as wide as 16-17mm.

  A polarizing filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. This results in a noticeable increase in the saturation of skies and foliage, as well as clearer imagery when photographing in hazy conditions. A circular polarizer differs from a linear polarizer in that it supports full use of a camera's autofocus and auto exposure functions.

  This filter is constructed from optical glass for maintained image quality and is set within an aluminum filter ring. Due to its slim profile, this filter does not have front threads for stacking additional filters.
  • Reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Lessens haze in distant landscapes and provides more saturated, vivid colors.
  • Benefitting landscape photographers, this filter has a slightly warm bias to enhance Earth tones in addition to increasing overall saturation.
  • Strongest effect when used at a 90° from the sun.
  • Optical glass construction maintains image quality.
  • Low profile aluminum filter ring helps to reduce the likelihood of vignetting when used with wide-angle lenses.
  • When used in conjunction with the LEE 100mm holder system, vignetting will not occur with lenses as wide as 16-17mm when this filter is attached with the optional 105mm accessory ring and two filter slots are behind the filter. When mounted closer to the lens-either directly to the lens or with one rectangular filter slot-wider focal lengths may be used without vignetting.
• LEE Filters 105mm Accessory Front Thread Adapter Ring
  • Introduction to LEE Filters
  The 105mm Accessory Front Thread Adapter Ring from Lee will mount on the front of the Lee Foundation Kit (filter holder) and allows the use of 105mm threaded accessories (i.e. polarizers and hoods). UPC: 619465019924
• Field Optics Research Solution Spray Bottle (2 oz)
  • Introduction to LEE Filters
  This is a 2 oz Solution Spray Bottle from Field Optics Research. It contains a specially designed cleaning formula that is particularly effective on high-end optics with anti-reflective coatings. The non-alcohol based formula can be used on all lenses to help keep them free from fingerprints, dust, dirt and smudges. The bottle produces a fine mist that is easy to remove. UPC: 661799855587

• Foundation Kit (Standard 4x4", 4x6" Filter Holder) (Requires Adapter Ring) stycuzxyzqazdcxs
• Storage Pouch

• 77mm Wide-Angle Lens Adapter Ring for 100mm System Filter Holder

• Graduated Neutral Density Soft Filter Set 4 x 6" - Consists of Three Graduated ND (Neutral Density) Filters (.3, .6, .9) - Soft Transition stycuzxyzqazdcxs

• 4x6" Hard-Edge Graduated ND Resin Filter Set (0.3, 0.6, 0.9)

• 100 x 100mm Little Stopper 1.8 Neutral Density Filter

• 100 x 100mm Big Stopper 3.0 Neutral Density Filter stycuzxyzqazdcxs

• 105mm Landscape Circular Polarizer Filter

• 105mm Accessory Front Thread Adapter Ring

• Field Optics Research - Solution Spray Bottle (2 oz)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LEE Filters Foundation Kit (Standard 4x4", 4x6" Filter Holder) (Requires Adapter Ring)

  Box Dimensions (LxWxH)	7.2 x 5.4 x 1.3"

• LEE Filters 77mm Wide-Angle Lens Adapter Ring for 100mm System Filter Holder

  Compatible Lens Filter Thread	77 mm
  Filter Holder System	LEE Filters 100 mm
  Material	Aluminum

  Box Dimensions (LxWxH)	4.2 x 3.9 x 0.6"

• LEE Filters Graduated Neutral Density Soft Filter Set

  Filter Type	Graduated ND
  Graduation Type	Soft Edge
  Graduation Direction	Vertical
  Density	0.3 (1 Stop) 0.6 (2 Stops) 0.9 (3 Stops)
  Shape	Rectangle
  Rectangular Size	4 x 6" / 101.6 x 152.4 mm

  Box Dimensions (LxWxH)	7.4 x 4.3 x 1.0"

• LEE Filters 4x6" Hard-Edge Graduated ND Resin Filter Set (0.3, 0.6, 0.9)

  Filter Type	Graduated ND
  Graduation Type	Hard Edge
  Graduation Direction	Vertical
  Density	0.3 (1 Stop) 0.6 (2 Stops) 0.9 (3 Stops)
  Shape	Rectangle
  Rectangular Size	4 x 6" / 101.6 x 152.4 mm

  Box Dimensions (LxWxH)	7.4 x 4.3 x 1.0"

• LEE Filters 100 x 100mm Little Stopper 1.8 Neutral Density Filter

  Filter Type	Solid ND
  Rectangular Size	3.9 x 3.9" / 100.0 x 100.0 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	4.8 x 4.5 x 0.9"

• LEE Filters 100 x 100mm Big Stopper 3.0 Neutral Density Filter

  Filter Type	Solid ND
  Rectangular Size	3.9 x 3.9" / 100.0 x 100.0 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	6.0 x 5.5 x 0.5"

• LEE Filters 105mm Landscape Circular Polarizer Filter

  Filter Type	Circular Polarizer
  Filter Factor	3 (1.6 Stop)
  Shape	Circle
  Circular Size	105 mm
  Rotating	Yes
  Front Accessory Thread / Bayonet	Unthreaded
  Physical Feature	Slim
  Filter Material	Glass
  Coatings	None

  Box Dimensions (LxWxH)	5.9 x 5.5 x 1.1"

• LEE Filters 105mm Accessory Front Thread Adapter Ring

  Box Dimensions (LxWxH)	6.0 x 5.5 x 0.7"

• Field Optics Research Solution Spray Bottle (2 oz)

  Box Dimensions (LxWxH)	5.0 x 1.0 x 0.1"
