User manual
LEE Filters LEE100 Landscape Kit

User Manual for LEE Filters LEE100 Landscape Kit

• Product category: Filter Kits LEE Filters
• Brand: LEE Filters
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for LEE Filters Filter Kits

Product description

• LEE100 Filter Holder Utilizing a modular, snap-on filter slot system, the LEE100 Filter Holder from LEE Filters can be quickly configured to hold up to one, two, or three separately available 100mm-wide, 2mm-thick filters along with a separately available polarizer filter.

  Constructed for durability while remaining lightweight, use of the LEE100 Filter Holder is easily accomplished by first screwing a separately available LEE Filters adapter ring for a 100mm system filter holder onto a lens with corresponding front filter threads. After being fitted onto an adapter ring, the filter holder's pull-and-release locking knob helps to provide a reliable, yet adjustable connection that allows the holder to be rotated 360°, allowing the use of graduated neutral density and other filters that are enhanced by varied positioning. Featuring three user-selectable positions, the locking knob can be set to allow the filter holder to be rotated or removed from an adapter ring. By progressively turning the locking knob, the filter holder can be locked onto an adapter ring while it is rotated, or it can be locked onto an adapter ring with no rotation.

  Three pairs of snap-on LEE Filters Filter Guide Blocks are included. When installed, a guide block pair creates one, two, or three slots for 100mm-wide, 2mm-thick filters and accommodates a separately available LEE Filters LEE100 Polarizer Filter. This filter can be snapped directly onto a LEE100 Filter Holder's guide blocks without occupying any of their filter slots. Alternatively, a separately available LEE Filters 105mm Polarizer Ring allows a separately available LEE Filters 105mm Landscape Circular Polarizer Filter to be adapted to the LEE100 Filter Holder without occupying any of its guide blocks' filter slots.
  • • Durable, lightweight filter holder allows for the convenient use of up to three, separately available 100mm wide, 2mm thick filters and a separately available LEE Filters LEE100 Polarizer Filter
    • Can be mounted onto a lens with a separately available LEE Filters adapter ring for a 100mm system filter holder
    • Each pair of included snap-on LEE Filters Filter Guide Blocks creates one, two, or three slots for 100mm-wide, 2mm-thick filters
    • LEE100 Polarizer can be snapped directly onto a LEE100 Filter Holder's guide blocks without occupying any filter slot
    • A separately available LEE Filters 105mm Polarizer Ring allows a separately available LEE Filters 105mm Landscape Circular Polarizer Filter to be used without occupying any filter slot
    • Pull-and-release locking knob helps to provide a reliable, yet adjustable connection that allows the filter holder to be rotated 360°, allowing the use of graduated neutral density and other filters that are enhanced by varied positioning
    • Three-position locking knob allows the filter holder to be rotated or removed from an adapter ring, locked onto an adapter ring while it is rotated, or locked onto an adapter ring with no rotation
    • Padded pouches for filter holder as well as filter guide blocks are included for storage and transport
• 100 x 150mm Medium Graduated Neutral Density 0.6 Filter Helping to balance exposure when working in high-contrast situations, the 100 x 150mm Medium Graduated Neutral Density 0.6 Filter from LEE Filters is specifically designed to selectively control brightness in difficult lighting. The filter's design places the 0.6, 2-stop density at the top of the filter and then transitions to clear by the center of the filter for a gradual, natural appearance. The medium-edge transition between the density and clear areas is well-suited for photographing scenes with an apparent but not rigid horizon line, such as when mountains or trees protrude into the sky. This filter is constructed from optical resin that is both durable and helps to maintain high clarity, and is compatible with the LEE 100mm filter holder.
  • Graduated neutral density places the most density at the edge of the filter and tapers to clear by the center of the filter in order to accommodate photographing scenes with large bright areas, such as a daytime sky.
  • Medium-edge transition between density and clear portions of the filter is suitable for photographing scenes with an apparent, but indistinct horizon or line between light and shadow, such as when rooftops, mountains, or trees protrude into the sky.
  • Neutral density 0.6 provides a 2-stop reduction in light in selective areas.
  • Constructed from optical resin for overall clarity and durability.
  • Compatible for use with the LEE 100mm filter holder.
  • Included filter pouch protects the filter when not in use.

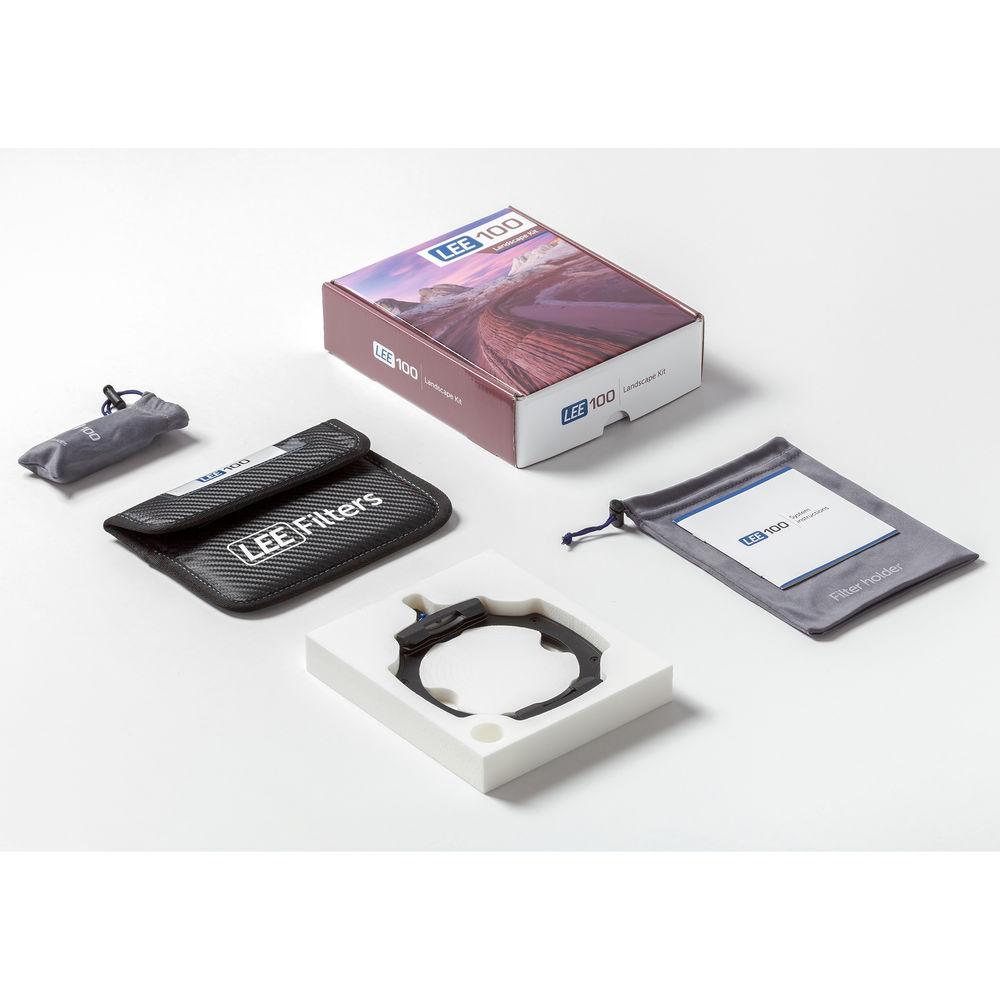

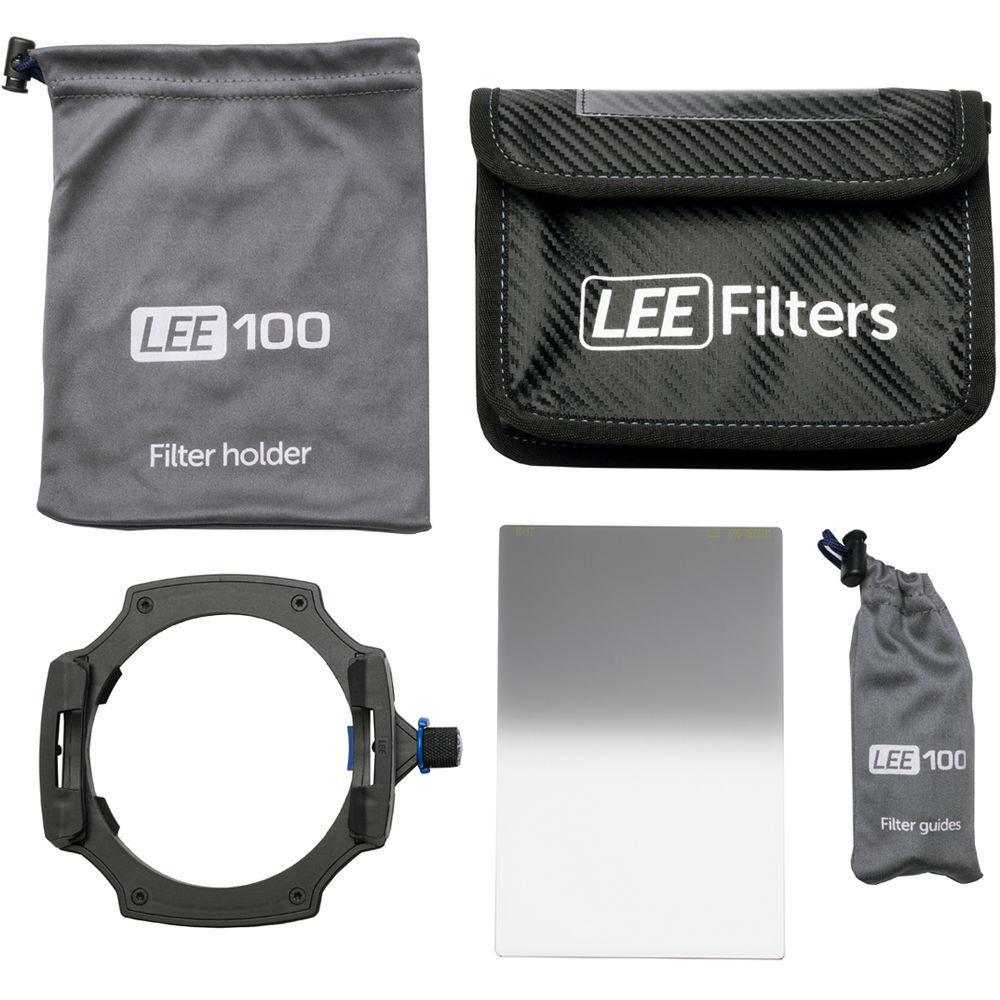

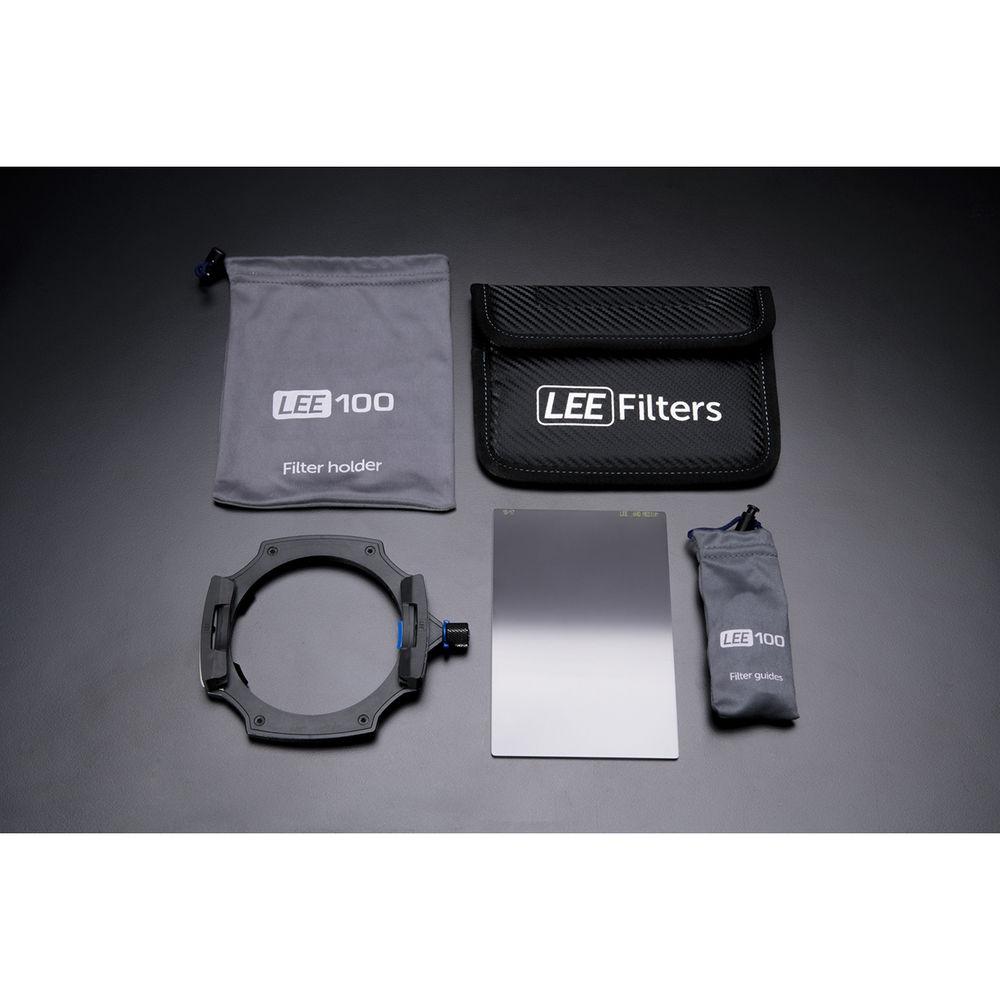

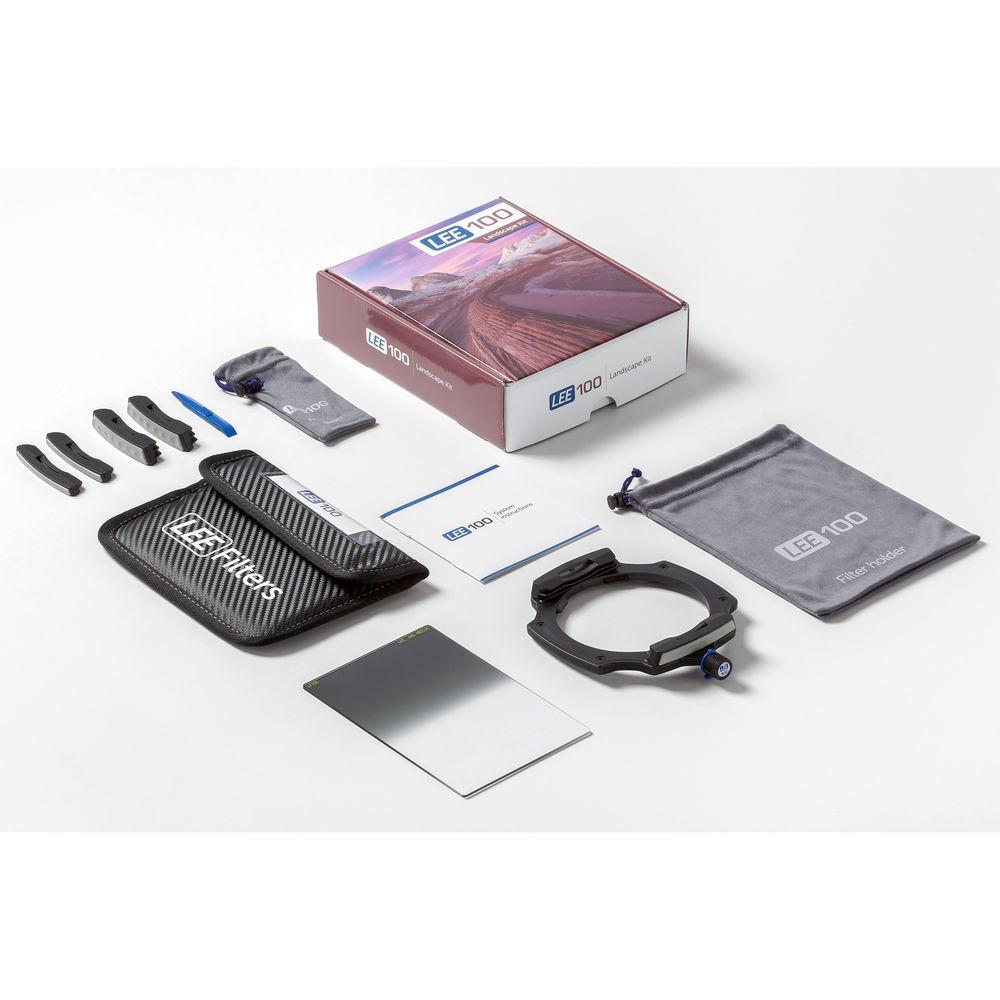

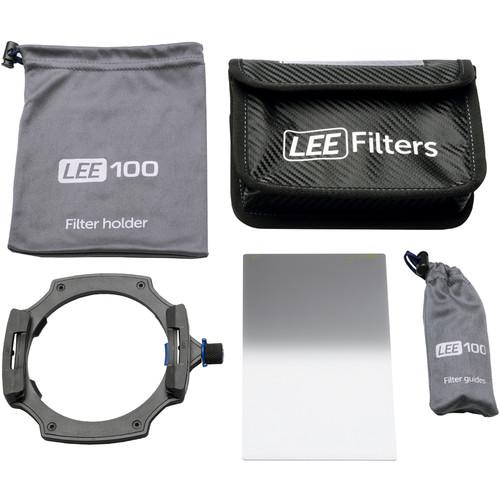

• Filter Holder

• 2 x One-Slot Filter Guide Block

• 2 x Two-Slot Filter Guide Block

• 2 x Three-Slot Filter Guide Block

• 2 x One-Slot Filter Guide Block Cover

• 2 x Two-Slot Filter Guide Block Cover

• 2 x Three-Slot Filter Guide Block Cover

• Filter Guide Block and Cover Tool

• Filter Holder Pouch

• Filter Guide Block Pouch

• Limited Lifetime Warranty

• Filter Pouch

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LEE100 Filter Holder

  Filter Capacity	3 x LEE Filters 100 mm
  Material	Fiberglass
  Dimensions	5.75 x 4.75 x 0.75" / 14.61 x 12.06 x 1.91 cm
  Weight	1.9 oz / 54 g

  Box Dimensions (LxWxH)	7.8 x 7.0 x 2.3"

• 100 x 150mm Medium Graduated Neutral Density 0.6 Filter

  Filter Type	Graduated ND
  Graduation Type	Medium Edge
  Density	0.6 (2 Stops)
  Shape	Rectangle
  Rectangular Size	3.9 x 5.9" / 100.0 x 150.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Resin
  Coatings	None

  Box Dimensions (LxWxH)	7.4 x 5.0 x 0.8"
