LEE Filters LEE100 Long-Exposure Kit

User Manual for LEE Filters LEE100 Long-Exposure Kit

• Product category: Filter Kits LEE Filters
• Brand: LEE Filters
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for LEE Filters Filter Kits

Product description

• LEE100 Filter Holder Utilizing a modular, snap-on filter slot system, the LEE100 Filter Holder from LEE Filters can be quickly configured to hold up to one, two, or three separately available 100mm-wide, 2mm-thick filters along with a separately available polarizer filter.

  Constructed for durability while remaining lightweight, use of the LEE100 Filter Holder is easily accomplished by first screwing a separately available LEE Filters adapter ring for a 100mm system filter holder onto a lens with corresponding front filter threads. After being fitted onto an adapter ring, the filter holder's pull-and-release locking knob helps to provide a reliable, yet adjustable connection that allows the holder to be rotated 360°, allowing the use of graduated neutral density and other filters that are enhanced by varied positioning. Featuring three user-selectable positions, the locking knob can be set to allow the filter holder to be rotated or removed from an adapter ring. By progressively turning the locking knob, the filter holder can be locked onto an adapter ring while it is rotated, or it can be locked onto an adapter ring with no rotation.

  Three pairs of snap-on LEE Filters Filter Guide Blocks are included. When installed, a guide block pair creates one, two, or three slots for 100mm-wide, 2mm-thick filters and accommodates a separately available LEE Filters LEE100 Polarizer Filter. This filter can be snapped directly onto a LEE100 Filter Holder's guide blocks without occupying any of their filter slots. Alternatively, a separately available LEE Filters 105mm Polarizer Ring allows a separately available LEE Filters 105mm Landscape Circular Polarizer Filter to be adapted to the LEE100 Filter Holder without occupying any of its guide blocks' filter slots.
  • • Durable, lightweight filter holder allows for the convenient use of up to three, separately available 100mm wide, 2mm thick filters and a separately available LEE Filters LEE100 Polarizer Filter
    • Can be mounted onto a lens with a separately available LEE Filters adapter ring for a 100mm system filter holder
    • Each pair of included snap-on LEE Filters Filter Guide Blocks creates one, two, or three slots for 100mm-wide, 2mm-thick filters
    • LEE100 Polarizer can be snapped directly onto a LEE100 Filter Holder's guide blocks without occupying any filter slot
    • A separately available LEE Filters 105mm Polarizer Ring allows a separately available LEE Filters 105mm Landscape Circular Polarizer Filter to be used without occupying any filter slot
    • Pull-and-release locking knob helps to provide a reliable, yet adjustable connection that allows the filter holder to be rotated 360°, allowing the use of graduated neutral density and other filters that are enhanced by varied positioning
    • Three-position locking knob allows the filter holder to be rotated or removed from an adapter ring, locked onto an adapter ring while it is rotated, or locked onto an adapter ring with no rotation
    • Padded pouches for filter holder as well as filter guide blocks are included for storage and transport
• 100 x 150mm Hard Graduated Neutral Density 0.6 Filter Helping to balance exposure when working in high-contrast situations, the 100 x 150mm Hard Graduated Neutral Density 0.6 Filter from LEE Filters is specifically designed to selectively control brightness in difficult lighting. The filter's design places the 0.6, 2-stop density at the top of the filter and then transitions to clear by the center of the filter for a gradual, natural appearance. The hard-edge transition between the density and clear areas is well-suited for photographing scenes with an even, distinct horizon line, as well as when working with long or telephoto lenses. This filter is constructed from optical resin that is both durable and helps to maintain high clarity, and is compatible with the LEE 100mm filter holder.
  • Graduated neutral density places the most density at the edge of the filter and tapers to clear by the center of the filter in order to accommodate photographing scenes with large bright areas, such as a daytime sky.
  • Hard-edge transition between density and clear portions of the filter is suitable for photographing scenes with a distinct, well-defined horizon or line between light and shadow, and is also best-suited for use with a long or telephoto lens.
  • Neutral density 0.6 provides a 2-stop reduction in light in selective areas.
  • Constructed from optical resin for overall clarity and durability.
  • Compatible for use with the LEE 100mm filter holder.
  • Included filter pouch protects the filter when not in use.
  UPC: 619465014059
• 100 x 100mm Big Stopper 3.0 Neutral Density Filter The LEE Filters 100 x 100mm Big Stopper 3.0 Neutral Density Filter is a solid neutral density filter providing a 10-stop reduction in exposure. This 3.0 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily.

  This filter is constructed from a high quality optical glass for high definition and clarity. It is compatible with the 100mm Filter System, which is designed for use with most lenses and camera types. This filter measures 3.9 x 3.9" / 100 x 100mm.
  • 3.0 ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 10-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  UPC: 619465039724
• 100 x 100mm Little Stopper 1.8 Neutral Density Filter The LEE Filters 100 x 100mm Little Stopper 1.8 Neutral Density Filter is a solid neutral density filter providing a 6-stop reduction in exposure. This 1.8 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily.

  This filter is constructed from a high quality optical glass for high definition and clarity. It is compatible with the 100mm Filter System, which is designed for use with most lenses and camera types. This filter measures 3.9 x 3.9" / 100 x 100mm.
  • 1.8 ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 6-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.

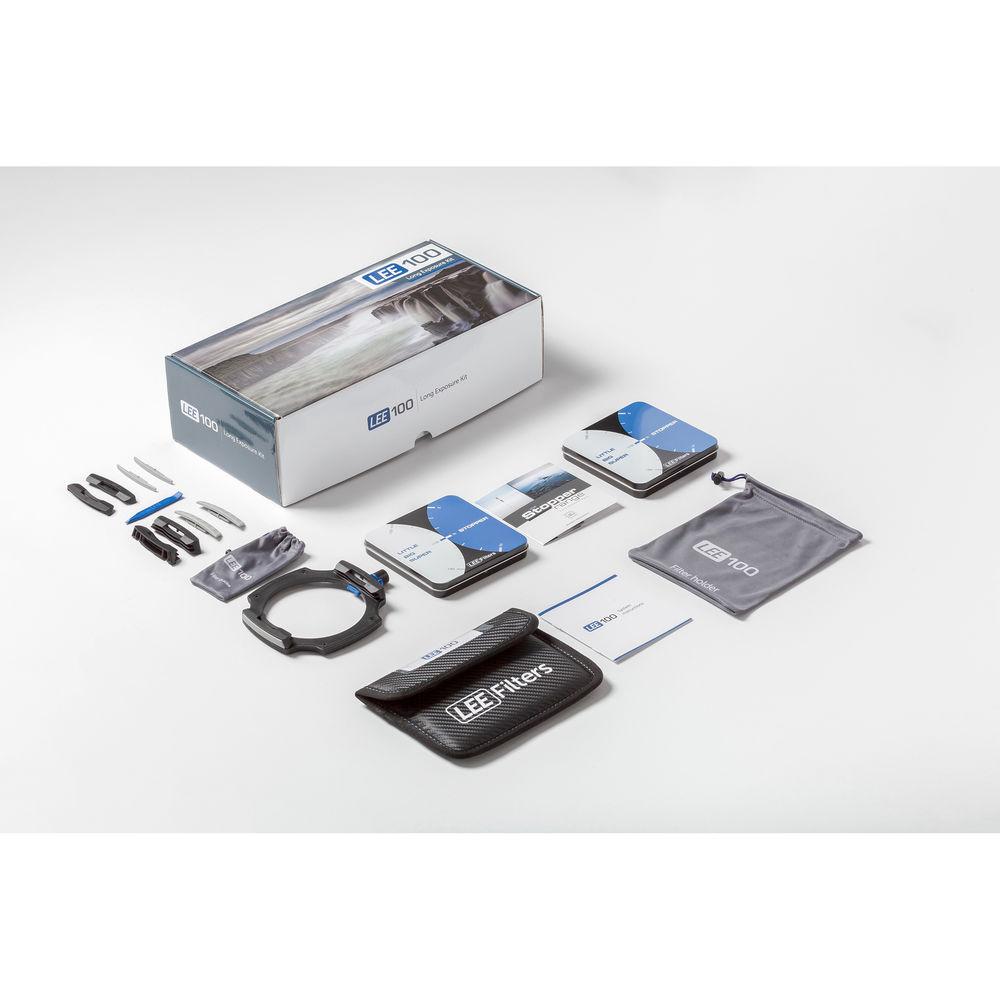

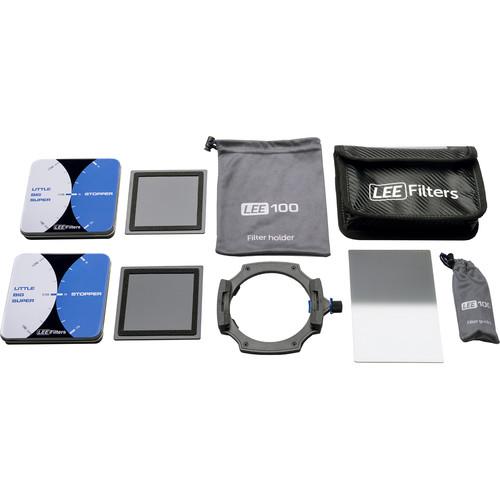

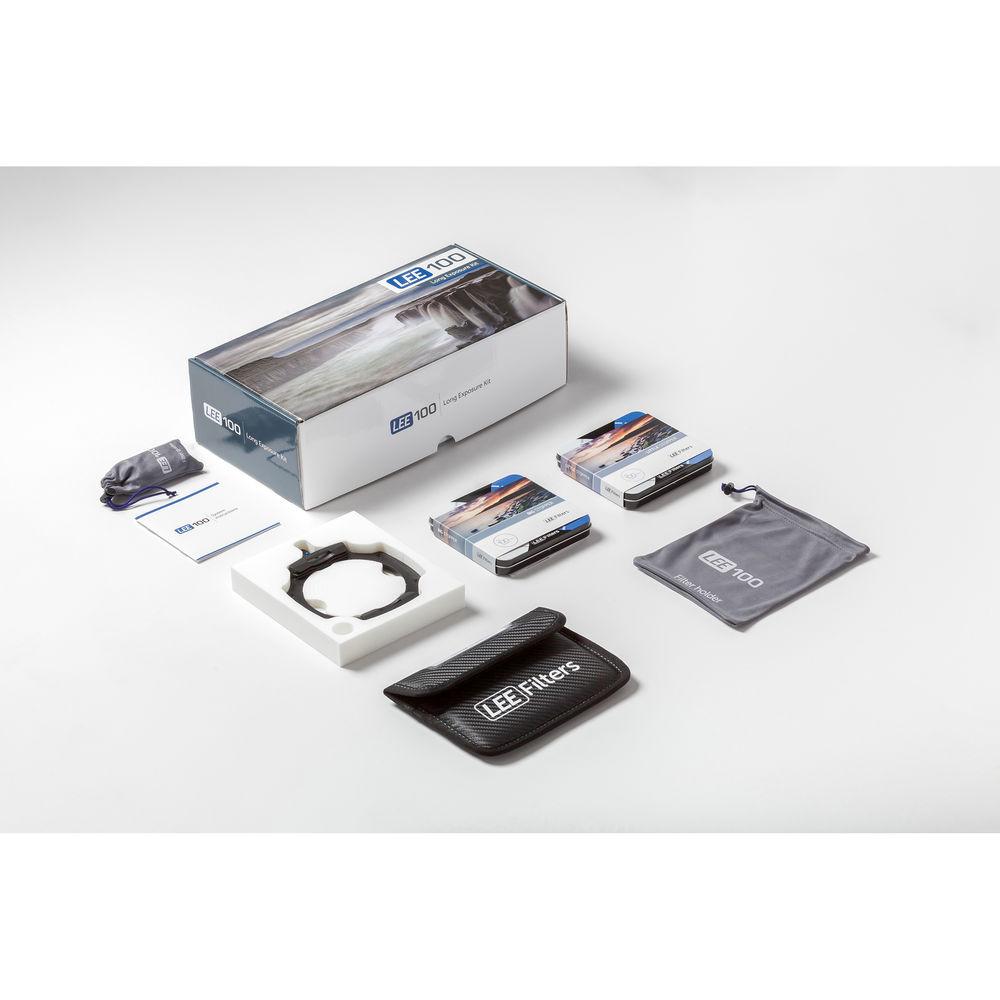

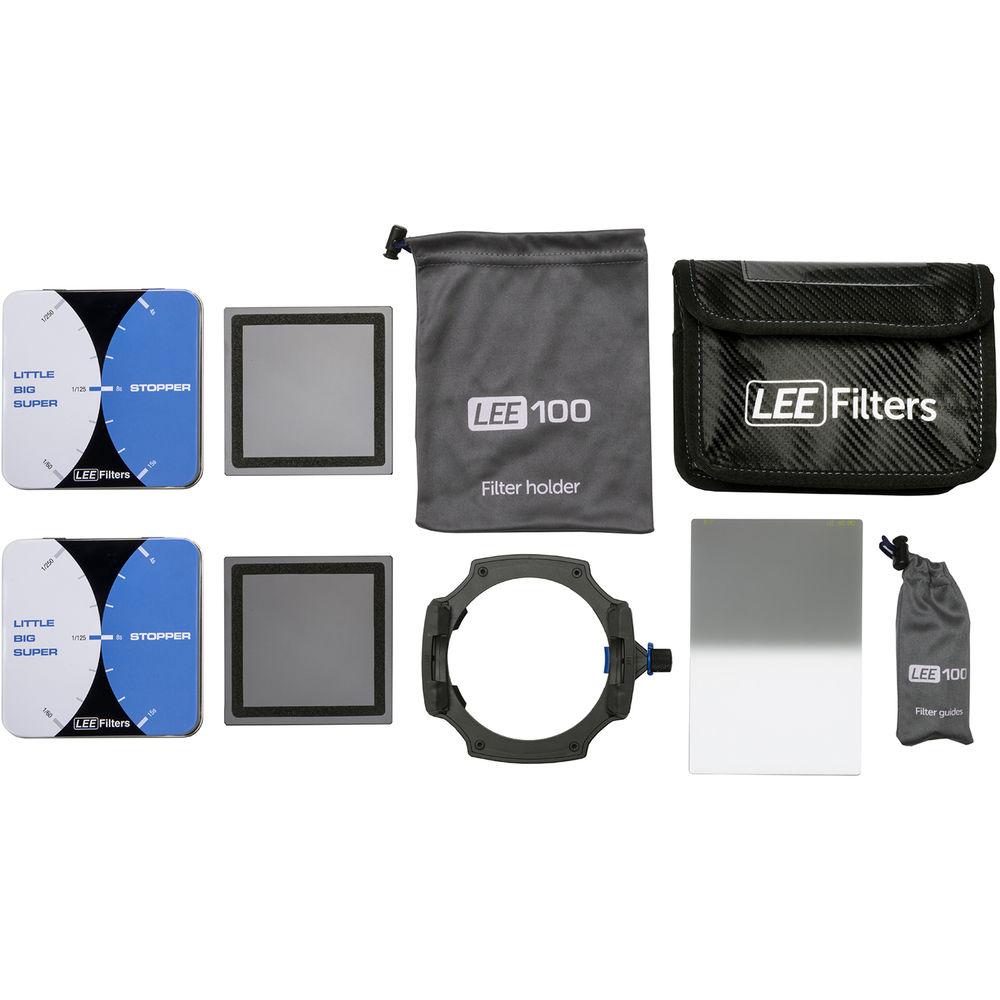

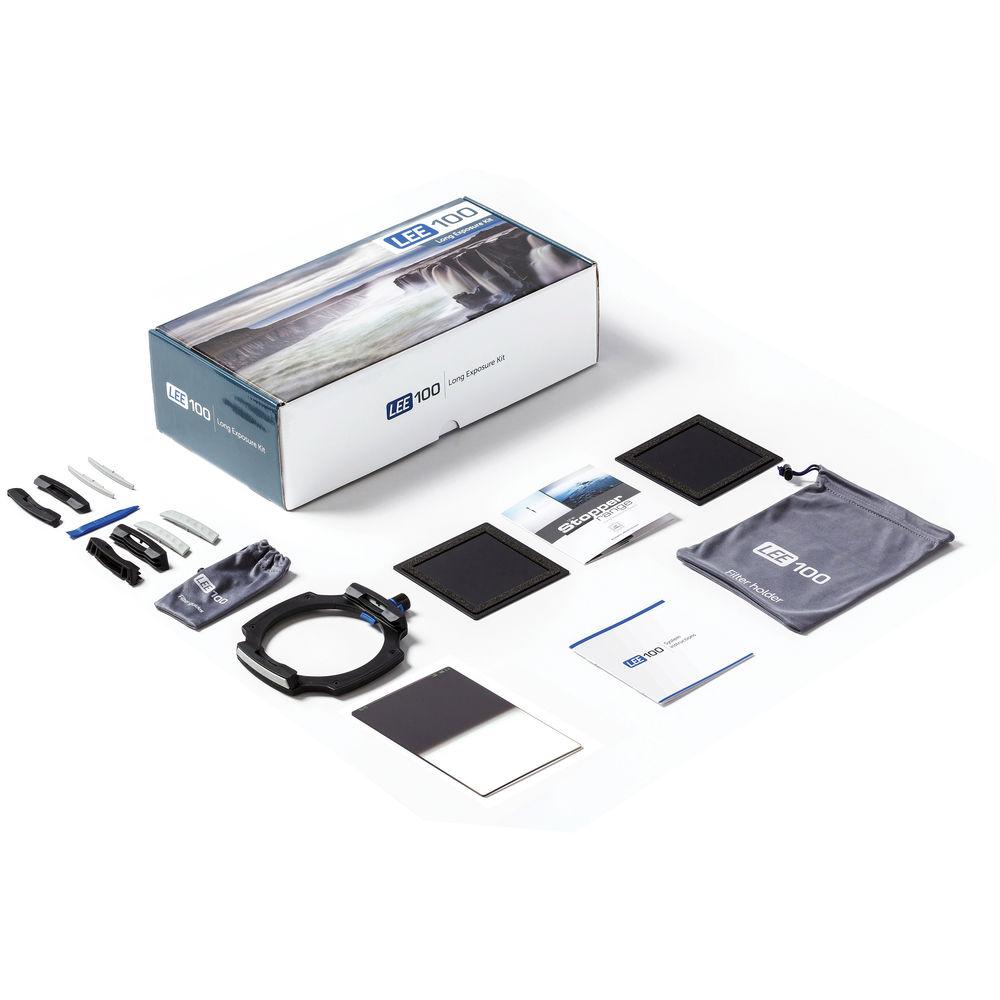

• Filter Holder

• 2 x One-Slot Filter Guide Block

• 2 x Two-Slot Filter Guide Block

• 2 x Three-Slot Filter Guide Block

• 2 x One-Slot Filter Guide Block Cover

• 2 x Two-Slot Filter Guide Block Cover

• 2 x Three-Slot Filter Guide Block Cover

• Filter Guide Block and Cover Tool

• Filter Holder Pouch

• Filter Guide Block Pouch

• Limited Lifetime Warranty

• Filter Pouch

• Limited Lifetime Warranty

• Filter Case

• Warranted Against Manufacturing Defects

• Filter Case

• Warranted Against Manufacturing Defects

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LEE100 Filter Holder

  Filter Capacity	3 x LEE Filters 100 mm
  Material	Fiberglass
  Dimensions	5.75 x 4.75 x 0.75" / 14.61 x 12.06 x 1.91 cm
  Weight	1.9 oz / 54 g

  Box Dimensions (LxWxH)	7.8 x 7.0 x 2.3"

• 100 x 150mm Hard Graduated Neutral Density 0.6 Filter

  Filter Type	Graduated ND
  Graduation Type	Hard Edge
  Density	0.6 (2 Stops)
  Shape	Rectangle
  Rectangular Size	3.9 x 5.9" / 100.0 x 150.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Resin
  Coatings	None

  Box Dimensions (LxWxH)	7.5 x 5.5 x 0.7"

• 100 x 100mm Big Stopper 3.0 Neutral Density Filter

  Filter Type	Solid ND
  Rectangular Size	3.9 x 3.9" / 100.0 x 100.0 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	6.0 x 5.5 x 0.5"

• 100 x 100mm Little Stopper 1.8 Neutral Density Filter

  Filter Type	Solid ND
  Rectangular Size	3.9 x 3.9" / 100.0 x 100.0 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	4.8 x 4.5 x 0.9"
