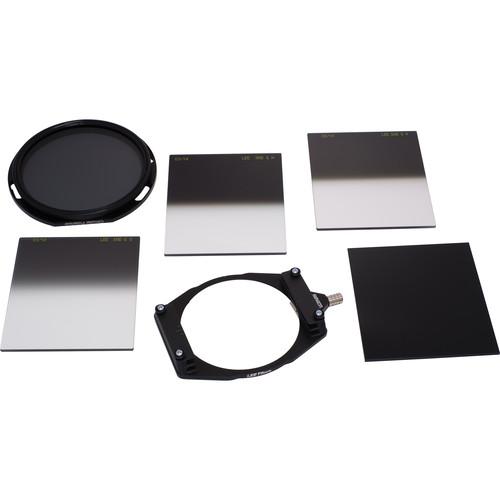

LEE Filters Seven5 Deluxe Kit

User Manual for LEE Filters Seven5 Deluxe Kit

• Product category: Filter Kits LEE Filters
• Brand: LEE Filters
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for LEE Filters Filter Kits

Product description

• Seven5 Filter Holder The LEE Filters Seven5 Filter Holder is a precision-engineered filter holder designed specifically for the Seven5 75 x 90mm filter series. The compact size of the holder and filters is especially suited for compact interchangeable lens cameras, such as mirrorless cameras, and supports the use of two rectangular filters at a time. A dedicated circular polarizer is also available and can be used in combination with other rectangular filters simultaneously. This holder requires the use of a Seven5 adapter ring to attach to lenses with filter ring diameters between 37-72mm.
  • Designed for use with compact interchangeable lens cameras.
  • Requires a Seven5 adapter ring for attaching the holder to a lens. Adapter rings are available in sizes ranging from 37-72mm.
• Seven5 Circular Polarizer Filter The LEE Filters 75 x 90mm Seven5 Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. A polarizer is able to absorb much of this polarized light and, in turn, increase the saturation of skies and foliage, cut through distant haze, and minimize reflections in glass and on water.

  A circular polarizer differs from a linear polarizer in that it integrates a quarter wave plane within a linear polarizing filter. The addition of this helps to circularly polarize reflected light, which enables your camera's autofocus and auto-exposure mechanisms to function properly.

  This filter is constructed from a high quality optical glass for both imaging performance and durability. It features a proprietary clip-on design that enables its compatibility with the Seven5 Micro Filter System, which is specifically designed for use with smaller interchangeable lens cameras. It can be attached to the front of the filter holder and rotated independently from any other rectangular filters in use.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Requires the use of the Seven5 filter holder for use due to its unique clip-on design.
• 75 x 90mm Soft Graduated Neutral Density 0.6 Filter Helping to balance exposure when working in high-contrast situations, the 75 x 90mm Soft Graduated Neutral Density 0.6 Filter from LEE Filters is specifically designed to selectively control brightness in difficult lighting. The filter's design places the 0.6, 2-stop density at the top of the filter and then transitions to clear by the center of the filter for a gradual, natural appearance. The soft-edge transition between the density and clear areas is well-suited for photographing scenes with an indistinct or undefined horizon line, as well as when working with wide-angle lenses. This filter is constructed from optical resin that is both durable and helps to maintain high clarity, and is compatible with the LEE Seven5 filter holder.
  • Graduated neutral density places the most density at the edge of the filter and tapers to clear by the center of the filter in order to accommodate photographing scenes with large bright areas, such as a daytime sky.
  • Soft-edge transition between density and clear portions of the filter is suitable for photographing scenes with an indistinct, non-apparent horizon or line between light and shadow, such as a woodland or interior. It is also well-suited for use with wide-angle lenses.
  • Neutral density 0.6 provides a 2-stop reduction in light in selective areas.
  • Constructed from optical resin for overall clarity and durability.
  • Compatible for use with the LEE Seven5 filter holder.
  • Included filter pouch protects the filter when not in use.
• 75 x 90mm Hard Graduated Neutral Density 0.6 Filter Helping to balance exposure when working in high-contrast situations, the 75 x 90mm Hard Graduated Neutral Density 0.6 Filter from LEE Filters is specifically designed to selectively control brightness in difficult lighting. The filter's design places the 0.6, 2-stop density at the top of the filter and then transitions to clear by the center of the filter for a gradual, natural appearance. The hard-edge transition between the density and clear areas is well-suited for photographing scenes with an even, distinct horizon line, as well as when working with long or telephoto lenses. This filter is constructed from optical resin that is both durable and helps to maintain high clarity, and is compatible with the LEE Seven5 filter holder.
  • Graduated neutral density places the most density at the edge of the filter and tapers to clear by the center of the filter in order to accommodate photographing scenes with large bright areas, such as a daytime sky.
  • Hard-edge transition between density and clear portions of the filter is suitable for photographing scenes with a distinct, well-defined horizon or line between light and shadow, and is also best-suited for use with a long or telephoto lens.
  • Neutral density 0.6 provides a 2-stop reduction in light in selective areas.
  • Constructed from optical resin for overall clarity and durability.
  • Compatible for use with the LEE Seven5 filter holder.
  • Included filter pouch protects the filter when not in use.
• 75 x 90mm Hard Graduated Neutral Density 0.9 Filter Helping to balance exposure when working in high-contrast situations, the 75 x 90mm Hard Graduated Neutral Density 0.9 Filter from LEE Filters is specifically designed to selectively control brightness in difficult lighting. The filter's design places the 0.9, 3-stop density at the top of the filter and then transitions to clear by the center of the filter for a gradual, natural appearance. The hard-edge transition between the density and clear areas is well-suited for photographing scenes with an even, distinct horizon line, as well as when working with long or telephoto lenses. This filter is constructed from optical resin that is both durable and helps to maintain high clarity, and is compatible with the LEE Seven5 filter holder.
  • Graduated neutral density places the most density at the edge of the filter and tapers to clear by the center of the filter in order to accommodate photographing scenes with large bright areas, such as a daytime sky.
  • Hard-edge transition between density and clear portions of the filter is suitable for photographing scenes with a distinct, well-defined horizon or line between light and shadow, and is also best-suited for use with a long or telephoto lens.
  • Neutral density 0.9 provides a 3-stop reduction in light in selective areas.
  • Constructed from optical resin for overall clarity and durability.
  • Compatible for use with the LEE Seven5 filter holder.
  • Included filter pouch protects the filter when not in use.
• 75 x 90mm Seven5 Big Stopper 3.0 Neutral Density Filter The LEE Filters 75 x 90mm Seven5 Big Stopper 3.0 Neutral Density Filter is a solid neutral density filter providing a 10-stop reduction in exposure. This 3.0 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily.

  This filter is constructed from a high quality optical glass for high definition and clarity. It is compatible with the Seven5 Filter System, which is specifically designed for use with smaller interchangeable lens cameras. This filter measures 3 x 3.5" / 75 x 90mm.
  • 3.0 ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 10-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  UPC: 619465039922

• Warranted against Manufacturing Defects

• Cordura Protective Pouch

• Warranted Against Manufacturing Defects

• Filter Pouch

• Limited Lifetime Warranty

• Filter Pouch

• Limited Lifetime Warranty

• Filter Pouch

• Limited Lifetime Warranty

• Filter Case

• Warranted Against Manufacturing Defects

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Seven5 Filter Holder

  Box Dimensions (LxWxH)	4.8 x 4.1 x 1.0"

• Seven5 Circular Polarizer Filter

  Type	Circular polarizer
  Size	Clip-on attachment, compatible with Seven5 filter holder
  Filter Factor	3 to 4 (1.6-2 stops)
  Rotating	Yes
  Effect	Eliminates reflections and haze and improves color and tonal saturation
  Construction	High quality optical glass

  Box Dimensions (LxWxH)	5.8 x 5.5 x 1.3"

• 75 x 90mm Soft Graduated Neutral Density 0.6 Filter

  Filter Type	Graduated ND
  Graduation Type	Soft Edge
  Density	0.6 (2 Stops)
  Shape	Rectangle
  Rectangular Size	2.9 x 3.5" / 75.0 x 90.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Resin
  Coatings	None

  Box Dimensions (LxWxH)	4.0 x 3.7 x 0.5"

• 75 x 90mm Hard Graduated Neutral Density 0.6 Filter

  Filter Type	Graduated ND
  Graduation Type	Hard Edge
  Density	0.6 (2 Stops)
  Shape	Rectangle
  Rectangular Size	2.9 x 3.5" / 75.0 x 90.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Resin
  Coatings	None

  Box Dimensions (LxWxH)	4.0 x 3.8 x 0.5"

• 75 x 90mm Hard Graduated Neutral Density 0.9 Filter

  Filter Type	Graduated ND
  Graduation Type	Hard Edge
  Density	0.9 (3 Stops)
  Shape	Rectangle
  Rectangular Size	2.9 x 3.5" / 75.0 x 90.0 mm
  Filter Thickness	0.08" / 2 mm
  Filter Material	Resin
  Coatings	None

  Box Dimensions (LxWxH)	4.0 x 3.8 x 0.5"

• 75 x 90mm Seven5 Big Stopper 3.0 Neutral Density Filter

  Filter Type	Solid ND
  Density	3.0 (10 Stops)
  Rectangular Size	3 x 3.5" / 76.2 x 88.9 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	5.4 x 5.3 x 0.9"
