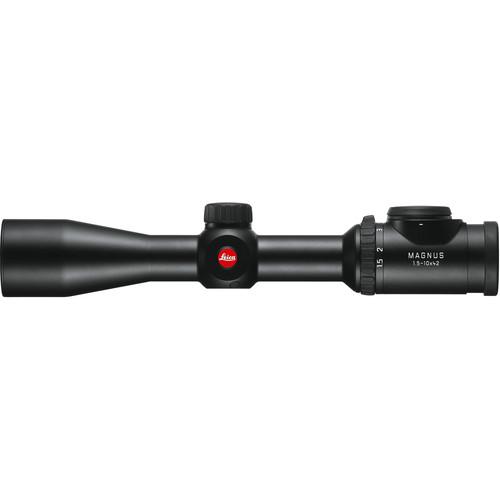

User Manual for Leica 1.5-10x42 Magnus i Riflescope with BDC Elevation Turret Click to enlarge the picture
Contents of the user manual for the Leica 1.5-10x42 Magnus i Riflescope with
- Product category: Riflescopes Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Riflescopes
|
User manual for the Leica 1.5-10x42 Magnus i Riflescope with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Drawing on its tradition of optical craftsmanship and precision manufacturing, Leica delivered the 1.5-10x42 Magnus i Riflescope to empower you with uncompromising optical performance and lasting durability and safety. At the core of this riflescope is an expertly designed optical system with precision optics that provide high-contrast and high-sharpness images. To enhance optical performance and to bring total throughput to 92%, the optical system is outfitted with full multi-coatings and a baffle system to reduce stray light. To protect lenses from moisture and to ensure clear views during adverse weather conditions, optical surfaces are enhanced with the Aqua-Dura hydrophobic coating that repels water droplets. With the 42mm objective, this riflescope can become a reliable partner for making that perfect shot, even in the challenging lighting conditions and to deliver bright, crisp, and clearly visible images. This riflescope offers all necessary convenient features like a generous eye relief and a diopter adjustment. Another central highlight of this scope is the L-Ballistic Reticle. Inspired by the German # 4 style, the reticle offers three medium posts, a thin crosshair with ballistic markings, and an illuminated ultra-fine yet well-defined, brilliant red center dot. The dot's brightness offers 60 settings and can be adjusted to accommodate your preferences and any lighting conditions. The crosshair line casts a 0.2" (0.5cm) subtension and offers ballistic markings below the red dot, spaced at 1.9" (5cm). The reticle also offers a parallax-free performance at 100 yards. To save battery power, the auto-off function is activated when you tilt the rifle 75° or after 3 minutes of inactivity. To make the most of what the reticle has to offer, this riflescope features a special BDC turret that gives you a rapid holdover adjustment capability of 9.3 mil per turn with 0.1 mil increments. It offers simple and precise targeting at ranges up to 1000 yards with almost any cartridge. The turret is resettable and lockable and provides a zero stop.
To ensure lasting durability for years of service, the housing is almost over-engineered. It is made from high quality aluminum alloy and features a 30mm maintube with a 1.5mm thick wall for exceptional durability and safety. Among other highlights are waterproof and fogproof performance, low-profile capped turrets that can be re-zeroed without tools, knurled and easy-to-operate in gloves knobs and rings, slim eyepiece, and a redesigned-for-efficiency battery compartment. The magnification ring also features a low-profile lever, just in case you need to bump up that zoom factor instantly. - Optical Performance
-
- Fully multi-coated optics
- 42mm objective delivers bright images in most conditions
- Total system transmission is greater than 92%
- High-contrast and true-color images
- AquaDura water-repellent lens coating
- 3.5" eye relief
- BDC Elevation Turret
-
- Allows for rapid reticle holdover adjustment
- Offers simple and precise targeting over long ranges
- Zero stop, zero resettable, single turn, and locking
- 9.3 mil per turn with 0.1 mil increments
- Allows compensating out to 1000 yd with any cartridge
- Use and Handling
-
- 1cm impact point correction
- 150cm elevation range
- 140cm windage range
- L-Ballistic Reticle
-
- 2nd focal plane
- German #4-inspired style
- Ballistic marking below the red dot
- Three medium well defined posts
- Thin crosshair subtends 0.5cm at 100 meters
- Gate between horizontal posts spans 644-100cm at 100 meters
- Sharp and brilliant red dot
- 60-step day/night illumination
- Auto-off when tilted ± 75° or after 3 minutes
- Construction Details
-
- 30mm maintube diameter
- 1.5mm thick maintube wall
- High quality aluminum housing
- Matte black anodized finish
- Designed for durability and safety
- Knurled windage and elevation adjustment dials
- Re-zeroing does not require tools
- Illumination control has safety feature to prevent accidental on/off
- Battery compartment offers efficient replacement
- Slim eyepiece design
- Waterproof, submersible to 13.1'
- Nitrogen-filled, fogproof
- Shock-resistant
In the Box Leica 1.5-10x42 Magnus i Riflescope with BDC Elevation Turret (L-Ballistic Illuminated Reticle, Matte Black) - 2 x Lens Caps
- Cleaning Cloth
- CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 1.5-10x42 Magnus i Riflescope with BDC Elevation Turret in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 53114 Specs | | | Magnification | 1.5 to 10x | | Objective Lens Diameter | 42 mm | | Field of View | 1.5x: 78' @ 100 yd / 26 m @ 100 m
10x: 12.3' @ 100 yd / 4.1 m @ 100 m | | Exit Pupil Diameter | 1.5x: 4.2 mm
10x: 12.4 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -4.0 to +3.0 | | | | Reticle Type | L-Ballistic Reticle (Second Focal Plane) | | | | Filter Thread | M46 x 0.75 | | Parallax Correction | Yes, 109.4 yd / 100 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.5" / 31.9 cm | | Weight | 22.9 oz / 650 g |
