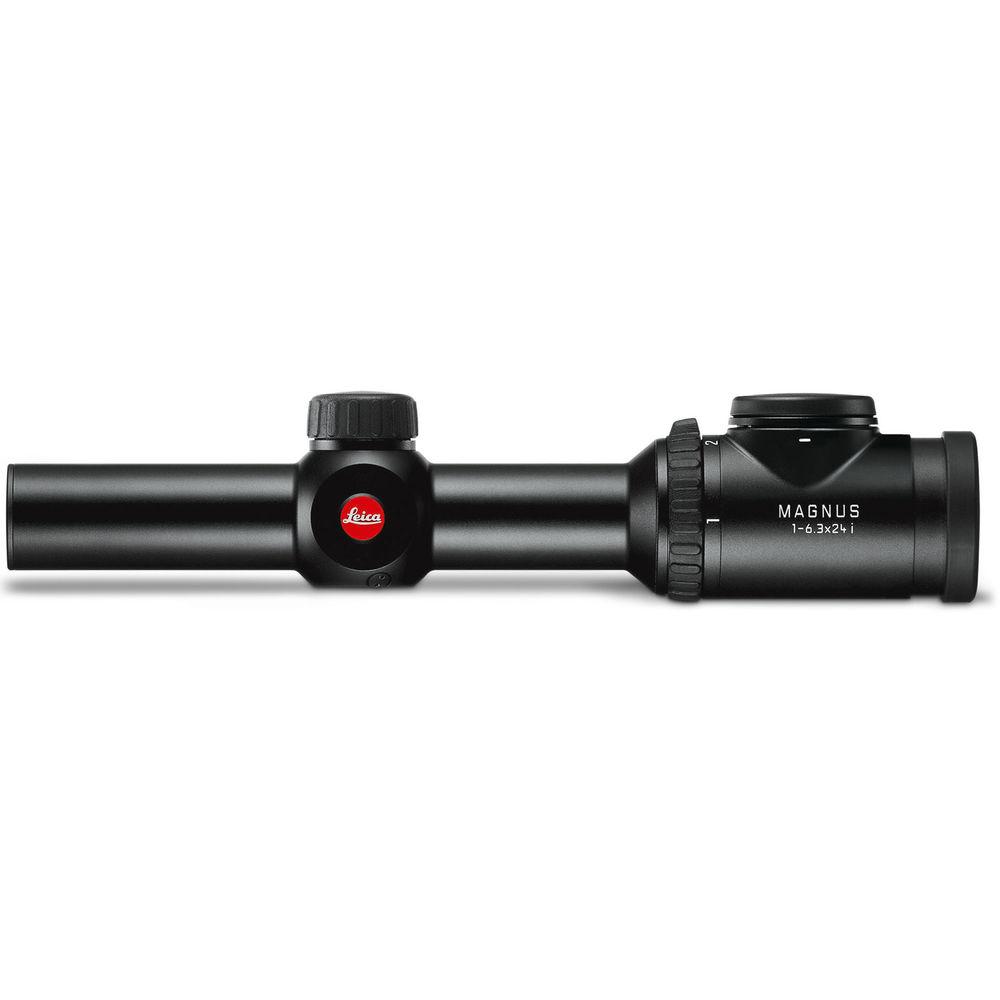

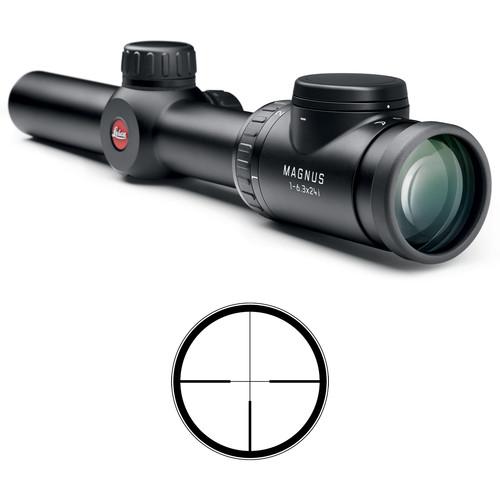

Product description Drawing on its legendary tradition of optical craftsmanship, engineering excellence, and precision manufacturing, Leica delivered the 1-6.3x24 Magnus i Riflescope for uncompromising durability, safety, and performance. At the core of this riflescope is an expertly-designed optical system with high-quality glass elements that are ground and polished to the highest standards of optical craftsmanship. To increase the total throughput to 91%, the optics are also treated with full multi-coatings and a baffle system to reduce stray light. To ensure that no weather conditions bring down the outstanding performance of this fine telescopic sight, the exterior objective lens surface is also enhanced with the hydrophobic AquaDura coating that repels water droplets and moisture. With the 24mm objective, this riflescope can become a reliable partner for making that perfect shot while yielding a minimal forward glint.

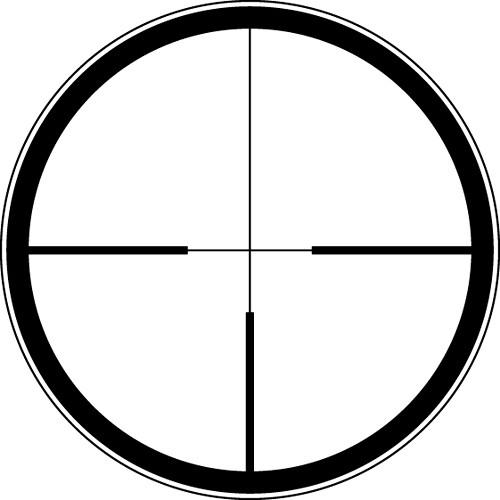

Another central highlight of this scope is the L-4A Reticle. Inspired by the German # 4 style, the reticle offers three medium posts, a thin crosshair, and an illuminated ultra-fine yet well-defined, brilliant red center dot. The dot's brightness offers 60 settings and can be adjusted to accommodate your preferences and any lighting conditions. The reticle also offers a parallax-free performance at 100 yards. To save battery power, the auto-off function is activated when you tilt the rifle 75° or after 3 minutes of inactivity.
To ensure dependability for years of service, the housing is made from high-quality aluminum alloy and features a 30mm maintube with a 1.5mm-thick wall to improve strength and safety. Among other highlights are the waterproof and fogproof performance, low-profile capped turrets that can be re-zeroed without tools, knobs and rings that are knurled and easy-to-operate in gloves, a slim eyepiece, and a redesigned-for-efficiency battery compartment. The magnification ring also features a low-profile lever to enable you to change zoom factor instantly. For a distinct Leica appearance, the finish was hand-polished, and the markings are stylus-engraved and hand-painted. - Optical Performance
-
- Fully multi-coated optics
- 1 - 6.3x optical zoom magnification
- 24mm objective gives minimal forward glint
- Total system transmission is greater than 91%
- High-quality optical glass delivers high-contrast, true-color images
- AquaDura water-repellent lens coating
- L-4a Reticle
-
- 2nd focal plane
- German #4-inspired style
- Three medium well defined posts and a thin crosshair
- Sharp and brilliant red dot with 60-step day/night illumination
- Auto-off after 3 minutes or when tilted ± 75°
- Use and Handling
-
- 1cm impact point correction
- 200cm elevation range
- 140cm windage range
- Knurled windage and elevation adjustment dials
- Illumination control has safety feature to prevent accidental on/off
- 3.5" eye relief
- Exit pupil: 3.8 - 12.4 mm
- Construction Details
-
- 30mm maintube diameter
- 1.5mm-thick maintube wall
- High-quality aluminum housing
- Matte black anodized finish
- Designed for durability and safety
- Re-zeroing does not require tools
- Battery compartment offers efficient replacement
- Slim eyepiece design
- Waterproof, submersible to 13.1'
- Nitrogen-filled, fogproof
- Shock-resistant
UPC: 799429521226 In the Box Leica 1-6.3x24 Magnus i Riflescope (Illuminated L-4a Reticle, Matte Black) - 2 x Lens Caps
- Cleaning Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 1-6.3x24 Magnus i Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 52122 Specs | | | Magnification | 1 to 6.3x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 129.5' @ 100 yd / 43.2 m @ 100 m
6.3x: 19.5' @ 100 yd / 6.5 m @ 100 m | | Exit Pupil Diameter | 1x: 3.8 mm
6x: 12.4 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -4.0 to +3.0 | | | | Reticle Type | L-4a Reticle (Second Focal Plane) | | | | Filter Thread | M46 x 0.75 | | Parallax Correction | Yes, 109.4 yd / 100 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.7" / 272 mm | | Weight | 19.2 oz / 544 g |
