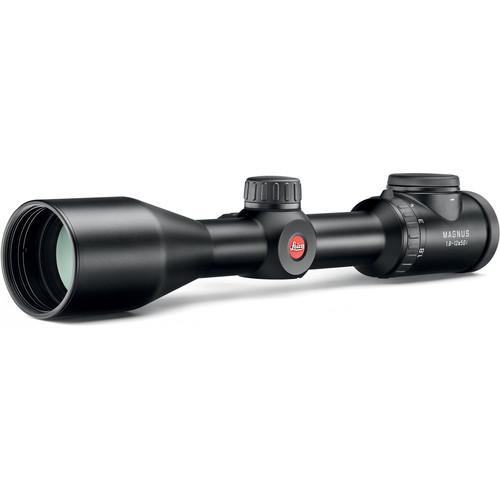

User Manual for Leica 1.8-12x50 Magnus i Riflescope Click to enlarge the picture
Contents of the user manual for the Leica 1.8-12x50 Magnus i Riflescope
- Product category: Riflescopes Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Riflescopes
|
User manual for the Leica 1.8-12x50 Magnus i Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Drawing on its legendary tradition in optical craftsmanship, engineering excellence, and precision manufacturing, Leica created the 1.8-10x50 Magnus i Riflescope for uncompromising durability, safety, and performance. At the core of this riflescope is an expertly-designed optical system with high-quality glass elements that were ground and polished to the highest standards of optical craftsmanship. To bring the total throughput to 91%, the high-quality glass elements are treated with full multi-coatings and a baffle system that reduces stray light. To ensure that no weather conditions can bring down the outstanding performance of this telescopic sight, the exterior objective lens surface is also enhanced with the hydrophobic AquaDura coating that repels water droplets and moisture. Featuring a wide 50mm objective, capable of performing well in low-light conditions like dusk or dawn, this riflescope can become a reliable partner for making that perfect shot. This telescopic sight also has a generous eye relief and a diopter adjustment.
Another central highlight of this scope is the L-Ballistic Reticle. Inspired by the German # 4 style, the reticle offers three medium posts, a thin crosshair with ballistic markings, and an illuminated ultra-fine yet well-defined, brilliant red center dot. The dot's brightness offers 60 settings and can be adjusted to accommodate your preferences and any lighting conditions. The crosshair line casts a 0.2" (0.5cm) subtension and offers ballistic markings below the red dot, spaced at 1.9" (5cm). The reticle also offers a parallax-free performance at 100 yards. To save battery power, the auto-off function is activated when you tilt the rifle 75° or after 3 minutes of inactivity.
The housing is almost over-engineered to ensure years of dependable service. It is crafted from high-quality aluminum alloy and features a 30mm maintube with a 1.5mm thick wall for increased strength and safety. Among other highlights are the waterproof and fogproof performance, low-profile capped turrets that can be re-zeroed without tools, easy-to-operate knurled knobs and rings (even while wearing gloves), a slim eyepiece, and a redesigned-for-efficiency battery compartment. The magnification ring also features a low-profile lever to enable you to adjust zoom factor instantly. For a distinct Leica appearance, the finish is hand-polished, and the markings are stylus-engraved and hand-painted. - Optical Performance
-
- Fully multi-coated optics
- 50mm objective give minimal glint
- Total system transmission is greater than 91%
- High-contrast and true-color images
- AquaDura water-repellent lens coating
- 3.5" eye relief
- Use and Handling
-
- 1cm impact point correction
- 150cm elevation range
- 140cm windage range
- Illuminated L-Ballistic Reticle
-
- 2nd focal plane
- German #4-inspired style
- Ballistic marking below the red dot
- Three medium well-defined posts
- Thin crosshair subtends 0.5cm at 100 meters
- Sharp and brilliant red dot with 60-step day/night illumination
- Auto-off when tilted ± 75° or after 3 minutes
- Construction Details
-
- 30mm maintube diameter
- 1.5mm thick maintube wall
- High quality aluminum housing
- Matte black anodized finish
- Designed for durability and safety
- Knurled windage and elevation adjustment dials
- Re-zeroing does not require tools
- Illumination control has safety feature to prevent accidental on/off
- Battery compartment offers efficient replacement
- Slim eyepiece design
- Waterproof, submersible to 13.1'
- Nitrogen-filled, fogproof
- Shock-resistant
UPC: 799429531751 In the Box Leica 1.8-12x50 Magnus i Riflescope (Illuminated L-Ballistic Reticle, Matte Black) - 2 x Lens Caps
- Cleaning Cloth
- CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 1.8-12x50 Magnus i Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 53175 Specs | | | Magnification | 1.8 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 1.8x: 67.5' @ 100 yd / 22.5 m @ 100 m
12x: 11.1' @ 100 yd / 3.7 m @ 100 m | | Exit Pupil Diameter | 1.8x: 4.2 mm
12x: 12.4 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -4.0 to +3.0 | | | | Reticle Type | L-Ballistic Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Filter Thread | M52 x 0.75 | | Parallax Correction | Yes, 109.4 yd / 100 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.2" / 36.1 cm | | Weight | 24.7 oz / 700 g |
