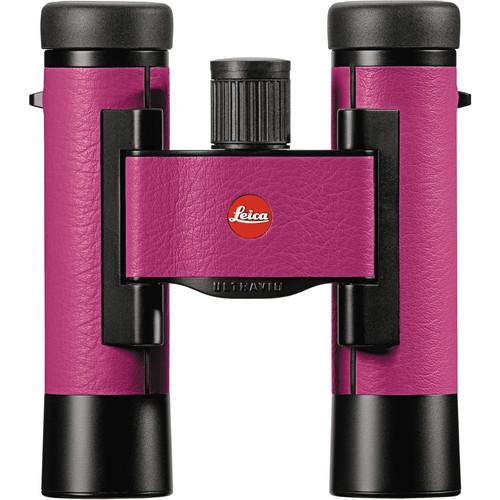

User Manual for Leica 10x25 Ultravid Colorline Binocular Click to enlarge the picture
Contents of the user manual for the Leica 10x25 Ultravid Colorline Binocular
- Product category: Binoculars Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Binoculars
|
User manual for the Leica 10x25 Ultravid Colorline Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The Cherry Pink edition 10x25 Ultravid Colorline Binocular from Leica combines the fully multicoated optical path and weather-sealed aluminum housing common to all Ultravid compacts, and wraps this premium optic in vivid pink leather. Included with this special edition Ultravid model is a leather carrying case with styling and vividness matching the binocular. A dual-hinge bridge allows you to further reduce the footprint of these handsome glasses by folding the barrels under the bridge.Leica equips the Colorline series with multicoated aspherical lenses and roof prisms finished with Leica's proprietary P40 phase-correction and HighLux System coatings. The images transmitted by these Ultavid optics are bright and color faithful, as well as sharp and contrast-rich from center to edge. A weather sealed aluminum housing delivers fogproof performance and are guaranteed not to fog in rainy or humid conditions. The twist-up rubber eyecups and 15mm eye relief allow a comfortable viewing distance for almost any viewer. A 52° apparent viewing angle and 10.5 ft close focus distance make this configuration of the Ultravid a full-featured binocular for a wide range of observations. - Optical Performance
-
- Magnification: 10x
- Objective lenses: 25mm diameter
- Apparent viewing angle: 52°
- Fully multicoated optics
- Aspherical lenses preserve edge sharpness
- P40 phase-correction prism coating improves color fidelity and sharpness
- HighLux-System maximizes image brightness and clarity
- 10.5 ft close focus distance
- 15mm eye relief
- Use and Handling
-
- Twist-up rubber eyecups
- Dual-hinge bridge enables reduced footprint and expanded interpupillary range
- Construction Details
-
- Aluminum chassis with Cherry Pink leather trim
- AquaDura hydrophobic protective lens coating
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof depth: 16.5 ft
- Weight: 9 oz
UPC: 799429406363 In the Box Leica 10x25 Ultravid Colorline Binocular (Cherry Pink) Carrying Strap Lens Caps Cherry Pink Leather Carrying Case Limited 2-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 10x25 Ultravid Colorline Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica Colorline Specs | Prism Type | Roof | | Magnification | 10.0 x | | Objective Lens Diameter | 25 mm | | Angle of View | 5.2° (actual) | | Field of View | 273.0' @ 1000 yd / 91.0 m @ 1000 m | | Minimum Focus Distance | 67.8' / 20.7 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 15 mm | | Interpupillary Adjustment | 5.3 to 11.5 mm / 13.4 to 29.1" | | Dioptric Correction | ±3.5 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.4 x 3.7 x 1.5" / 111.0 x 93.0 x 39.0 mm | | Weight | 8.99 oz / 254.87 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 6.9 x 4.2 x 3.7" |
