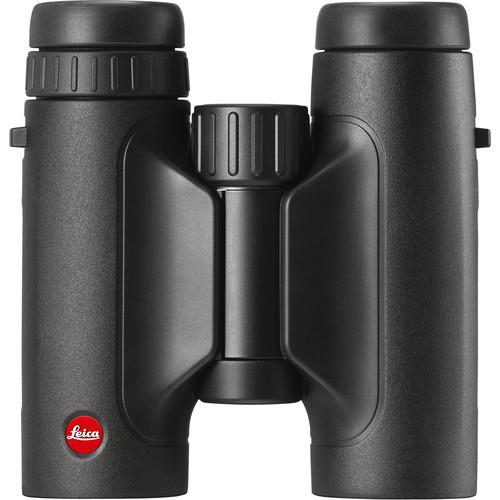

User Manual for Leica 10x32 Trinovid HD Binocular Click to enlarge the picture
Contents of the user manual for the Leica 10x32 Trinovid HD Binocular
- Product category: Binoculars Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Binoculars
|
User manual for the Leica 10x32 Trinovid HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Striking a sensitive balance between compact and full-sized, the Leica 10x32 Trinovid HD Binocular enjoys the performance of the latter, and the easy portability of the former without sacrifice. Engineered with the technology that users have come to expect from the brand, the Trinovid features P40 phase-corrected prisms treated with their HighLux system to limit internal light diffraction and eliminate interference for improved clarity, sharpness, and contrast. The objective lenses are fully multi-coated with Leica's HDC coatings for maximum light transmission through the optical path to ensure accurate color fidelity and high-contrast views, especially in challenging lighting conditions. These technologies work together and complement each other to produce an immersive observational experience with bright images that are clear and sharp across a field of view that approaches wide angle. To capture extremely close-up views of small birds, bugs, butterflies, and insects, the Trinovid is equipped with a powerful 10x magnification and an exceptionally short 3.3' minimum focus distance.Built to withstand the rigors of the outdoors, the chassis is made of a lightweight and durable aluminum-alloy wrapped in a protective slip-resistant rubber armor. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof, and resistant to internal fogging when moving through extreme temperature changes or conditions. A wide interpupillary adjustment range, generous ±4dioptric correction, long 16mm eye relief, and four-position click-stop eyecups ensures easy and comfortable use by most people. From its exceptional optical performance to the thoughtful construction details, this mid-sized Trinovid delivers performance while being comfortable in the hand during long observation sessions on the trail, at the range, in the stadium, or sightseeing around town. - Optical Performance
-
- 10x magnification
- 32mm objective lenses
- Compact roof prism optical path
- P40 phase corrected prism coatings increases contrast and clarity while eliminating halos and comas
- HLS (HighLux System): Highly-reflective coatings on prisms reduce internal light loss
- HDC anti-reflection fully multi-coatings increase light transmission throughout optical path to improve color rendition, brightness, clarity, and contrast
- Dirt and water-repellent AquaDura coating on outer lens surfaces makes them easy to clean, ensuring clear views
- Wide 62° apparent angle of view
- 342' field of view at 1000 yards
- Short 3.3' (1m) close focus distance
- Use and Handling
-
- Closed-bridge configuration
- Large, knurled center focusing wheel is easy to manipulate even when wearing gloves
- ±4 right-eye dioptric correction
- 58-76mm interpupillary adjustment range
- Twist-up four-position click-stop rubber eyecups for comfortable use with or without eyewear
- Long 16mm eye relief
- 3.2mm exit pupil
- Construction Details
-
- Lightweight and durable aluminum-alloy chassis
- Protective rubber armor provides a slip-resistant grip
- Nitrogen-filled and O-ring sealed to be waterproof for 13'(4m), and resistant to internal fogging when moving through extreme temperatures and conditions
- Weight: 22.6 ounces
UPC: 799429403171 In the Box Leica 10x32 Trinovid HD Binocular Contoured Neoprene Carrying Strap Cordura Nylon Carrying Case One-Piece Ocular Rainguard 2 x Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 yrufyzywvbartdctfybfuw User Manual PDF 4.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 10x32 Trinovid HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 40317 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 32 mm | | Angle of View | 61.8° (apparent) | | Field of View | 324.4' @ 1000 yd / 108.1 m @ 1000 m | | Minimum Focus Distance | 3.3' / 1 m | | Exit Pupil Diameter | 3.2 mm | | Eye Relief | 16.0 mm | | Interpupillary Adjustment | 58 to 76 mm / 2.3 to 3" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 5.1 x 4.6 x 2.6" / 13.0 x 11.7 x 6.5 cm | | Weight | 22.58 oz / 640.0 g | | | | Package Weight | 2.715 lb | | Box Dimensions (LxWxH) | 9.55 x 7.8 x 5.35" |
