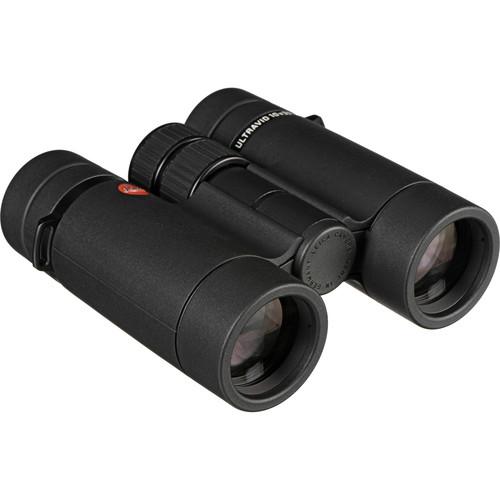

User Manual for Leica 10x32 Ultravid HD-Plus Binocular Click to enlarge the picture
Contents of the user manual for the Leica 10x32 Ultravid HD-Plus Binocular
- Product category: Binoculars Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Binoculars
 |
User manual for the Leica 10x32 Ultravid HD-Plus Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

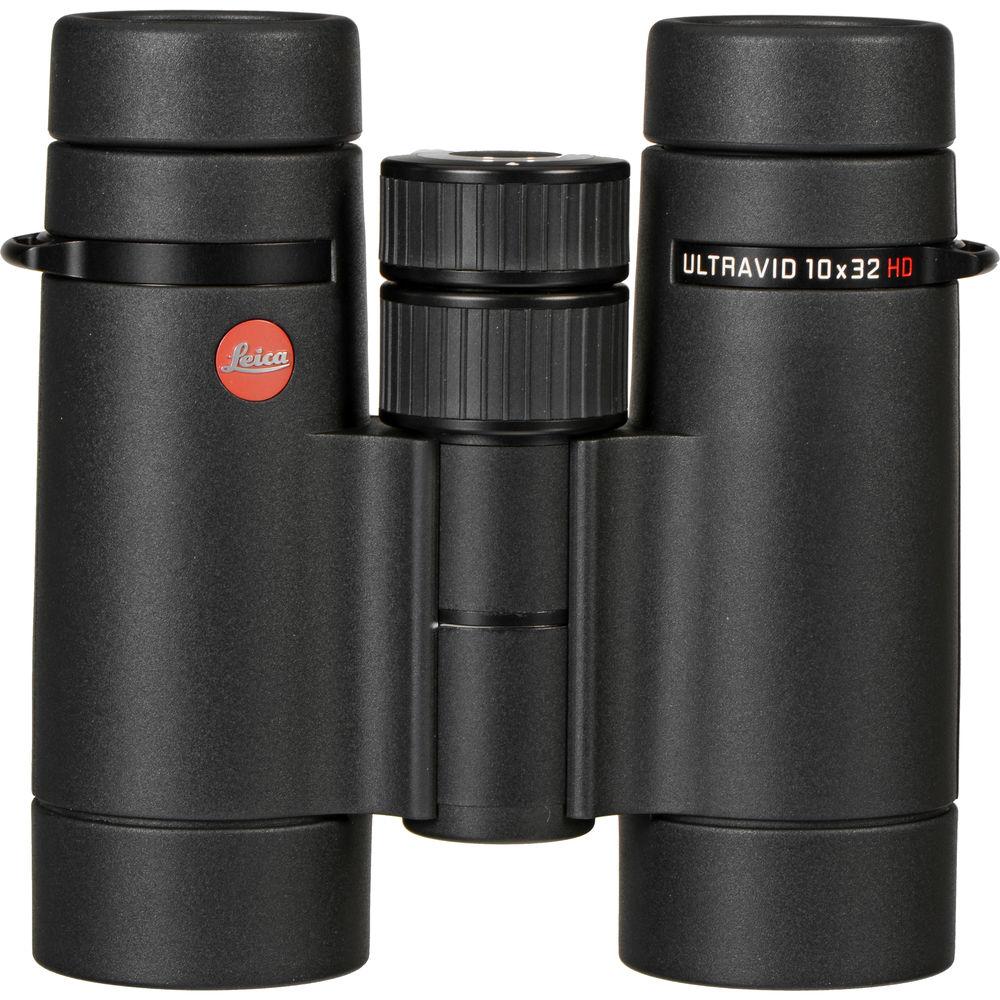

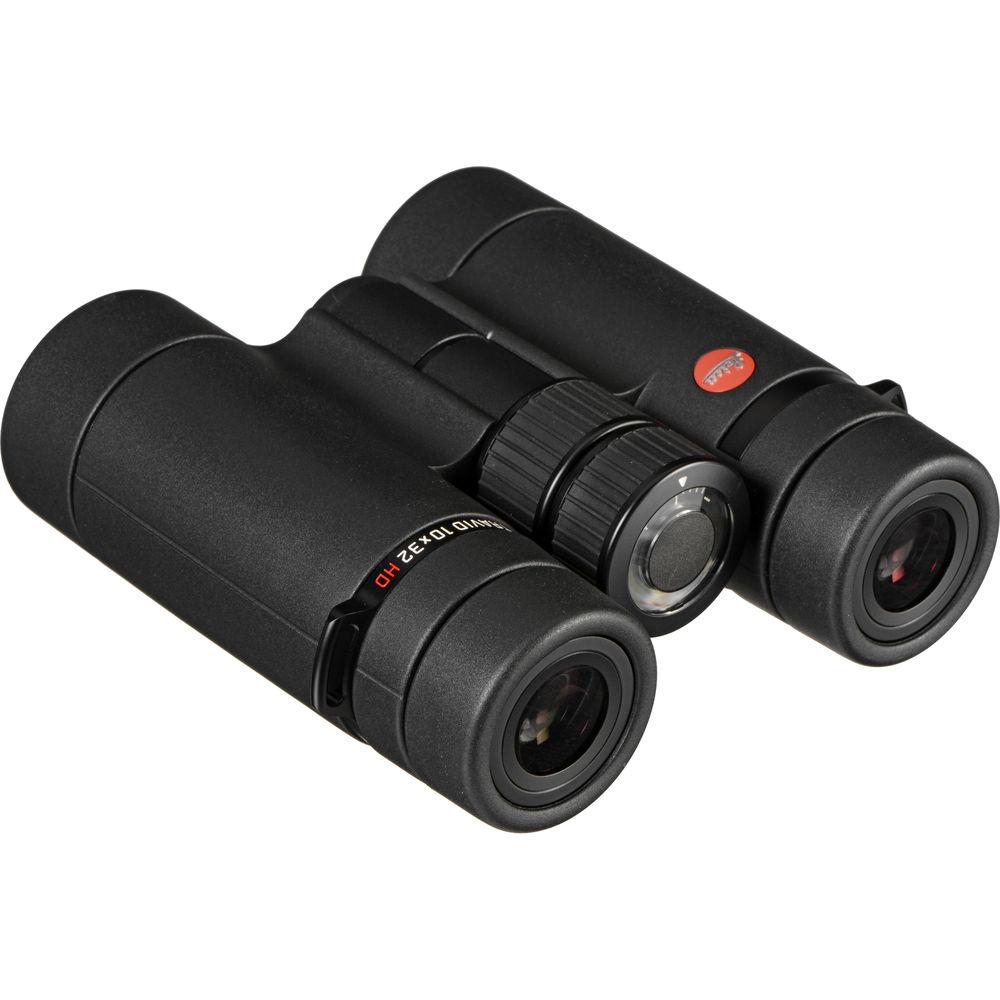

Product description The B&H Binocular Buying Guide Read More Built with the same materials and to the same precise specifications as the larger models, Leica's 10x32 Ultravid HD-Plus Binocular delivers bright and clear high-contrast images across the entire field of view with true color rendition and virtually zero distortion. The smaller objectives reduce the overall size and weight for better portability and less muscle strain during long-duration viewing sessions, while still delivering competent low-light performance. Helping to compensate for the distracting hand shake common with using 10x and greater optics, is a wide 67° apparent viewing angle. This allows the use of high-magnification binoculars without the need for stabilization equipment such as harnesses.Leica employs specially formulated SCHOTT HT glass, which increases light transmission especially in the blue-violet light band, improves color fidelity, and enhances low-light performance. Scratch- and abrasion-resistant High Durable Coating (HDC) and hydrophobic AquaDura coating on the outer lenses protect surfaces and cause water and oil to bead off for easier cleaning and clearer vision. The roof prisms feature P40 phase correction and proprietary High Lux System (HLS) coatings. These coatings virtually eliminate chromatic aberration for enhanced color rendition and increased contrast.Complementing the optical performance are uncompromising construction details. To reduce user fatigue during long glassing sessions, the chassis is made of a lightweight yet durable magnesium alloy, with a high-tensile titanium center hinge axle. The optical tubes are nitrogen filled for fogproof performance and sealed to make the binocular submersible to 16 feet. Ergonomic thumb indents on the bottom of the binocular coupled with protective rubber armoring provide a comfortable slip-resistant grip. A lubrication-free focus system provides fast and precise focusing, with PETP-Discs to provide smooth movement throughout the broad operating temperature range. - Optical Performance
-
- 10x magnification
- 32mm objective lens diameter
- Compact roof prism optical path
- SCHOTT HT glass increases light transmission, especially in the blue-violet band, improves color fidelity, and enhances low-light performance
- P40 and proprietary High Lux System (HLS) prism coatings
- High-temperature plasma lens coating depositing system for precise optical coating placement
- Phase-corrected prisms reduce chromatic aberration for enhanced color rendition
- Scratch- and abrasion-resistant High Durable Coating (HDC) and hydrophobic AquaDura coating on outer lenses protect surfaces and cause water and oil to bead off lenses for easier cleaning and clearer vision in bad weather
- Wide 67° apparent angle of view
- 355' field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration
- Lubricant-free center focus system with PETP-Discs provides smooth movement throughout the operating temperature range
- ±4 right-eye dioptric correction
- Locking center diopter adjustment wheel
- Twist-out four-stage click-stop eyecups
- Flip-down tethered objective lens caps
- Long 13.2mm eye relief
- 3.2mm exit pupil
- Construction Details
-
- Light and durable magnesium chassis
- Titanium center hinge axle
- Slip-resistant protective rubber-armored body
- Nitrogen filled, fogproof and watertight to 16'/5m
- Broad -13 to 131°F operating temperature
- Ergonomic thumb rests for added comfort and a better grip
UPC: 799429400910 In the Box Leica 10x32 Ultravid HD-Plus Binocular Cordura Nylon Case Contoured Neoprene Strap 2 x Eyepiece Caps 2 x Objective Lens Caps 3-Year Leica No-Fault "Passport" Warranty Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 uzxduqurbtesdbcyzfvwxybexszvveuvsu A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 10x32 Ultravid HD-Plus Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica HD-Plus Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 32 mm | | Angle of View | 6.7° (Actual) | | Field of View | 351.7' @ 1000 yd / 117.2 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 3.2 mm | | Eye Relief | 13.2 mm | | Interpupillary Adjustment | 8.1 to 11.5 mm / 20.5 to 29.1" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.7 x 4.6 x 2.2" / 12.0 x 11.6 x 5.6 cm | | Weight | 19.93 oz / 565 g | | | | Package Weight | 2.485 lb | | Box Dimensions (LxWxH) | 9.55 x 7.85 x 5.25" |
