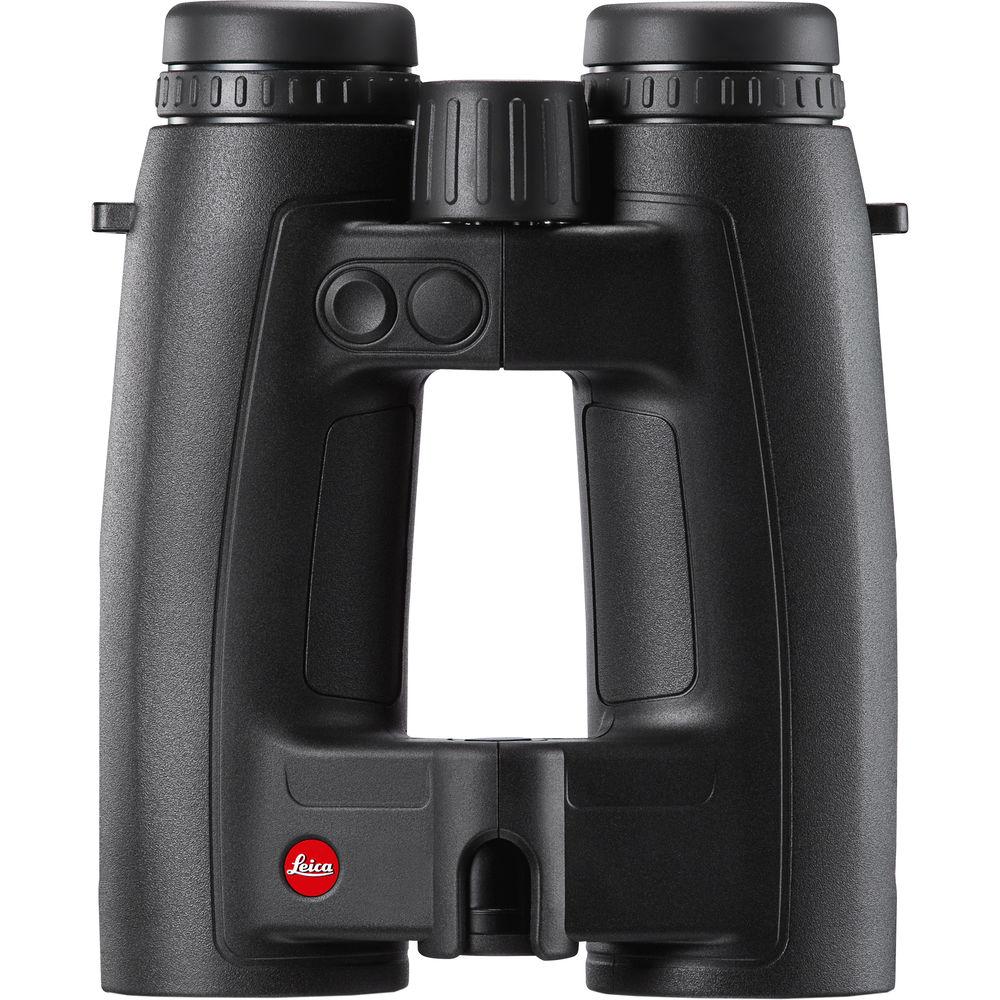

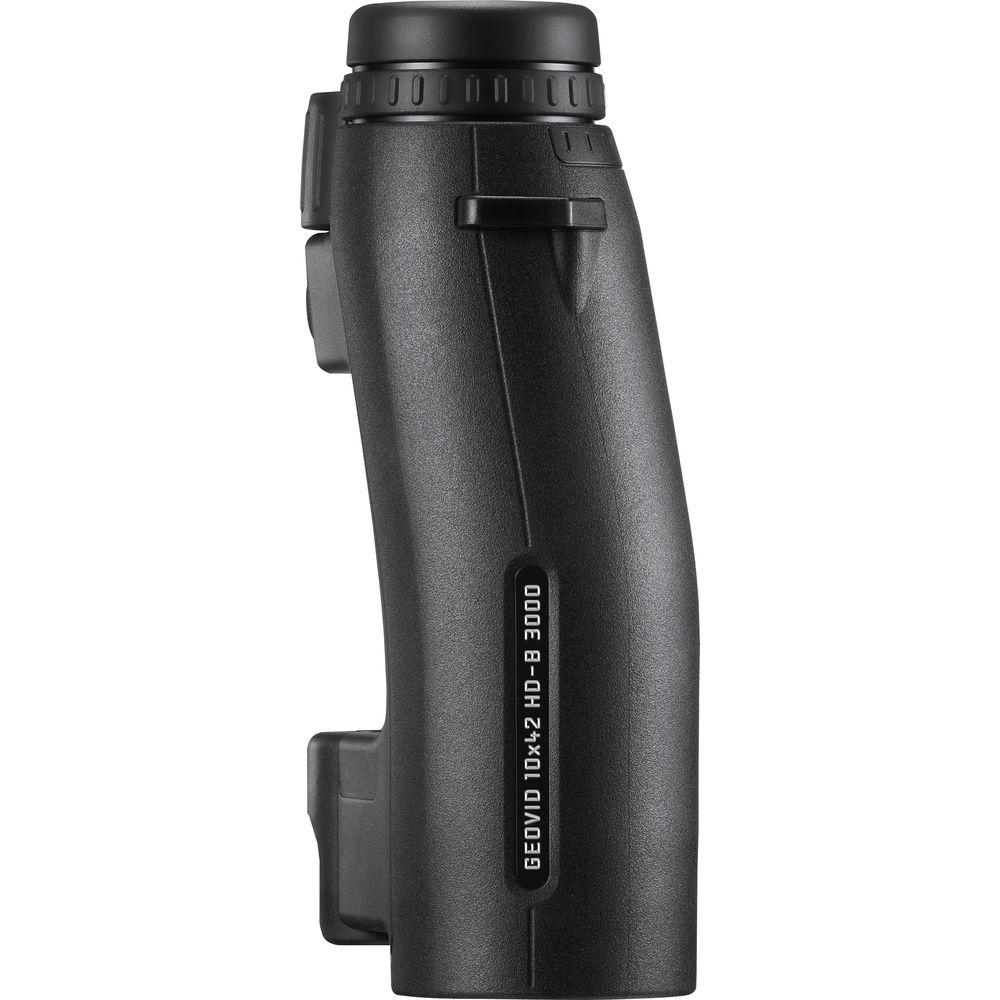

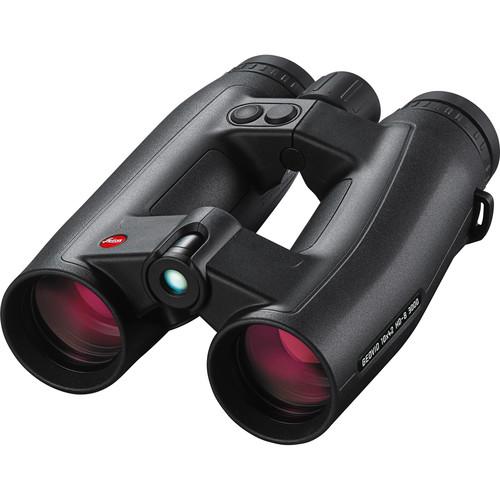

User Manual for Leica 10x42 Geovid HD-B 3000 Rangefinder Binocular Click to enlarge the picture
Contents of the user manual for the Leica 10x42 Geovid HD-B 3000 Rangefinder
- Product category: Laser Rangefinders Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Laser Rangefinders
 |
User manual for the Leica 10x42 Geovid HD-B 3000 Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description The Leica 10x42 Geovid HD-B 3000 Rangefinder Binocular combines powerful optical performance with a long-distance 3000-yard laser rangefinder and ballistic computer into a highly portable and easy-to-use optic.Optically, the Geovid utilizes Leica's Perger-Porro prism optical design that yields the compact form factor of a roof prism with the rich depth of field and interference-free light path of a traditional Porro prism. To further improve image quality, is an internal baffle system to suppress stray light and the HDC fully multi-coated optical system that maximizes light transmission, while improving color fidelity and contrast. Its ultra-wide field of view helps to minimize the appearance of the distracting hand-shake that is often associated with holding powerful optics such as this, while also presenting the user with an immersive observational experience.The range finding system integrates an inclinometer and ballistics computer with the powerful IR laser to improve first-shot accuracy. Its inclinometer measures the relative angle from the user to the target, then combines that with the linear range, to provide an adjusted distance to enable them to better judge the hold-over/-under. The addition of Leica's Advanced Ballistic Compensation system utilizes one of 12 pre-programmed ballistic curves based on common ammunition loads, combined with the adjusted range and environmental conditions, to further improve hold-over/-under accuracy. Users can also create custom curves on the Leica website and load them onto the Geovid, refining the precision even more. Hold-over/-under values can be displayed as the adjusted range, the relative angle, or in MOA/Mils to enable fast click adjustments to riflescope turrets.Leica employs an open-bridge/dual-hinge design that makes the Geovid lighter and easier to handle without sacrificing strength or stability. Protecting the optics and electronics is a magnesium alloy chassis that is lightweight and durable. The body is wrapped in a protective rubber armor that provides a slip-resistant grip. To withstand the rigors of the trail, the optical tubes are nitrogen filled and O-ring sealed to be waterproof and submersible, and resistant to internal fogging when moving through extreme temperatures and environmental conditions. - Optical Performance
-
- Powerful 10x magnification allows for detailed observations of distant subjects
- 42mm objective lenses boost light gathering ability while ensuring the optical tubes remain thin for easier handling
- Perger-Porro prism optical design combines the rich depth of field of a Porro prism light path while maintaining the more compact straight-line optical tube of a roof prism, without the phase interference, to minimize light loss and internal diffraction
- HDC fully multi-coated system has abrasion-resistant and anti-reflection properties to protect exterior lens surfaces, and maximize light transmission with a natural neutral color fidelity and improved contrast
- Internal baffle system suppresses stray light for improved contrast
- Hydrophobic AquaDura coating on external optical surfaces allows dirt, dust, and fingerprints to be removed easily without leaving residue on the lens surfaces
- Ultra-wide 70° apparent angle of view helps to minimize the appearance of distracting hand-shake that is often associated with holding high-power optics, to present an immersive observational experience
- 374' field of view at 1000 yd
- Laser Rangefinder
-
- Class 1 eye-safe infrared laser
- Displays distance in yards or meters
- Range: 10 to 3000 yd (10 to 2742m)
- Accuracy, 10-550 yd:
|
Upload User Manual
Have you got an user manual for the Leica 10x42 Geovid HD-B 3000 Rangefinder Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica HD-B 3000 Specs | | | Prism Type | Perger Porro | | Magnification | 10x | | Objective Lens Diameter | 42mm | | Angle of View | 7.1°, actual | | Field of View | 374' @ 1000 yd / m @ 1000 m | | Minimum Focus Distance | 16.5' / 5.0 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 20 mm | | Interpupillary Adjustment | Not specified by manufacturer | | Dioptric Correction |
