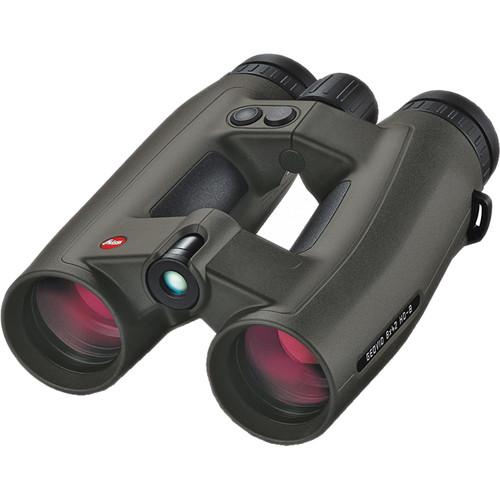

User Manual for Leica 10x42 Geovid HD-B Rangefinder Binocular Click to enlarge the picture
Contents of the user manual for the Leica 10x42 Geovid HD-B Rangefinder Binocular
- Product category: Laser Rangefinders Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Laser Rangefinders
|
User manual for the Leica 10x42 Geovid HD-B Rangefinder Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description This edition of the Leica 10x42 Geovid HD-B Rangefinder Binocular commemorates the 25th anniversary of the introduction of the Geovid line with a new forest green armoring. Capable of measuring out to 2200 yards, this binocular fuses the image quality of a fully multi-coated optical path with the functionality of a powerful rangefinder and an integrated ballistics computer.Leica's Advanced Ballistic Compensation (ABC) technology combines temperature and air pressure readings with rangefinder data, zeroed distance, and a user-defined ballistics curve to calculate ballistic compensation values. To maximize accuracy, the Geovid allows the shooter to input their rifle's zero distance and select a ballistics curve corresponding to the chambered round. The HD-B is pre-loaded with 12 ABC ballistics curves for common calibers and loads, and alternative ballistics curves can be calculated on the Leica website and stored to the Geovid's microSD card for use in the field. An in-view LED display allows the observer to view the calculated ABC values without taking their eyes off the visual scene.This Geovid binocular has a nitrogen-filled fogproof housing as well as fully multi-coated lenses that transmit bright and color faithful images. Leica's Perger-Porro prism design merges the benefits of roof and Porro styles, delivering a streamlined form factor without sacrificing depth of field or color fidelity. Exposed lens surfaces are finished with Leica's proprietary High Durable (HDC) and AquaDura lens coatings, which repel moisture and prevent dirt from adhering to the glass while offering abrasion-resistance. The ergonomic open bridge design reduces fatigue when viewing, and the five-position twist-up eyecups assure a comfortable experience even when wearing eyeglasses. Along with the standard Cordura field case, the 2017 edition includes a commemorative carry case. - Optical Performance
-
- 10x magnification
- 42mm objectives
- Perger-Porro prism optical design
- Fully multi-coated optics
- 343' field of view at 1000 yards
- Laser Rangefinder
-
- Displays distance in yards or meters
- Range: 10 to 2200 yd (41 to 2011m)
- Accuracy (550 yd or less): ±1 yd (1m)
- Accuracy (550-1100 yd): ±2 yd (2m)
- Accuracy (1100 yd +): ±10 yd (10m)
- Spot mode for range to single subject
- Scan mode for continuous measurement to multiple or moving targets
- Class 1 eye-safe infrared laser
- 2.7x1.0 MRAD beam divergence
- Displays range in yards or meters
- Measuring time: 0.3 sec, max
- Inclinometer measures the shooter's angle of inclination relative to the target
- Four-digit LED overlay with auto-brightness adjustment
- Simple and intuitive two-button right-hand user interface
- Advanced Ballistic Compensation
-
- Equivalent Horizontal Range mode uses angle and range to calculate an adjusted horizontal distance to target for improved accuracy
- Point of Aim mode displays the holdover compensation in centimeters
- Impact Point Correction mode calculates elevation adjustment in MOA / MRAD clicks
- Barometer and thermometer measure ambient atmospheric conditions
- Zeroing distance is programmable in 100 yd / m increments
- 12 pre-loaded ballistics curves corresponding to load caliber, type, weight
- Alternative ballistics curves can be calculated from Leica website, downloaded to a microSD card, then uploaded to binocular for use
- ABC values are derived from the set zeroing distance and ballistics curve, atmospheric readings, target's angle of inclination, and measured distance
- Use and Handling
-
- Open-bridge/dual-hinge design
- Center focus wheel with non-slip gripping ridges
- Twist-up rubber eyecups with four detented positions for use with or without eyewear
- 56-74mm interpupillary adjustment range
- ±4 dioptric correction
- Long 20mm eye relief
- Wide 4.2mm exit pupil
- Construction Details
-
- Open-bridge/dual-hinge design reduces weight without sacrificing strength and provides more gripping surface area
- Lightweight and durable magnesium alloy housing
- Slip-resistant and protective rubber armoring
- Nitrogen-filled water and fogproof housing
- Submersible to 16.5' (5m) depth
- AquaDura hydrophobic coating/HDC scratch-resistant coating on exposed lenses
- Weight: 2.1 lb (945g), with battery
UPC: 799429400736 In the Box Leica 10x42 Geovid HD-B Rangefinder Binocular (Edition 2017) Commemorative Carry Case Cordura Field Case Neoprene Carrying Strap 2 x Objective Caps 2 x Eyepiece Caps CR2 Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 10x42 Geovid HD-B Rangefinder Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica HD-B Specs | Prism Type | Perger-Porro | | Magnification | 10x | | Objective Lens Diameter | 42mm | | Angle of View | 6.5° (actual) | | Field of View | 343.4' @ 1000 yd / 114.0 m @ 1000 m | | Minimum Focus Distance | 16.4' / 5.0 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 20 mm | | Interpupillary Adjustment | 56.0 - 74.0 mm / 2.2 - 2.9" | | Dioptric Correction | ± 4 | | Focus Type | Center | | Dimensions | 7.0 x 4.9 x 2.8" / 17.8 x 12.5 x 7.0 cm | | Weight | 2.1 lb / 1.0 kg , including battery | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 10.6 x 8.4 x 6.8" |
