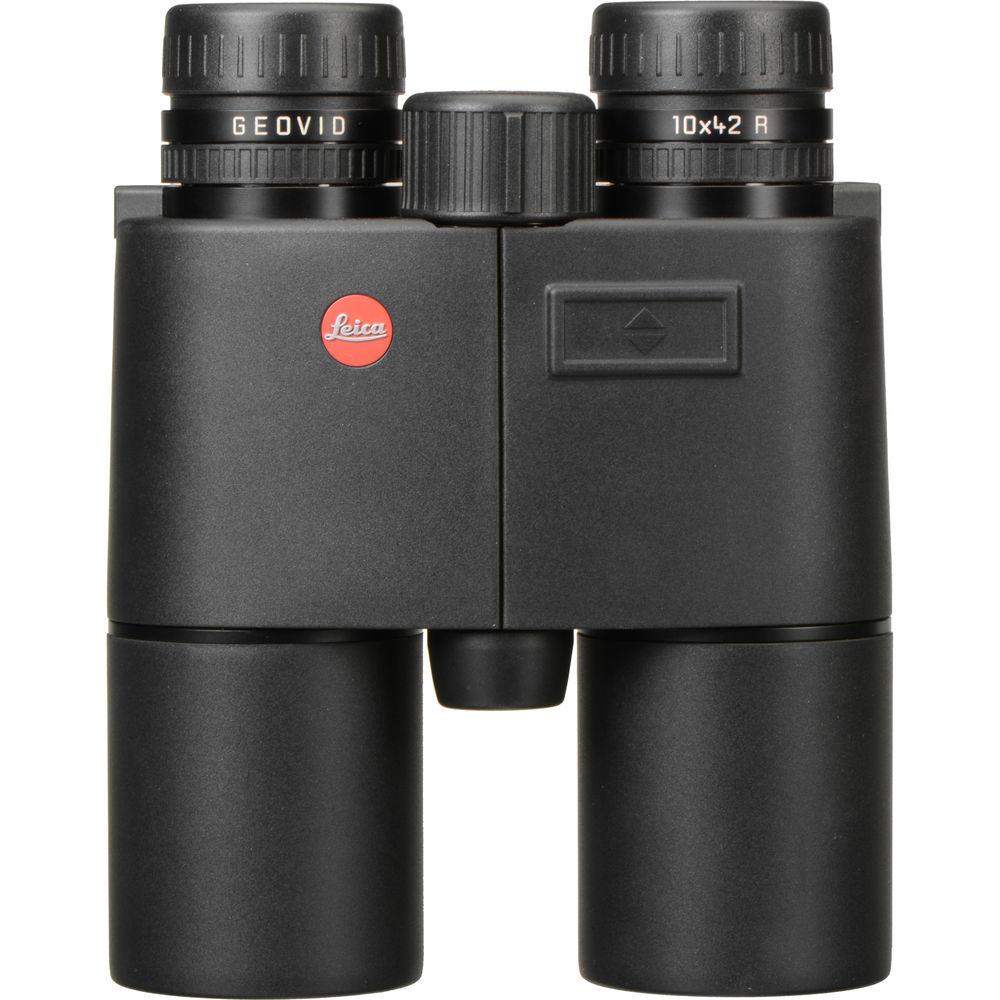

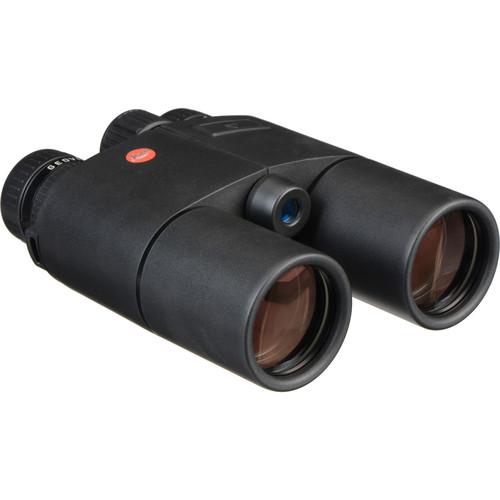

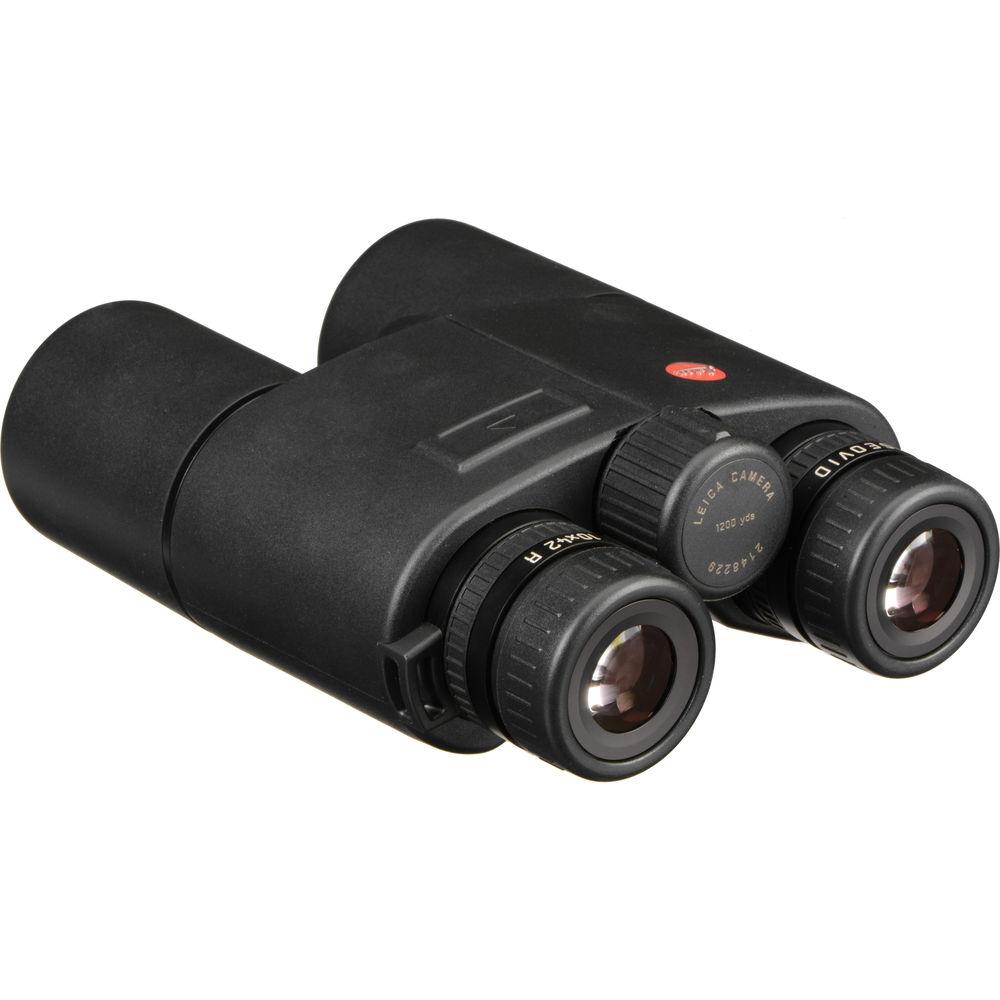

User Manual for Leica 10x42 Geovid R Binocular Rangefinder Click to enlarge the picture
Contents of the user manual for the Leica 10x42 Geovid R Binocular Rangefinder
- Product category: Laser Rangefinders Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Laser Rangefinders
 |
User manual for the Leica 10x42 Geovid R Binocular Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Leica Geovid R Binocular and Rangefinders Read More dvsvytqyvxffbuybsatcafzee Leica fuses the image quality of a fully multi-coated optical path with the practicality of a 1200-yard laser rangefinder and integrated ballistics calculator to create its 10x42 Geovid R Binocular/Rangefinder. Using an infrared laser rangefinder and a built-in inclinometer, the on-board computer adjusts the displayed range for more precise shot placement with an in-view four-character LED display that allows the observer to view the range without having to take their eyes off the subject. This version of the Geovid displays distances in yards and is controlled with a convenient single push button.Complementing its ranging qualities, the Geovid sports Leica's proprietary anti-reflection lens coatings to boost light transmission and improve color and contrast. The combination of a powerful 10x magnification and a wide 63° viewing angle provide an immersive observational experience while being highly functional for mid to long-range use. Protecting the optics and electronics is a lightweight and durable aluminum alloy chassis that is nitrogen-filled for fogproof and waterproof performance in extreme conditions. It is wrapped in a protective armor that also provides a slip-resistant grip, especially in cold and wet weather. - Optical Performance
-
- 10x magnification
- 42mm objectives
- Compact roof prisms
- HDC anti-refection fully multi-coated optics improve light transmission, color fidelity, and contrast
- 331 foot field of view at 1000 yards
- Wide 63° apparent viewing angle
- Laser Rangefinder
-
- Measures range in yards ONLY
- Simple one-button design
- FDA Class 1 eye-safe IR laser
- Range: 10 to 1200 yards
- Measuring accuracy: ±1 yard to 382 yards, ±2 yards to 766 yards, ±0.5% past 766 yards
- Spot mode: Use spot for stationary single measurement
- Scan mode: Use scan for continuous measurement to a moving or multiple targets
- Display: In-view LED with four characters that automatically adjusts to ambient light and displays measurements in yards only
- EHR ballistics function: Utilizes a built-in inclinometer to measure angle to target relative to use as welll as adjusts distance for more accurate hold-over/under
- Runs on one CR2 lithium battery: Approximately 2,000 measurements at 68°F (20°C)
- Use and Handling
-
- Closed-bridge configuration
- Two-position twist-up click-stop rubber eyecups for use with or without eyewear
- Large knurled center focus wheel
- Tripod mountable with optional adapter
- ±4 diopter correction range
- 4.2mm exit pupil
- Construction Details
-
- Lightweight aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Submersible to a depth of 16.5' (5m)
- Protective rubber armored exterior
- Weight: 33.3 oz, with battery
UPC: 799429404284 In the Box Leica 10x42 Geovid R Binocular/Rangefinder (Yards) Cordura Nylon Carrying Case Neoprene Carrying Strap 2 x Front Lens Caps 2 x Ocular Caps CR2 Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 10x42 Geovid R Binocular Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 40428 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.3° (Actual) | | Field of View | 331.0' @ 1000 yd / 109.9 m @ 1000 m | | Minimum Focus Distance | 18.4' / 5.6 m | | Exit Pupil Diameter | 4.2 mm | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 6.6 x 4.9 x 2.8" / 16.8 x 12.5 x 7.0 cm | | Weight | 33.33 oz / 945.0 g | | | | Package Weight | 4.04 lb | | Box Dimensions (LxWxH) | 10.65 x 8.55 x 6.7" |
