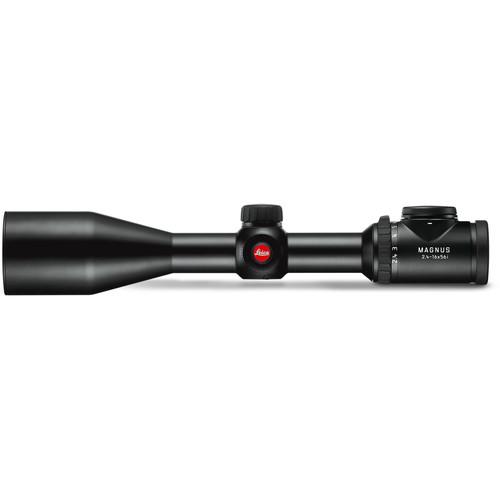

Product description Drawing on its tradition of optical craftsmanship, engineering excellence, and precision manufacturing, Leica delivers the 2.4-16x56 Magnus i Riflescope to empower you with uncompromising durability and safety, brilliant optical performance, and shooting precision. At the core of this riflescope is an expertly-designed optical system with precision optical elements that provide high-contrast and razor sharp images. To enhance optical performance and bring total throughput to 92%, the optical system is outfitted with fully multi-coated elements and a baffle system to reduce stray light. To protect lenses from moisture and ensure clear views during adverse weather conditions, the optical surfaces are enhanced with the Aqua-Dura hydrophobic coating that repels water droplets. With the wide 56mm objective, this riflescope can become a reliable partner for making that perfect shot. Even in the most challenging lighting conditions, it delivers bright, crisp, and clearly visible images. This riflescope offers all necessary convenient features like a generous eye relief and a diopter adjustment. Another central highlight of this scope is the L-Ballistic Reticle. Inspired by the German # 4 style, the reticle offers three medium posts, a thin crosshair with ballistic markings, and an illuminated ultra-fine yet well-defined, brilliant red center dot. The dot's brightness offers 60 settings and can be adjusted to accommodate your preferences and any lighting conditions. The reticle also offers a parallax-free performance at 100 yards. To save battery power, the auto-off function is activated when you tilt the rifle 75° or after 3 minutes of inactivity. To make the most of what the reticle has to offer, this riflescope features a special BDC turret that gives you a rapid holdover adjustment capability of 9.3 mil per turn with 0.1 mil increments. It offers a simple and precise targeting at ranges up to 1000 yards with almost any cartridge. The turret is resettable, lockable, and features a zero stop.
To ensure lasting durability for years of service, the housing is made from high-quality aluminum alloy and features a 30mm maintube with a 1.5mm thick wall for exceptional durability and safety. Among other highlights are waterproof and fogproof performance, knobs and rings that are knurled and easy-to-operate in gloves, a slim eyepiece, and a redesigned-for-efficiency battery compartment. The magnification ring also features a low-profile lever, just in case you need to bump up that zoom factor instantly. - Optical Performance
-
- Fully multi-coated optics
- 56mm objective delivers bright images in low-light
- Total system transmission is greater than 92%
- High-contrast and true-color images
- AquaDura water-repellent lens coating
- BDC Elevation Turret
-
- Allows for rapid reticle holdover adjustment
- Offers simple and precise targeting over long ranges
- Zero stop, zero resettable, single turn, and locking
- 9.3 mil per turn with 0.1 mil increments
- Allows compensating out to 1000 yd with any cartridge
- Use and Handling
-
- 1cm impact point correction
- 150cm elevation range
- 140cm windage range
- Knurled windage and elevation adjustment dials
- Illumination control has safety feature to prevent accidental on/off
- Eye relief: 3.5"
- Exit Pupil: 3.5 - 12.4 mm
- Illuminated L-Ballistic Reticle
-
- 2nd focal plane
- German #4-inspired style
- Ballistic marking below the red dot
- Three medium, well-defined posts and a thin crosshair
- Sharp and brilliant red dot with 60-step day/night illumination
- Auto-off when tilted ± 75° or after 3 minutes
- Construction Details
-
- 30mm maintube diameter
- 1.5mm-thick maintube wall
- High-quality aluminum housing
- Matte black anodized finish
- Designed for durability and safety
- Re-zeroing does not require tools
- Slim eyepiece design
- Waterproof, submersible to 13.1'
- Nitrogen-filled, fogproof
- Shock-resistant
In the Box Leica 2.4-16x56 Magnus i Riflescope with BDC Elevation Turret (Illuminated L-Ballistic Reticle, Matte Black) - 2 x Lens Caps
- CR-2032 Battery
- Cleaning Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 2.4-16x56 Magnus i Riflescope with BDC Elevation Turret in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 54114 Specs | | | Magnification | 2.4 to 16x | | Objective Lens Diameter | 56 mm | | Field of View | 2.4x: 51' @ 100 yd / 17 m @ 100 m
16x: 7.8' @ 100 yd / 2.6 m @ 100 m | | Exit Pupil Diameter | 2.4x: 3.5 mm
16x: 12.4 mm | | Eye Relief | 3.5" / 88.9 mm | | Diopter Correction | -4.0 to +3.0 | | | | Reticle Type | L-Ballistic Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Filter Thread | M58 x 0.75 | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.2" / 36.1 cm | | Weight | 27.7 oz / 785.3 g |
