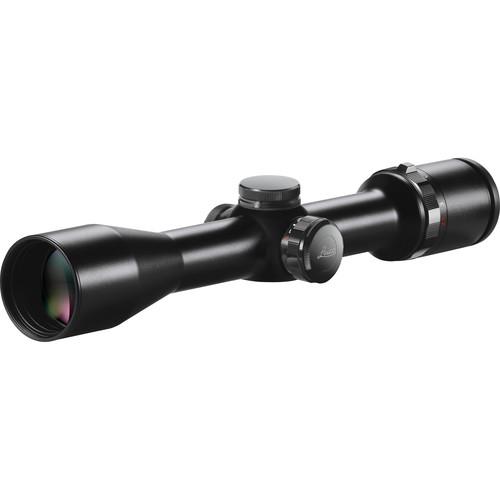

User Manual for Leica 2.5-10x42 Visus i LW Riflescope Click to enlarge the picture
Contents of the user manual for the Leica 2.5-10x42 Visus i LW Riflescope
- Product category: Riflescopes Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Riflescopes
 |
User manual for the Leica 2.5-10x42 Visus i LW Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Drawing on Leica's Visus i Leitz Wetzlar (LW) iconic products, the 2.5-10x42 Visus i LW Riflescope shares their timeless design and impeccable optical and mechanical performance. The optics are fully multi-coated and crafted from high quality glass to produce images of unparalleled contrast, brightness, and vivid true color even in low-light conditions. To uphold the ultimate level of performance in adverse weather conditions, the lenses are also enhanced with moisture-repellent AquaDura lens coating. Despite its minimalistic appearance, this riflescope offers all necessary convenient features like a generous eye relief and a diopter adjustment.
Specifically designed for big game like wild boar, the L-4a reticle is located in the second focal plane and will remain the same in size as you change the zoom factor on this scope. Its heavier than average posts and a bright illuminated red center dot are clearly visible against dark targets in low light conditions.
The aluminum housing features a 30mm maintube and offers a waterproof, fogproof, and shock-resistant performance. Its hard anodized finish is sandblasted to increase ruggedness, scratch and wear-resistance. The letters and marks are engraved with a stylus and painted by hand. Aside from the rubber eyecup, all plastic and rubber parts have been replaced by superior, high-quality metal components. Combining careful craftsmanship and manufacturing processes, this riflescope is designed to become a reliable partner for years of service. - Reticle
-
- L-4a reticle
- 2nd focal plane
- Illuminated center dot
- Continuous illumination brightness
- Auto-Off when tilted ± 70° or after 3 minutes
- Crosshair subtends 0.6cm at 100 meters
- Gate between horizontal posts spans 140cm at 100 meters
- Optical Performance
-
- 2.5-10x magnification
- 42mm objective
- Transmission greater than 90%
- High contrast and true color images
- AquaDura water-repellent lens coating
- 3.9" eye relief
- Use and Handling
-
- 1cm impact point correction
- 180cm windage and elevation range
- Construction Details
-
- 30mm maintube diameter
- Aluminum housing
- Sandblasted, hard anodized finish
- Stylus-engraved and hand painted markings
- Knurled windage and elevation adjustment dials
- Waterproof and submersible to 13.1'
- Nitrogen-filled fogproof
- Shock-Resistant
In the Box Leica 2.5-10x42 Visus i LW Riflescope (L-4a Illuminated Reticle, Matte) - Objective Lens Cover
- Eyepiece Lens Cover
- Lens Tissue
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 2.5-10x42 Visus i LW Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 56104 Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 42 mm | | Field of View | 2.5x: 45.9' @ 100 yd / 14.5 m @ 100 m
10x: 12.8' @ 100 yd / 3.9 m @ 100 m | | Exit Pupil Diameter | 2.5x: 14 mm
10x: 4.2 mm | | Eye Relief | 3.9" / 100 mm | | Diopter Correction | -4.0 to +3.0 | | | | Reticle Type | L-4a Reticle (Second Focal Plane) | | | | Filter Thread | M46 x 0.75 | | Parallax Correction | Yes, 109.4 yd / 100 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.8" / 319 mm | | Weight | 18.3 oz / 518.8 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
