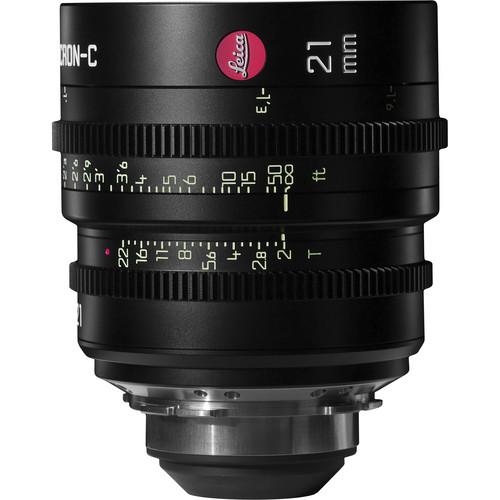

User Manual for Leica 21mm T2.0 Summicron-C Lens Click to enlarge the picture
Contents of the user manual for the Leica 21mm T2.0 Summicron-C Lens
- Product category: Digital Cine Lenses Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Digital Cine Lenses
|
User manual for the Leica 21mm T2.0 Summicron-C Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More Designed for the digital cinema market, the Leica Summicron-C 21mm Lens (C for cinema) features a stainless steel PL mount and provides a smaller, lighter, albeit slower option to the renowned Summilux-C series of lenses. The 21mm focal length is less common to the Super 35 format; however, it provides a smaller jump in focal lengths when choosing between the 25mm and the 18mm, providing you with more creative wide-angle options. The small size of the lens makes it suitable not only for regular production but also for stabilized rigs, aerial cinematography, and stereoscopic 3D capture. Projecting a useable image circle of 36mm in diameter, it is compatible with a variety of cameras that have sensors that are slightly larger than Super 35. The T2.0 maximum aperture is consistent among the range, so there is no concern about exposure variations when cutting between Summicron-C lenses. Each lens incorporates geared focus and iris control rings, which share the same position, so swapping lenses can be done without having to adjust your follow focus or lens control system.
The lens features an internal focus design, which means a non-rotating front perfect for clip-on matte boxes. A generous number of focus marks are distributed along the dual focus scales, and the 300° of focus rotation provides for accurate focus pulling. The 95mm diameter front is standard across all Summicron-C lenses, and, except for the 15mm and 135mm, they feature similar weight and the same length. - Ready for the Future
- The Summicron-C lenses have an image circle of 36mm, which is more than generous enough to cover the sensors of many popular cameras, including the 6K Red Dragon Sensor, without vignetting. For reference, the image circle requirement for Super 35 is approximately 28mm.
- The lens is telecentric, which helps reduce illumination fall-off from light hitting the sensor at a sever angle outside of the image circle.
- High Optical Performance
- The modern lens design as well as the cine manufacturing process and tight tolerances ensure low distortion, high resolution and excellent color rendition. Although made using spherical elements only, the Summicron-C lenses provide a sharp image with a naturalistic Bokeh.
- The 300° of focus rotation provide for extremely accurate focus marks and focus pulls.
- Consistent front diameter and shared focus and iris ring position from lens-to-lens in the series allow for faster lens changes requiring less adjustment of matte boxes and lens accessories.
In the Box Leica 21mm T2.0 Summicron-C Lens (PL Mount, Marked in Feet) Front Lens Cap Rear Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 21mm T2.0 Summicron-C Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica Summicron-C 21mm T2.0 (ft) Specs | Focal Length | 21mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 36.0 mm | | Maximum T-Stop | T2.0 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 1.0' / 0.3 m | | Front Diameter | 95 mm | | Length | 4.0" / 101.6 mm | | Weight | 2.9 lb / 1.3 kg |
