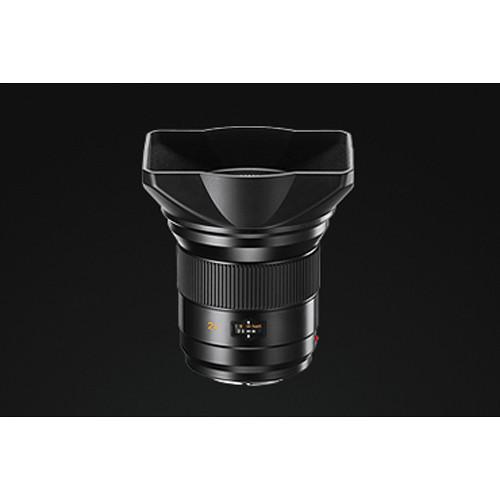

User Manual for Leica 24mm f 3.5 Super-Elmar-S ASPH. Lens Click to enlarge the picture
Contents of the user manual for the Leica 24mm f 3.5 Super-Elmar-S ASPH.
- Product category: Medium Format Lenses Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Medium Format Lenses
 |
User manual for the Leica 24mm f 3.5 Super-Elmar-S ASPH. contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

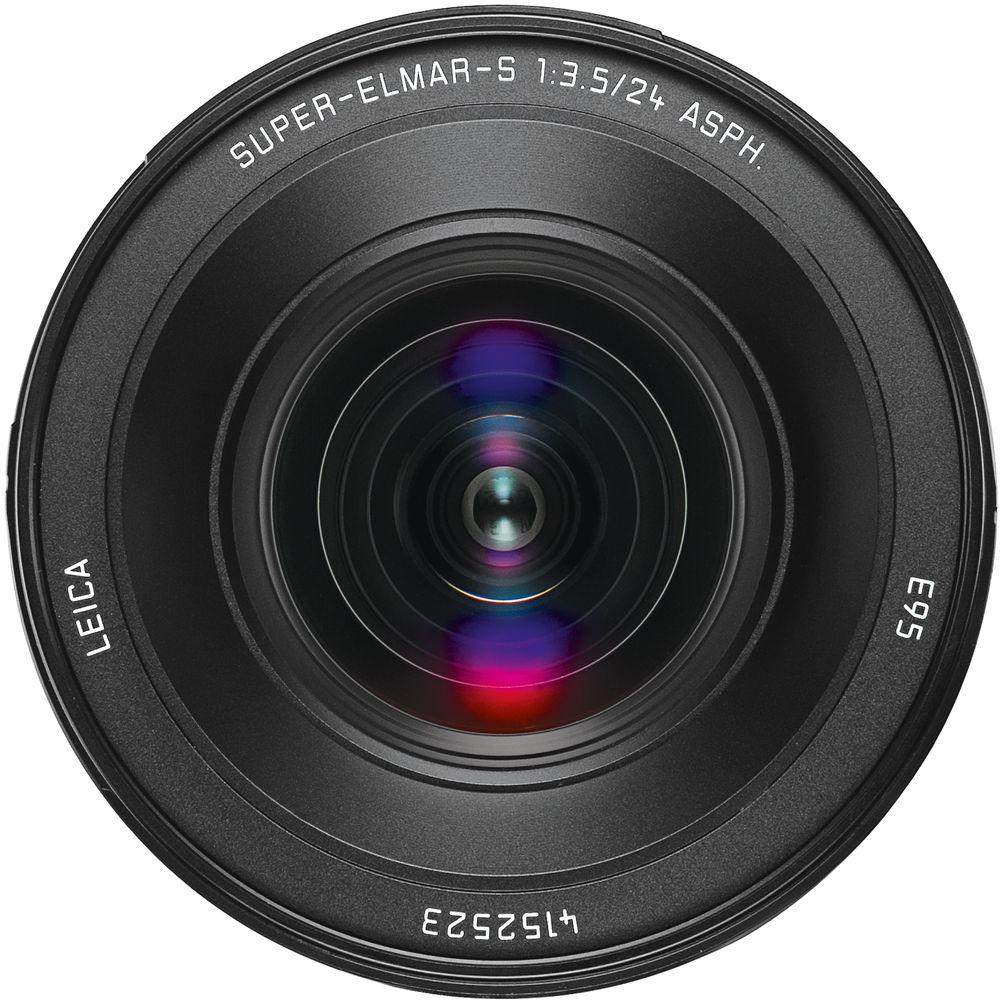

Product description The 24mm f/3.5 Super-Elmar-S ASPH. Lens from Leica is a wide-angle medium format lens equivalent to 19mm in the 35mm format. It is one of the widest medium format lenses available. Its 96.6º diagonal angle of view emphasizes perspective and brings with it creative possibilities, especially in architecture and interior photography. With minimal distortion, it delivers images with strong contrast and high resolution at all apertures.
The optical design comprises 12 elements in 10 groups. Five elements are made from glass with anomalous partial dispersion, three of which are low-dispersion fluoride elements which correct chromatic aberrations. Two further aspherical elements, and the aspherical surface of the front element, minimize monochromatic aberrations. Only the middle, three-element group is used for focusing, whereby one of its lenses moves independently as a floating element.
It is a rugged lens, sealed against dust and water splash and extremely durable and reliable. - Ultra wide-angle lens with an extreme 96.6º angle of view
- Maximum contrast reproduction and resolution at all apertures over the entire distance range providing crisp images
- Accurate Color Reproduction
- Excellent stray light suppression for high-contrast images, even in backlight situations
- Durable lens body sealed against dust and water splash
In the Box Leica 24mm f/3.5 Super-Elmar-S ASPH. Lens Front Cap S E95 for 95mm S-Series Lenses 16020 S-Rear Lens Cap Reversible Lens Hood for Select Leica S-system Lenses Lens Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 24mm f 3.5 Super-Elmar-S ASPH. Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 11054 Specs | Focal Length | 24 mm | | Aperture | Maximum: f/3.5
Minimum: f/22 | | Camera Mount | Leica S bayonet | | Angle of View @ Infinity | 96.6° | | Minimum Focus Distance | 15.75" / 0.4 m | | Optical Design | 12 Elements in 10 Groups | | Maximum Reproduction Ratio | 1:11.3 | | Distance Scale | Yes | | Autofocus | No | | Filter Thread | Front: 95 mm | | Dimensions | Approx. 3.98 x 4.41" (101 x 112 mm) | | Weight | 2.77 lb / 1260 g | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 9.5 x 6.6 x 6.6" |
