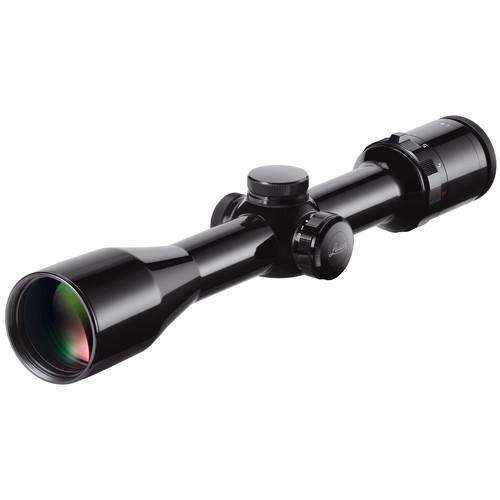

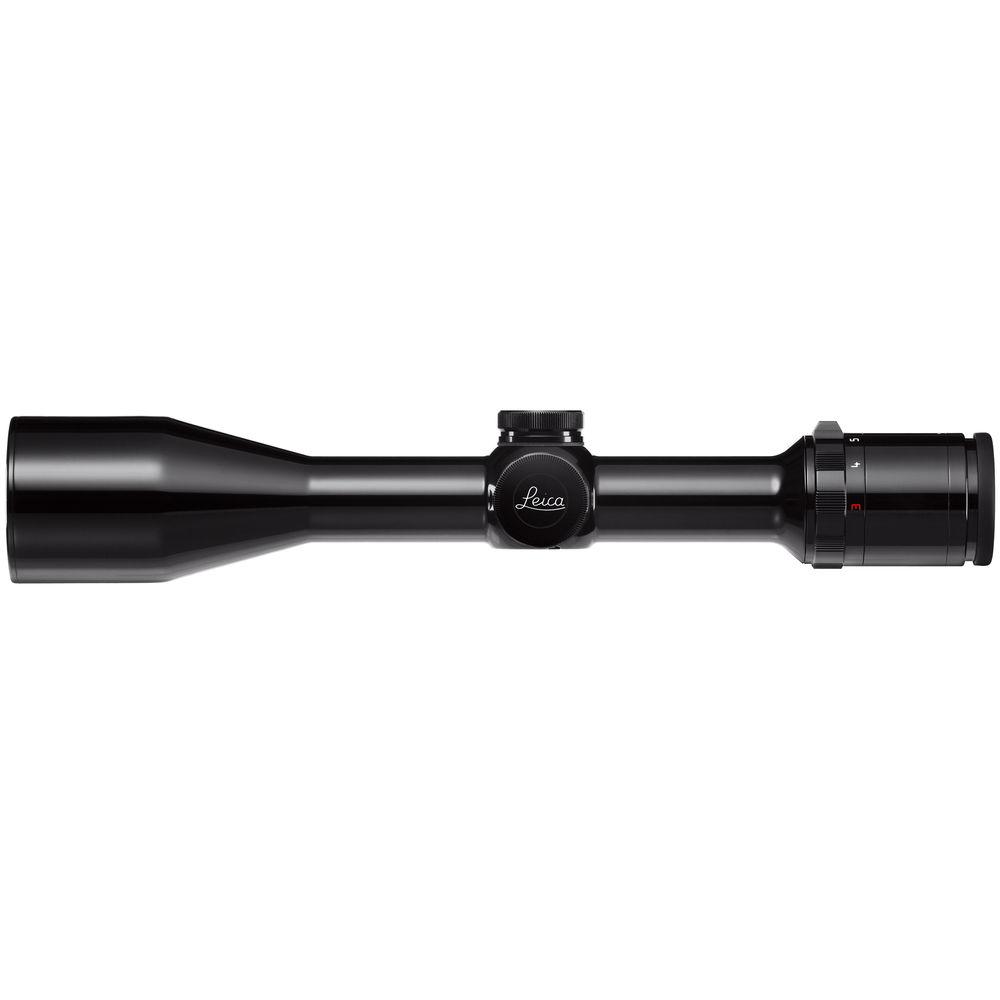

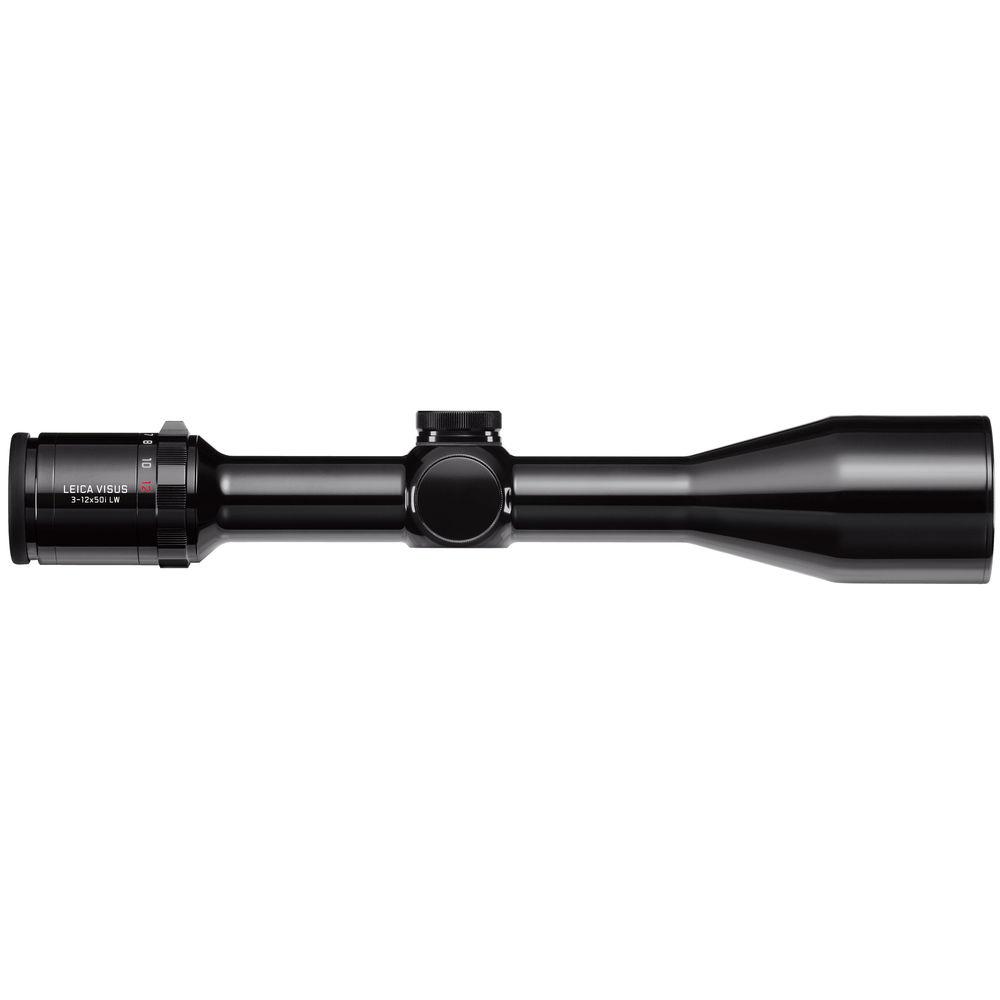

Product description Drawing on Leica's Visus i Leitz Wetzlar (LW) iconic products, the 3-12x50 Visus i LW Riflescope shares their timeless design and impeccable optical and mechanical performance. The fully multi-coated optics are crafted from high quality glass to produce images of unparalleled contrast, brightness, and vivid true color even in low-light conditions. To uphold the ultimate level of performance in adverse weather conditions, the lenses are also enhanced with moisture-repellent AquaDura lens coating.
Specifically designed for big game like wild boar, the L-4a reticle is located in the second focal plane and will remain the same in size as you change the zoom factor on this scope. Its heavier than average posts and bright, illuminated red center dot are clearly visible against dark targets in low-light conditions.
The aluminum housing features a 30mm maintube and offers a waterproof, fogproof, and shock-resistant performance. Its hard anodized finish is polished for a shiny gloss black appearance. The letters and marks are engraved with a stylus and painted by hand. Aside from the rubber eyecup, all plastic and rubber parts have been replaced by superior, high-quality metal components. Combining careful craftsmanship and manufacturing processes, this riflescope is designed to become a reliable partner for years of service. - Reticle
-
- L-4a reticle
- 2nd focal plane
- Illuminated center dot
- Continuous illumination brightness
- Auto-off when tilted ± 70° or after 3 minutes
- Crosshair subtends 0.6cm at 100 meters
- Gate between horizontal posts spans 140cm at 100 meters
- Optical Performance
-
- 3 - 12x magnification
- 50mm objective
- Transmission greater than 90%
- High contrast and true color images
- AquaDura water-repellent lens coating
- Use and Handling
-
- 1cm impact point correction
- 120cm windage and elevation range
- Exit pupil: 14.9 - 4.1mm
- Eye relief: 3.9"
- Construction Details
-
- 30mm maintube diameter
- Aluminum housing
- Polished gloss black finish
- Stylus-engraved and hand painted markings
- Knurled windage and elevation adjustment dials
- Waterproof and submersible to 13.1'
- Nitrogen-filled fogproof
- Shock-Resistant
In the Box Leica 3-12x50 Visus i LW Riflescope (L-4a Illuminated Reticle, Polished Gloss Black) - Objective Lens Cover
- Eyepiece Lens Cover
- Lens Tissue
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 3-12x50 Visus i LW Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 56110 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 36' @ 100 yd / 11.5 m @ 100 m
12x: 10.5' @ 100 yd / 3.2 m @ 100 m | | Exit Pupil Diameter | 3x: 14.9 mm
12x: 4.1 mm | | Eye Relief | 3.9" / 100 mm | | Diopter Correction | -4.0 to +3.0 | | | | Reticle Type | L-4a Reticle (Second Focal Plane) | | | | Filter Thread | M52 x 0.75 | | Parallax Correction | Yes, 109.4 yd / 100 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.4" / 34.1 cm | | Weight | 21.9 oz / 620.9 g |
