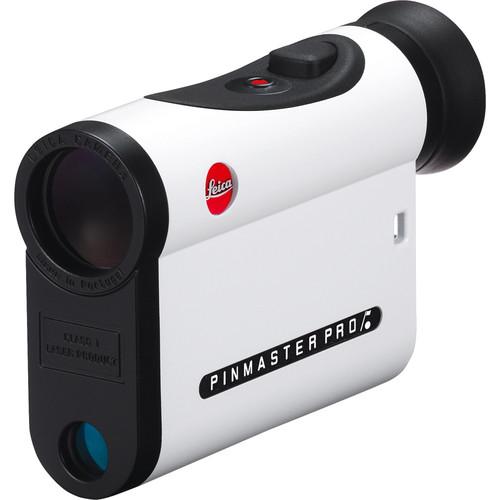

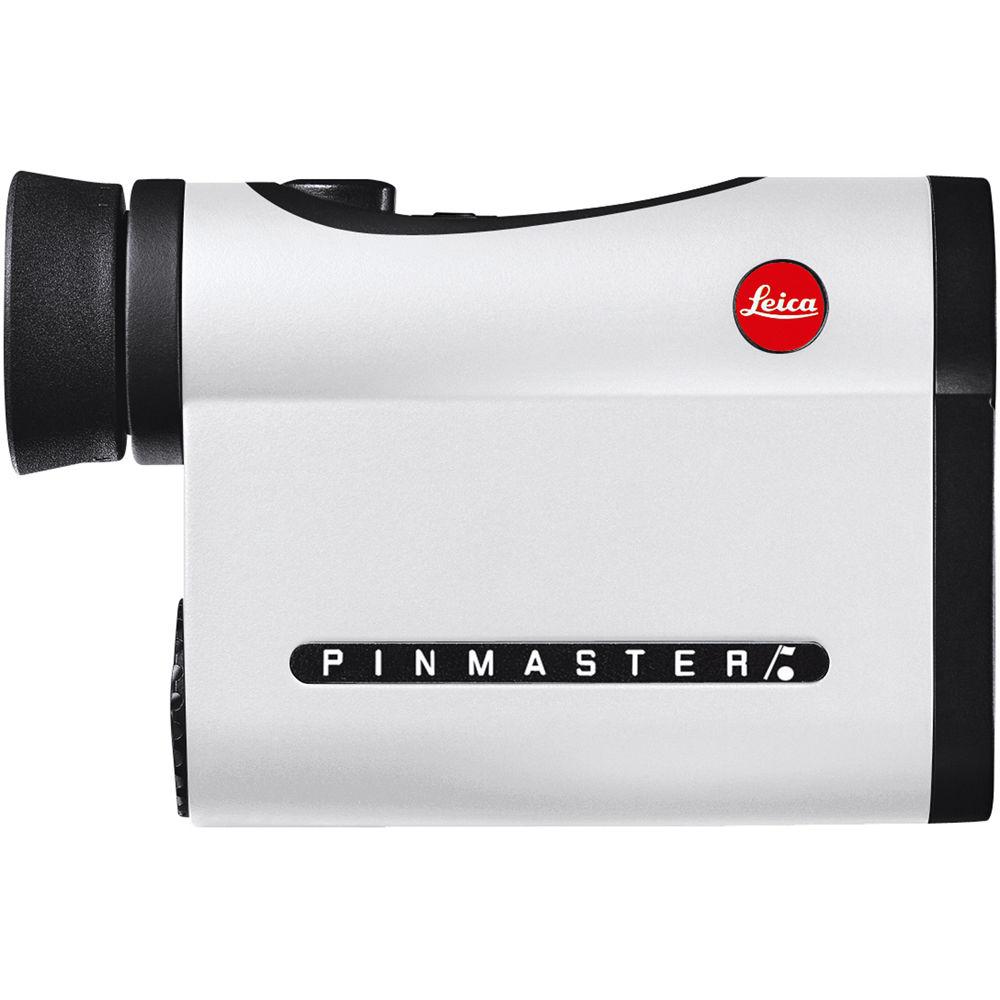

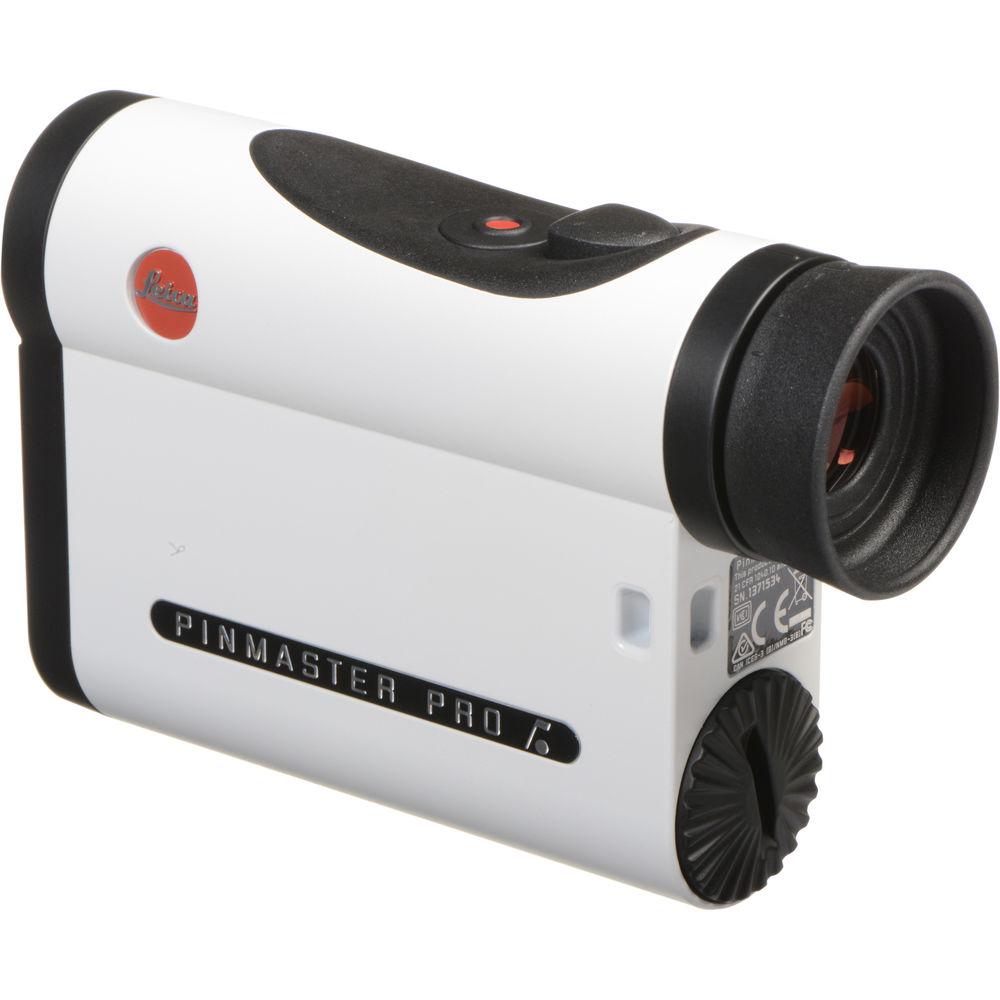

User Manual for Leica 7x24 Pinmaster II Pro Golf Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Leica 7x24 Pinmaster II Pro Golf
- Product category: Laser Rangefinders Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Laser Rangefinders
 |
User manual for the Leica 7x24 Pinmaster II Pro Golf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Beneath the snappy white and black housing of Leica's 7x24 Pinmaster II Pro Golf Laser Rangefinder is a powerful ranging computer that can give you a critical edge on the links. It ensures that when you go to measure your distances, you're targeting the correct spot, with terrain factored in. Multiple lens and prism coatings ensure clear and bright high-contrast images with true color representation across the generous field of view.It all starts with a useful and versatile 7x24 monocular that allows you to see the lay of the land and pick out the path you want to play with confidence. The brain of the system is the combination of rangefinder and inclinometer. The IR laser measures distances up to 825 yards in 0.3 seconds with two different modes: spot or scan. The inclinometer measures the relative angle from you to your target and, using the specific trajectory of a golf ball, displays an adjusted distance for you to shoot for. This system, the Angle Compensated Distance (ACD), can be turned off for tournament or handicap rounds. Complementing the ACD system is Leica's First-Target Logic. This is a critical piece of technology that displays the distance to the closest target in the field of view so you can be sure that you're measuring the distance to the pin, and not the trees behind it. As with ACD, this feature can be turned off if prohibited by play regulations.To withstand the rigors of weekends spent outside, the Pinmaster II's housing is crafted from a rugged carbon fiber reinforced plastic over a lightweight aluminum-alloy chassis. The entire device is sealed and waterproof to a depth of 3.3', and since it weighs in at just 7.8 ounces, it can be easily carried through 18 holes. A wide exit pupil and long eye-relief, combined with the fold-down rubber eyecups, ensures that you'll be able to comfortably use it all day. - Optical Performance
-
- 7x magnification
- 24mm objective lens
- Compact roof prism optical path
- P40 phase-correcting prism coatings for improved contrast and color fidelity
- Hydrophobic AquaDura coatings on external optical surfaces allows dirt, dust, and fingerprints to be removed easily
- High Durable Coating (HDC) helps to resist scratching or marring of the optical surfaces
- 347' field of view at 1000 yards
- Laser Rangefinder
-
- Class 1 eye-safe IR laser
- Measuring time: 0.3 seconds
- Beam divergence approximately 0.5 x 2.5 mrad
- Displays distances in yards or meters
- Measuring modes:
- Single reading: Distance to a stationary target
- Scanning mode: Track a moving target or scan scene with updated measurements
- Metering range: 10-825 yards
- Accuracy:
- ±1 yard from 10-400 yards
- ±2 yards from 400-825 yards
- ±0.5% over 825 yd
- Runs on one included C2R lithium battery
- Technology
-
- Angle Compensated Distance:
- Uses internal inclinometer to calculate uphill or downhill angle
- Uses distance and angle, plus golf-ball trajectory to display adjusted distance
- Displays adjusted image in conjunction with linear distance
- Leica First-Target Logic
- Indicates distance to closest target, ensuring you meter the pin and not the trees in the distance
- Allows for the deactivation of the angle-corrected distance for use in handicap rounds
- Use and Handling
-
- ±3.5 dioptric correction
- Long 15mm eye relief
- Comfortable 3.4mm exit pupil
- Fold-down rubber eyecups for use with or without eyewear
- Intuitive two-button controls
- Display:
- Four-character in-view red LED
- Bright and easy to see in any light
- Auto-adjust brightness based on ambient light
- Low battery indicator
- Construction Details
-
- Lightweight aluminum alloy chassis
- Strong and durable carbon-fiber reinforced plastic housing
- IPX7-rated, submersible to 3.3' for up to 30 minutes
- Weight: 7.8 oz, with battery
In the Box Leica 7x24 Pinmaster II Pro Golf Laser Rangefinder Cordura Carry Case Carrying Cord CR2 Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 7x24 Pinmaster II Pro Golf Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 40539 Specs | Prism Type | Roof | | Magnification | 7x | | Objective Lens Diameter | 24mm | | Angle of View | 6.6°, actual | | Field of View | 347.0' @ 1000 yd / 115.0 m @ 1000 m | | Laser Type | EN/FDA Class 1 eye-safe invisible laser
Beam divergence: 0.5 x 2.5 mrad, approx. | | Metering Range/Accuracy | Range:
10 to 825 yd / 10 to 750 mAccuracy:
±1 yd: 10 - 400 yd / ±1 m: 10 - 366 m
±2 yd to 400 - 825 yd / ±2 m: 366 - 750 m
±0.5% over 825 yd / 750 m | | Exit Pupil Diameter | 3.4 mm | | Eye Relief | 15 mm | | Dioptric Correction | ±3.5 | | Weatherproofing | IPX7-rated, submersible to 3.3' / 1.0 m, for 30 minutes | | Tripod Socket | No | | Power Source | 1 x C2R lithium | | Dimensions | 4.5 x 2.25 x 1.25" / 11.3 x 7.5 x 3.4 cm | | Weight | 7.8 oz / 220.0 g, with battery/without strap | | | | Package Weight | 0.92 lb | | Box Dimensions (LxWxH) | 6.05 x 4.2 x 3.3" |
