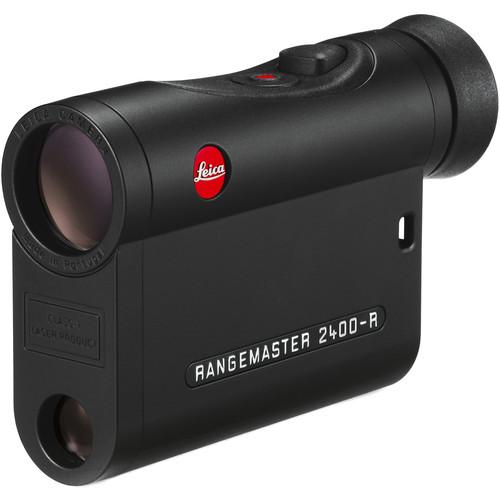

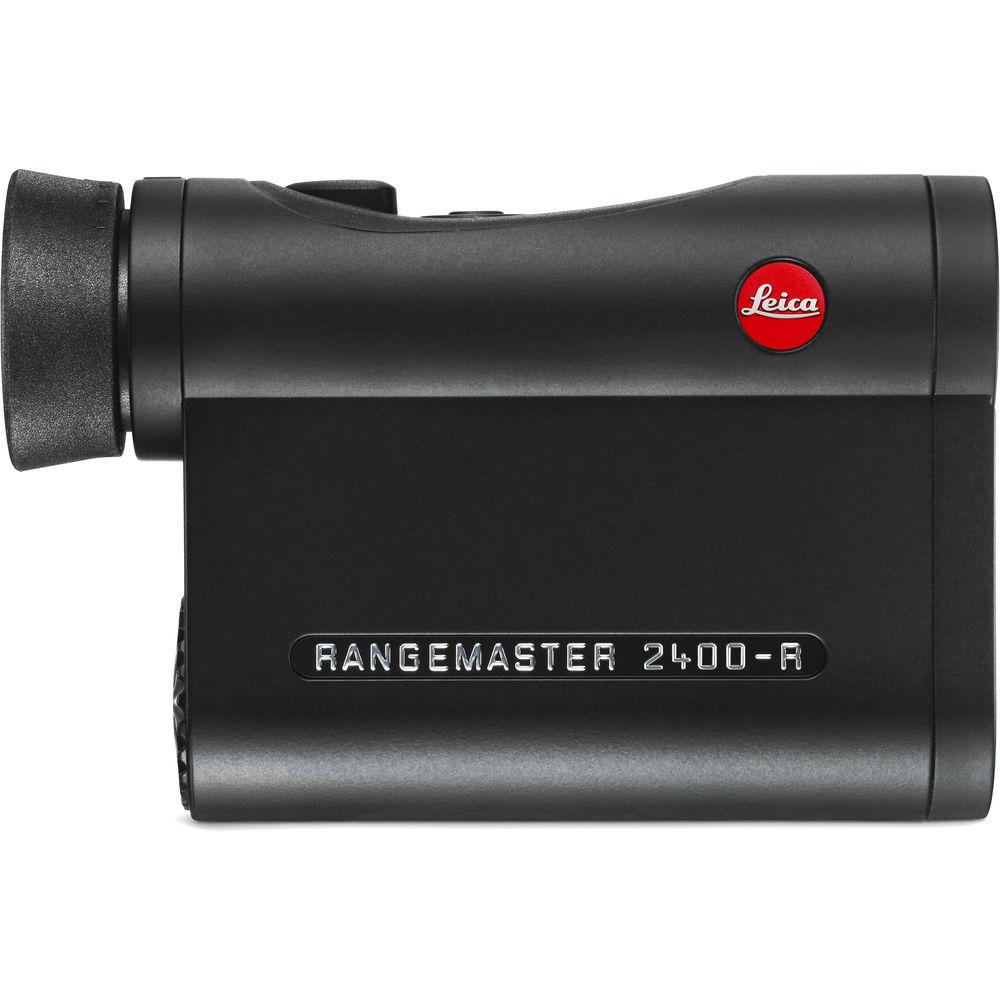

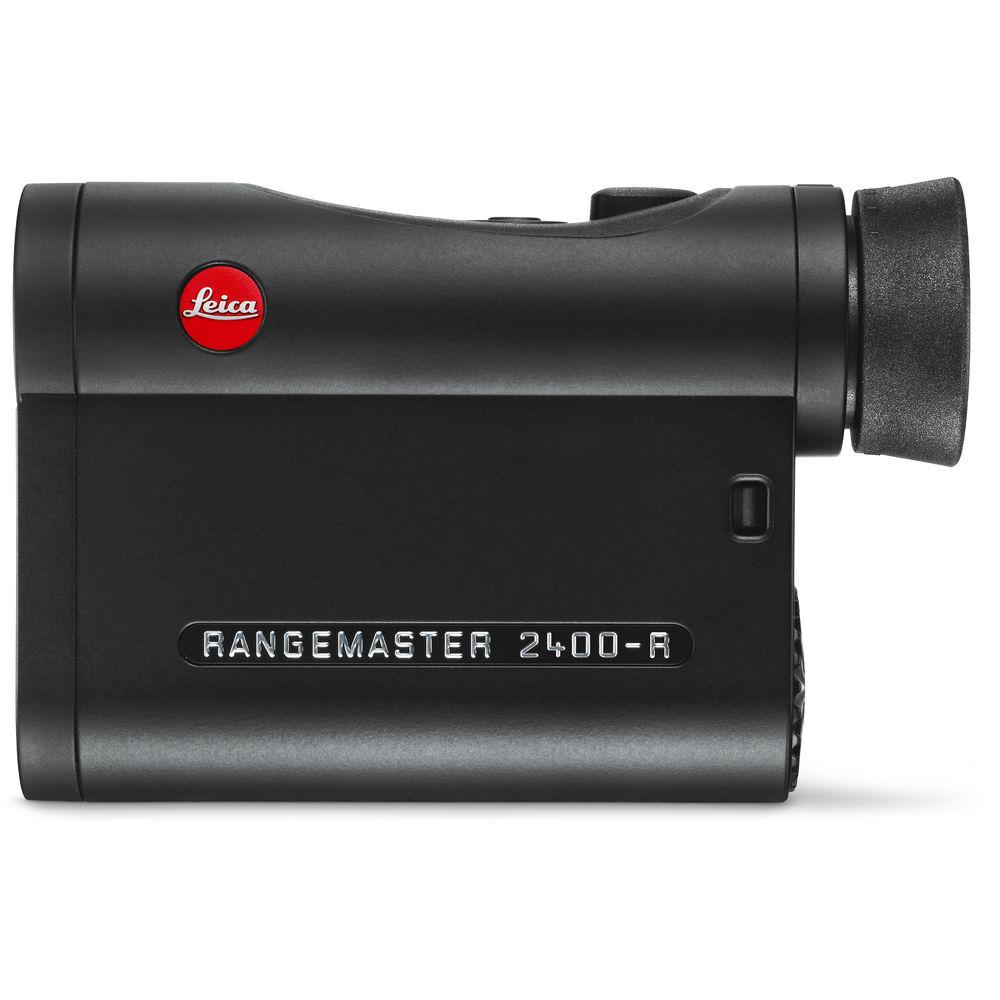

User Manual for Leica 7x24 Rangemaster CRF 2400-R Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Leica 7x24 Rangemaster CRF 2400-R Laser
- Product category: Laser Rangefinders Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Laser Rangefinders
 |
User manual for the Leica 7x24 Rangemaster CRF 2400-R Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Measure targets more than a mile away with one-yard accuracy, scan the field quickly, and see readings in units as small as 0.1 yards for close-range work with the powerful and versatile Leica 7x24 Rangemaster CRF 2400-R Laser Rangefinder. Archers will appreciate the precision of decimal readings under 200 yards, while long-distance shooters will benefit from the maximum 2400-yard range and a scan mode that takes a new measurement every half second. Complementing the rangefinder is an integrated inclinometer that measures the relative upward or downward angle to targets up to 1200 yards and applies Leica's Equivalent Horizontal Range (EHR) algorithm so you can compensate correctly for the angle and greatly improve your accuracy.A simple one-button interface provides critical ease of use and the LED display clearly shows the ranging information in your line-of-sight in an uncluttered layout. An ambient light sensor automatically adjusts the display brightness so you'll always be able to clearly see the information without overloading your vision. Designed for durability, the housing is made of a lightweight and durable carbon-fiber-reinforced plastic. Weighing in at just 6.5 ounces, including the CR2 battery, the Rangemaster CRF will be a valuable addition to your kit. - Optical Performance
-
- 7x magnification
- 24mm objective lens
- Compact roof prism
- P40 phase-correction prism coating improves color rendition and contrast
- AquaDura lens coatings repel water, oil, and grime to keep lens clear and clean
- 347' field of view at 1000 yards
- Long 15mm eye relief
- Comfortable 3.4mm exit pupil
- Laser Rangefinder
-
- Measures in yards or meters
- Eye-safe IR laser
- Metering range from 10 to 2400 yards
- Readings in decimals down to 0.1 yards, up to a measuring distance of 200 yards, provide precise ranges for archers
- Metering accuracy of ±1 yard to 400 yards; ±2 yard from 400-800 yards; ±0.5% beyond 800 yards
- Spot and continuous scan mode
- Fast scan mode takes measurement every 0.5 seconds
- Equivalent Horizontal Range (EHR)
- Integrated inclinometer measures relative angle to target
- EHR algorithm uses distance and angle to calculate an adjusted range for more accurate shot placement
- Calculates range, including EHR, in 0.3 seconds
- Runs on one included CR2 battery
- Use and Handling
-
- Convenient single-button activation and operation
- In-view LED display
- Ambient light meter with automatic brightness adjustment
- ±3.5 dioptric correction
- Fold-down rubber eyecup for comfortable use with or without eyewear
- Construction Details
-
- Carbon-fiber reinforced plastic housing
- Ergonomically designed for comfortable one-handed use
- Submersible to 3.3'
- Weight: 6.5 ounces with battery
UPC: 799429405465 In the Box Leica 7x24 Rangemaster CRF 2400-R Laser Rangefinder - Carrying Strap
- Cordura Nylon Case
- CR2 Battery
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 7x24 Rangemaster CRF 2400-R Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica CRF 2400-R Specs | Prism Type | Roof | | Magnification | 7x | | Objective Lens Diameter | 24x | | Field of View | 347' @ 1000 yd / 115 m @ 1000 m | | Laser Type | Class 1 eye-safe IR | | Metering Range | 10 - 2400 yd / 10 - 2195 m | | Metering Accuracy | ±1 yd/m to 400 yd / 366 m
±2 yd/m to 800 yd / 732 m
±0.5% beyond 800 yd / 732 m | | Exit Pupil Diameter | 3.4 mm | | Eye Relief | 15 mm | | Weatherproofing | Submersible to 3.3' / 1.0 m | | Battery | 1 x CR2 | | Dimensions | 4.50 x 2.3 x 1.3" / 11.3 x 7.5 x 3.4 cm | | Weight | 6.5 oz / 185 g, with battery | | | | Package Weight | 1.115 lb | | Box Dimensions (LxWxH) | 6.15 x 4.35 x 3.5" |
