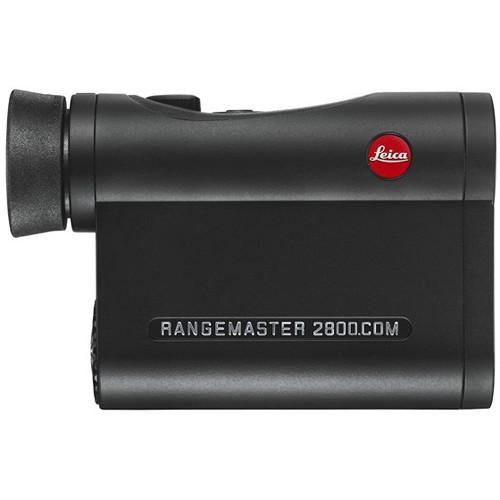

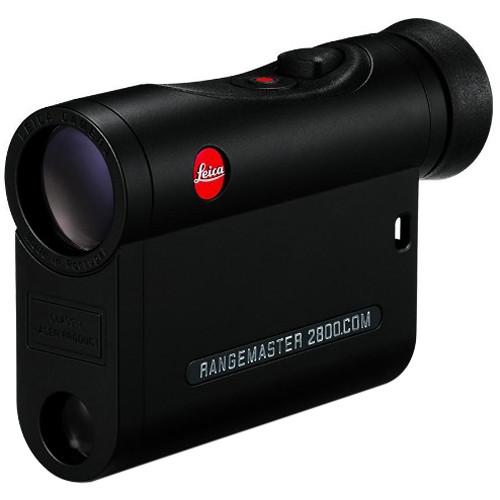

User Manual for Leica 7x24 Rangemaster CRF 2800.COM Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Leica 7x24 Rangemaster CRF 2800.COM Laser
- Product category: Laser Rangefinders Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Laser Rangefinders
|
User manual for the Leica 7x24 Rangemaster CRF 2800.COM Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description The Rangefinder Just Got Connected with the Leica Rangemaster CRF 2800.COM Read More suwqysbawxtsubrdyxuqarvuzayexbccexcx Leica updates their venerable line of ranging devices with the 7x24 Rangemaster CRF 2800.COM Laser Rangefinder.Keeping up with technological advancements and the needs of their hunters, the 2800.COM gets a range boost to an impressive 2800 yards and adds Bluetooth connectivity to Android and iOS devices running the Leica Hunting app, or Kestrel 5700 Elite weather meters. This connectivity allows users to program their rangefinder to fit their personal preference, while benefiting from real-time environmental information. Combining this data with a pre-programmed ammunition load, a metered range and angle relative to the target, it is put through the app's ballistic computer and displays adjustment recommendations to help your first-shot accuracy in either MOA/Mil turret adjustments, inches/centimeters, or an adjusted range distance.A simple one-button interface provides critical ease of use and a red LED display clearly shows the ranging information in your line of sight in an uncluttered layout. An ambient light sensor can automatically adjust the display brightness so you'll always be able to clearly see the information without overloading your vision, or you can manually select from one of five intensity levels. Designed for durability, the housing is made of a lightweight and durable carbon-fiber-reinforced ABS plastic, and weighing in at under seven ounces, the Rangemaster CRF will be a valuable addition to your kit. - Laser Rangefinder
-
- Class 1 eye safe infrared (IR)
- Display distance in yards/inches or centimeters/meters
- Integrated inclinometer measures relative angle to target
- Beam divergence of approximately 0.5 x 1.25 mrad
- Maximum measuring time of approximately 0.3 seconds
- FDA Class 1 eye-safe IR laser
- Metering range from 10 to 2800 yards
- Metering accuracy of ±0.5 yards from 10 to 200 yards, ±1 yard from 200 to 400 yards, ±2 yards from 400 to 800 yards, and ±0.5% past 800 yards
- Between 10 and 200 yards, distance is displayed to the tenth of a yard, ideal for bow hunters/archers
- Spot and continuous scan mode
- Runs on one included CR2 battery
- Technology
-
- Integrated Bluetooth 4.1 connectivity to Android/iOS smartphones running the Leica Hunting app or a Kestrel 5700 Elite weather meter
- Built-in ABC ballistic program compiles data for angle of incline, temperature, barometric pressure, rifle being used, and ammunition load for precise hold over/under with displayed adjustments for improved shot accuracy in MOA/inches, centimeters/MIL, or distance
- When connected with the Kestrel 5700 Elite with Applied Ballistics, the Rangemaster will display both elevation and windage corrections as far as the rangefinder can read
- Equivalent Horizontal Range (EHR): An algorithm that uses distance, angle, and other environmental factors to calculate and display an adjusted range
- ABC and EHR systems accurate to 1200 yards
- Twelve pre-programmed ballistic curves based on popular loads; output values available at ranges from 10 to 875 yards
- Create custom curves through the free smartphone app; ballistic curves available from 10 to 1000 yards
- When using the optional Kestrel 5700 Elite weather meter, ballistic curves are available from 10 to 2800 yards
- Optical Performance
-
- 7x power magnifies the view to ensure proper identification and reticle-target alignment
- 24mm objective keeps the form factor small to easily fit in the hand and allowing for one-handed operation
- Compact roof prisms provide the room required for the optics and rangefinder to fit in the easy-to-hold housing
- P40 phase-correction prism coating improves color rendition and contrast
- Hydrophobic AquaDura coating on outer lenses protect surfaces and cause water and oil to bead off lenses for easier cleaning and clearer vision in bad weather
- 347' field of view at 1000 yards
- 13mm eye relief
- 3.4mm exit pupil
- Use and Handling
-
- Convenient single-button activation and operation
- In-view LED displays in red for easy viewing in all light conditions
- Options to display angle, temperature, and pressure
- Ambient light meter with automatic brightness adjustment, or five manual settings
- ±3.5 dioptric correction enables reticle to be properly focused
- Fold-down rubber eyecup for comfortable use with or without eyewear
- Construction Details
-
- Strong and impact-resistant carbon-fiber-reinforced ABS plastic housing
- Ergonomically designed for comfortable one-handed use
- Nitrogen-filled to be resistant to internal fogging in extreme conditions
- IPX8-rated, waterproof, and submersible to 3.3 feet
- Broad -4 to 131°F operating temperature
- Lightweight design is under 7 ounces with battery
In the Box Leica 7x24 Rangemaster CRF 2800.COM Laser Rangefinder CR2 Battery Carrying Strap Cordura Nylon Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 7x24 Rangemaster CRF 2800.COM Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Leica 7x24 Rangemaster CRF 2800.COM Laser Rangefinder can be downloaded in PDF format at the link stated below.
Technical parametersLeica 40506 Specs | Laser Type | Class 1 Eye Safe | Metering Range | 10 to 2800 yd / 9.14 to 2560.32 m | Accuracy | 10 to 200 yd / 9.14 to 182.88 m:
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Leica 7x24 Rangemaster CRF 2800.COM Laser Rangefinder
Subject: Hi | Date: 08.07.2022 11:49:46 | Name: Stevo | I have put in a new cr2 battery but it still does not want to range,is ther someone who can help me with this? | Post reply |
Subject: Connectivity Issue | Date: 07.06.2021 22:34:00 | Name: Ed | I'm experiencing the same issue, has anyone gotten back to you with a solution yet?
Thanks for your help | Post reply |
Subject: Connectivity issues | Date: 08.09.2020 01:35:18 | Name: Stuart | Hi Leica team,
I have contacted Leica about this issue but I thought I would extend my help to you to see if you are aware of this issue or indeed you know how to resolve this.
I am in the process of buying the Leica Rangemaster CRF 2800.COM however I am concerned about the bluetooth connectivity issue. I have read a few posts (see below) about people experiencing issues with the Rangemaster going into sleep mode which then disconnects you from the Kestrel 5700 Elite. Please read the below post from people who recently purchased your product. I want to buy this product but won't until I know this issue can be addressed and once I can find a fix I will be buying the Kestrel 5700 Elite.
"Recently purchased a Leica 2800.com and Kestral 5700 Elite
I’ve been playing around with it on the porch since it’s been too wet in North Texas to do much
Out in the woods.
My gripe is the Leica, while paired with the Kestral, goes to sleep in spite of continually ranging and won’t show a solution in the Leica viewfinder. The Kestral and Leica are right next to each other. There doesn’t appear to be a way to input an “awake time” in the Leica like there is in the Kestral.
Am I doing something wrong?
I just find it irritating because the whole idea was to get firing solutions quickly using the paired range finder and Kestral"
"Mine does the same thing. I don't know of any way to keep it from timing out either."
"Is there a sleep time or auto off feature?"
Thanks in advance,
Cheers - Stu :) | Post reply |
Subject: Connectivity issues | Date: 08.09.2020 01:34:01 | Name: Stuart | Hi Kestrel team,
I have contacted Leica about this issue but I thought I would extend my help to you to see if you are aware of this issue or indeed you know how to resolve this.
I am in the process of buying the Leica Rangemaster CRF 2800.COM however I am concerned about the bluetooth connectivity issue. I have read a few posts (see below) about people experiencing issues with the Rangemaster going into sleep mode which then disconnects you from the Kestrel 5700 Elite. Please read the below post from people who recently purchased your product. I want to buy this product but won't until I know this issue can be addressed and once I can find a fix I will be buying the Kestrel 5700 Elite.
"Recently purchased a Leica 2800.com and Kestral 5700 Elite
I’ve been playing around with it on the porch since it’s been too wet in North Texas to do much
Out in the woods.
My gripe is the Leica, while paired with the Kestral, goes to sleep in spite of continually ranging and won’t show a solution in the Leica viewfinder. The Kestral and Leica are right next to each other. There doesn’t appear to be a way to input an “awake time” in the Leica like there is in the Kestral.
Am I doing something wrong?
I just find it irritating because the whole idea was to get firing solutions quickly using the paired range finder and Kestral"
"Mine does the same thing. I don't know of any way to keep it from timing out either."
"Is there a sleep time or auto off feature?"
Thanks in advance,
Cheers - Stu :) | Post reply |
