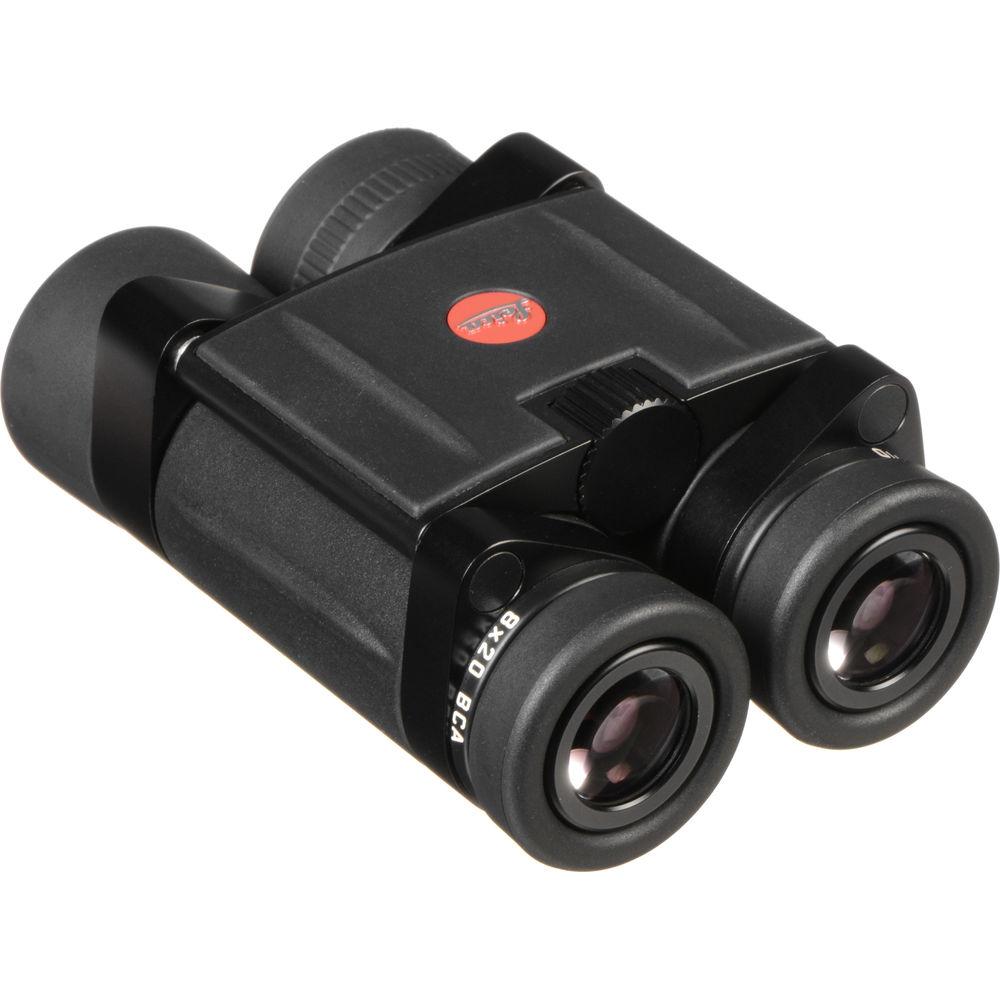

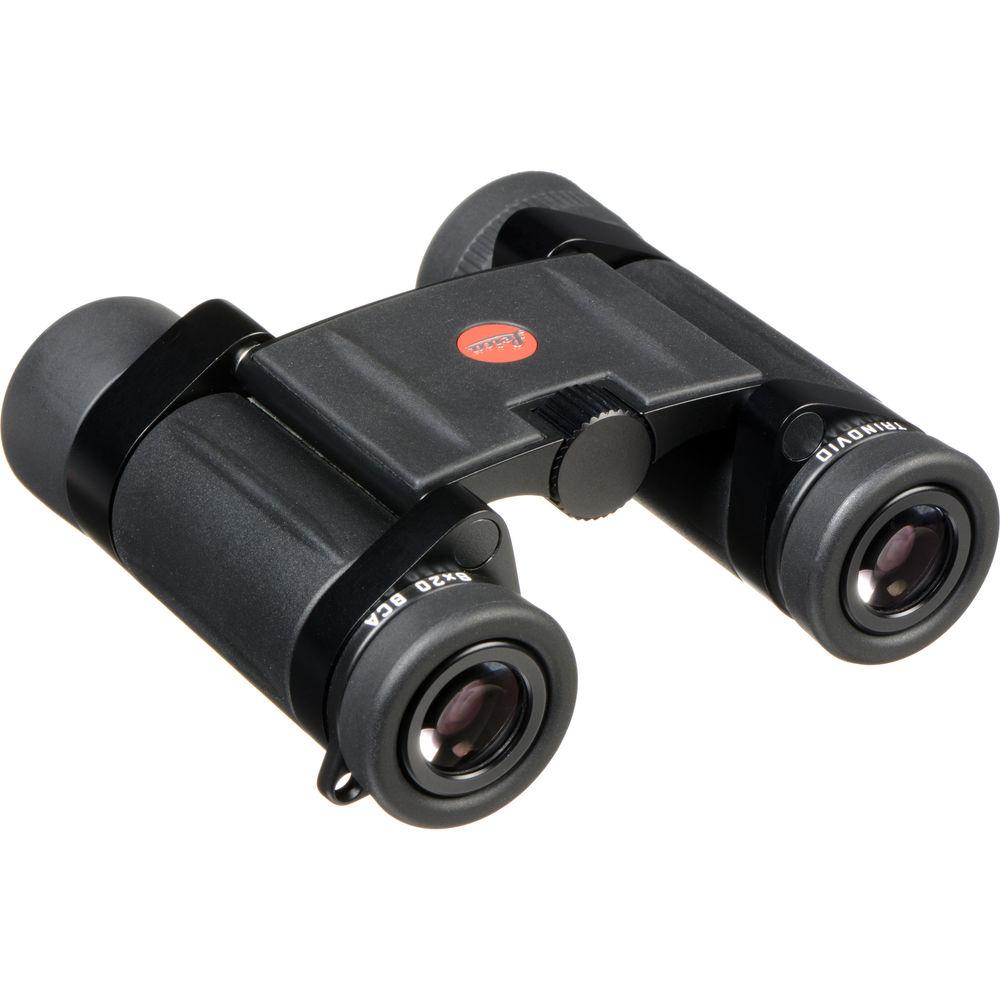

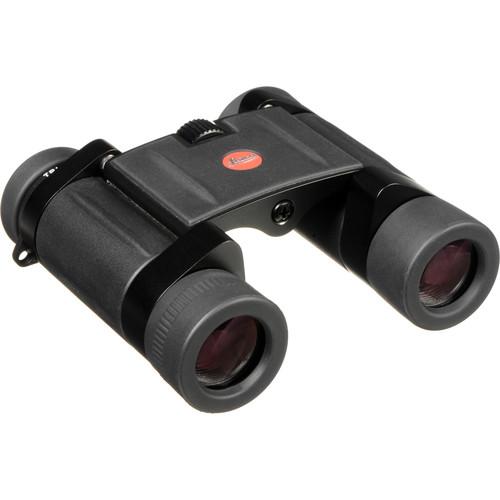

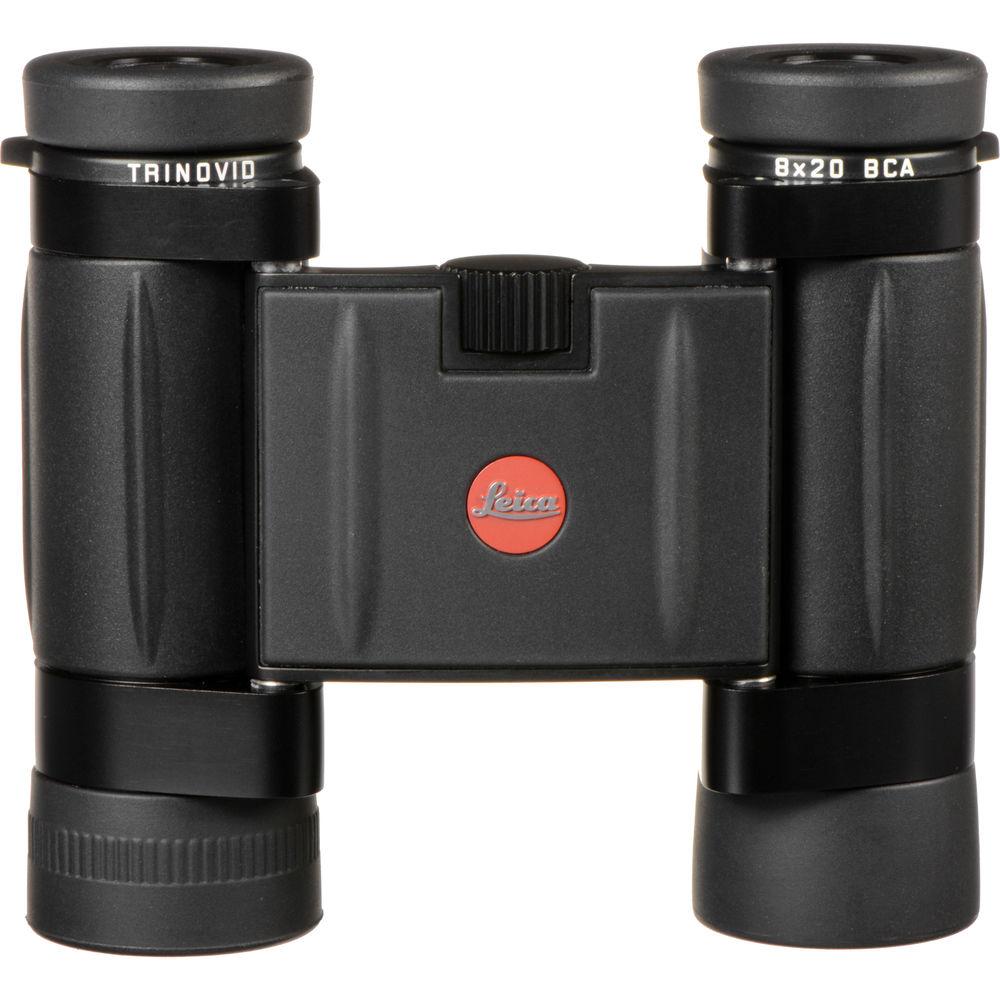

User Manual for Leica 8x20 Trinovid BCA Binocular Click to enlarge the picture
Contents of the user manual for the Leica 8x20 Trinovid BCA Binocular
- Product category: Binoculars Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Binoculars
 |
User manual for the Leica 8x20 Trinovid BCA Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More srwbtvuddyfsweztdv Inspired by their iconic full-sized counterpart, the Leica 8x20 Trinovid BCA Binocular is outfitted with a moderate magnification and small objectives to deliver the performance users have come to expect from the brand, but in a highly portable and easy-to-carry design.It is designed with a combination of phase-corrected BAK4 roof prisms, the proprietary HighLux system, and HDC fully multi-coated optics to produce bright and clear color-neutral images, while fitting comfortably in the hand for long, fatigue-free glassing sessions. The HDC coatings add abrasion-resistance to protect the exterior lens surfaces, and the lenses are also treated with AquaDura coatings which make it easy to clean dirt, grime, oils, sap, and fingerprints without leaving residues that can interfere with views.Designed to easily fit in a pocket, pack, or purse, the binocular is made with a dual-hinge system that allows the optical tubes to fold and tuck under the closed bridge to ensure the smallest form factor when fully closed. This also provides a wide interpupillary distance adjustment for easier use by those with narrow faces — like children and adolescents. Helping to reduce the weight to a mere 8 ounces is an aluminum alloy chassis that is wrapped in a protective slip-resistant armor for a more comfortable feel in the hand. Light, compact, and easy-to-use while delivering bright and clear images, the Trinovid BCA is made to be your constant companion on the trail, at the stadium, or sightseeing around the world. - Optical Performance
-
- Moderate 8x power magnifies views while preserving a generous field of view
- Compact 20mm objective lenses ensure slim optical tubes to maintain a compact form
- BAK4 roof prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- P40 phase-correcting prism coatings increase light transmission while improving contrast and clarity
- HDC fully multi-coated system has abrasion-resistant and anti-reflection properties to protect exterior lens surfaces, and improve light transmission and contrast
- HighLux-System (HLS) maximizes light throughput to improve color rendition and contrast
- Hydrophobic AquaDura coating on external optical surfaces allows dirt, dust, and fingerprints to be removed easily
- 340-foot field of view at 1000 yards
- Use and Handling
-
- Closed-bridge/dual-hinge configuration provides a sturdy platform for the internal focusing mechanism
- Textured low-profile center focusing wheel helps to maintain an overall compact form
- Wide 32-74mm interpupillary distance range accommodates use by a wide variety of users — especially those with narrow faces like children and adolescents
- ±3.5 right-eye dioptric correction allows user to compensate for optical prescription
- Twist-up rubber eyecups for comfortable use with or without eyewear
- 14mm eye relief
- 2.5mm exit pupil
- Construction Details
-
- Dual-hinge design allows optical tubes to fold under the bridge for an ultra-compact form factor when closed to take up less space in packs and pockets
- Lightweight and durable aluminum alloy chassis
- Protective rubber armor provides a slip-resistant grip
- Raised grip details enhance grip strength and security
- Water-resistant to splashing water or rain
- Compact 3.8x3.6" form factor is easy to pack and carry
- Light 8-ounce weight
In the Box Leica 8x20 Trinovid BCA Binocular Cordura Case Neck Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 3.5mbsrwbtvuddyfsweztdv Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 8x20 Trinovid BCA Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 40342 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 20 mm | | Angle of View | 6.5° (actual) | | Field of View | 340.0' @ 1000 yd / 112.9 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 14.0 mm | | Interpupillary Adjustment | 32 to 74 mm / 1.3 to 2.9" | | Dioptric Correction | ±3.5 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 3.8 x 3.6 x 1.5" / 9.6 x 9.2 x 3.7 cm | | Weight | 8.3 oz / 235.0 g | | | | Package Weight | 0.965 lb | | Box Dimensions (LxWxH) | 6.15 x 4.4 x 3.55" |
